Slit Edge Wide Flange 316ti Stainless Steel H Beams HR 100x50mm JIS

  • Slit Edge Wide Flange 316ti Stainless Steel H Beams HR 100x50mm JIS
  • Slit Edge Wide Flange 316ti Stainless Steel H Beams HR 100x50mm JIS
  • Slit Edge Wide Flange 316ti Stainless Steel H Beams HR 100x50mm JIS
Place of Origin China(mainland)
Brand Name TISCO
Certification SGS,BV
Model Number Stainless Steel H Beam
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details in bundle, plastic bags, thin film, wooden pallet, standard seaworthy export packing or as customer demands
Delivery Time 10-15 days after deposit
Payment Terms L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard ASTM, ANSI, GB, DIN, JIS, EN, ISO. Material Alloy Steel /carbon Steel /stainless Steel
Application Building Construction, Construction Structure Processing Service Bending, Welding, Decoiling, Punching, Cutting
Edge Mill Edge, Slit Edge Length 1-12m Or As Customer Request
Size 100*50-700*300mm Flange Width 50-400mm
Flange Thickness 4.5-23mm Web Width 50-300mm
Web Thickness 5-16mm Surface Treatment Hot Dip Galvanized, Painting Or Black.
High Light

100x50mm Stainless Steel H Beams

,

316ti Stainless Steel H Beams

,

JIS h shaped metal bar
Leave a Message
Product Description

Wide Flange Stainless Steel H Beam Structural Steel H Shape HR 100 X 50mm For Construction





Our Advantage:



1. Honest business with competitive price

2. Professional service on export process

3. Good payment term

4. Good reputation en every market

5. Quality assurance

6. Always a pre-production sample before mass production

7. Always final inspection before mass production





Product Description:



1. H beam Grade: 304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,202
2. H beam Standard: JIS, GB, ASTM, EN, DIN
3. Dimensions:Flange width:50mm-300mm;Flange thickness:8mm-28mm;Web width:100mm-900mm;Web thickness:6mm-

    16mm
4. Length:9m, 10m, 12m or as your requirement.
5. Technique: hot rolled

6. If bear the same press, then the H Beam can save 10%-15% material.
7. You can have more designs of the rooms if you use H Beam than concrete.
8. The H Beam is light than the concrete, so it is easy to carry and cut the cost.
9. The Building will be more stable, if it is built by H Beam, especially the places where earthquake usually happened.
10. The H Beam is environmentally friendly and reduce the Nuisance dusts.
11. The H Beam can save the real working time, because it is easy to carry.





Stainless Steel H Beam Specification:



Model Weight Model Weight
100*50*5*7 9.54 344*354*16*16 131
100*100*6*8 17.2 346*174*6*9 41.8
125*60*6*8 13.3 350*175*7*11 50
125*125*6.5*9 23.8 344*348*10*16 115
148*100*6*9 21.4 350*350*12*19 137
150*75*5*7 14.3 388*402*15*15 141
150*150*7*10 31.9 390*300*10*16 107
175*90*5*8 18.2 394*398*11*18 147
175*175*7.5*11 40.3 400*150*8*13 55.8
194*150*6*9 31.2 396*199*7*11 56.7
198*99*4.5*7 18.5 400*200*8*13 66
200*100*5.5*8 21.7 400*400*13*21 172
200*200*8*12 50.5 400*408*21*21 197
200*204*12*12 72.28 414*405*18*28 233
244*175*7*11 44.1 440*300*11*18 124
244*252*11*11 64.4 446*199*7*11 66.7
248*124*5*8 25.8 450*200*9-14 76.5
250*125*6*9 29.7 482*300*11*15 115
250*250*9*14 72.4 488*300*11*18 129
250*255*14*14 82.2 496*199*9*14 79.5
294*200*8*12 57.3 500*200*10*16 89.6
300*150*6.5*9 37.3 582*300*12*17 137
294*302*12*12 85 588*300*12*20 151
300*300*10*15 94.5 596*199*10*15 95.1
300*305*15*15 106 600*200*11*17 106
338*351*13*13 106 700*300*13*24 185
340*250*9*14 79.7





Size Details For Different Types of Stainless Steel Channels:

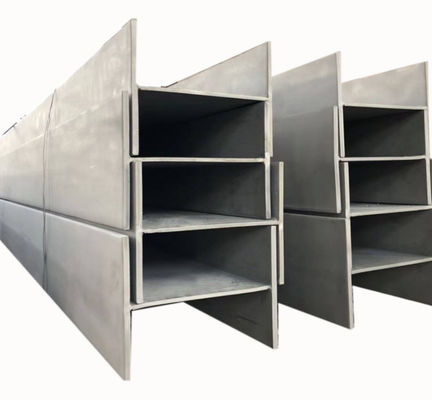

Slit Edge Wide Flange 316ti Stainless Steel H Beams HR 100x50mm JIS 0







Product Show:

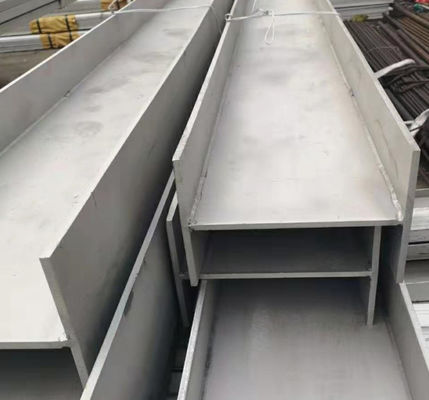

Slit Edge Wide Flange 316ti Stainless Steel H Beams HR 100x50mm JIS 1



Application Show:



Widely used in various building structures, bridges, vehicles, brackets, machinery, etc.,

For example, the industrial structure of the steel bearing bracket,steel piles and underground engineering supporting structure, petro chemical and powerand other industrial equipment structure, shipbuilding, machinery manufacturing frame structure,train, car,tractor beam bracket,port conveyors,high speed shutter stents.



Slit Edge Wide Flange 316ti Stainless Steel H Beams HR 100x50mm JIS 2
