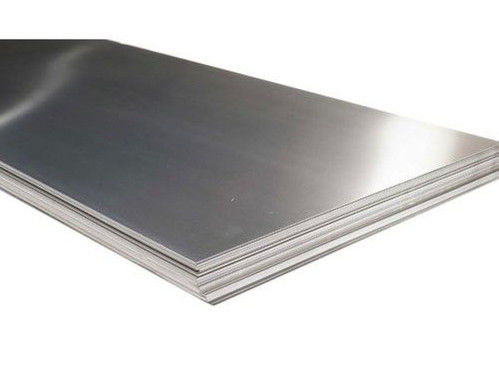

317 0.2mm Rolled Stainless Steel Sheets UNS Standard

Place of Origin Made In China
Brand Name Tisco
Certification ISO
Model Number Stainless Steel Coil
Minimum Order Quantity 2 Tons
Price Negotiable
Packaging Details in bundle, plastic bags, thin film, wooden pallet, standard seaworthy export packing or as customer demands
Delivery Time 15 days after deposit
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material 317 Stainless Steel Technique Cold Rolled /Hot Rolled
Standard ASTM,AISI,UNS,JIS,GB Surface NO.1,2B,NO.4,BA Or According To Customer Requirement
Thickness 0.2mm~80mm Width 30mm~1550mm Or Required
Length 1220mm, 1250mm, 3000mm Or Required Application Printing And Dyeing Equipment And Materials
High Light

317 Rolled Stainless Steel Sheets


UNS Standard Rolled Stainless Steel Sheets


0.2mm Rolled Stainless Steel Sheets

Leave a Message
Product Description

317 stainless steel / UNS s31700 / 0cr19ni13mo3

316 stainless steel plate and 317 stainless steel plate are molybdenum containing stainless steel, of which the molybdenum content of 317 stainless steel is slightly higher than that of 316 stainless steel. Due to the molybdenum in the steel, the overall performance of the steel is better than 310 and 304 stainless steel. Under high temperature conditions, 316 stainless steel has a wide range of applications when the concentration of sulfuric acid is lower than 15% and higher than 85%.

317 (18cr-12ni-3.5mo) stainless steel has better pitting corrosion resistance than 316 steel. 317 stainless steel is used for printing and dyeing equipment and materials.



Product Description:


Product Name

Stainless Steel Sheets/Plate Grade 317


as required


30mm~1550mm or as required


0.2mm~80mm or as required




Hot rolled / cold rolled

Surface Treatment

2B, BA, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc

Thickness Tolerance

±0.01mm~ ±0.25mm


317 stainless steel


Printing and dyeing equipment and materials.


1 ton , We can accept sample order.

Shipment Time

Within 15-20 workdays after receiving deposit or workable L/C

Export Packing

Waterproof paper, and steel strip packed.
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required


250,000 tons/year





Chemical Composition:

Grade C Si Mn Cr P S Mo N
≤% ≤% ≤% % ≤% ≤% % ≤%
317 0.08 1.00 2.00 16-18 0.045 0.030 3.0-4.0 0.1






Physical Properties :

Density Thermal Conductivity 68°F (20°C)
0.285 lbs/in3 8.1 BTU/(hr x ft x °F)
7.89 g/cm3 14 W/(m x K)
Specific Heat Melting Range
0.12 BTU/lb-°F (32 – 212°F) 2540 – 2630°F
502 J/kg-°K (0 – 100°C) 1390 – 1440°C
Modulus of Elasticity Electrical Resistivity
29.0 x 106 psi 33.5 Microhm-in at 68°C
200 GPa 85.1 Microhm-cm at 20°C







Mechanical Properties:

Typical Values at 68°F (20°C)


Yield Strength Ultimate Tensile Elongation Hardness
0.2% Offset Strength in 2 in.
psi (min.) (MPa) psi (min.) (MPa) % (min.) (max.)
30,000 205 75,000 515 40 95 Rockwell B






Standard Inventory Specifications:

UNS S31700 - 317 ASTM A167
ASTM A 240 ASME SA 240
ASTM A182








●Good corrosion resistance

●Good mechanical properties

●Ease of fabrication

●Produces stronger welds due to lower carbon content

●Resists the attack of sulfuric acid compounds







317 0.2mm Rolled Stainless Steel Sheets UNS Standard 0





Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.


Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.


Q3. What are the advantages of your company ?

A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.


Q4: What is the terms of packing?

A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.


Q5:What is your delivery time?

A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.


Q6. Can you provide sample ?

A7: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.


Q7. How many coutries you already exported ?

A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
