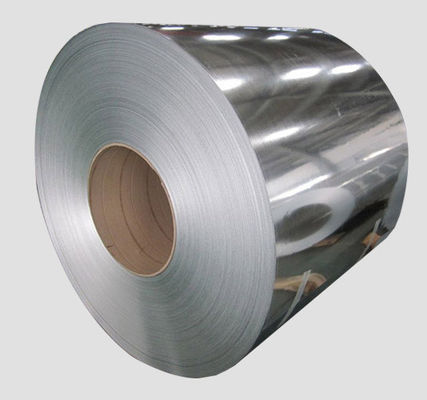

ASTM A653 A653M G40 G60 G90 Hot Dipped Galvanised Coil Q235

Place of Origin China
Brand Name Hengdali,Baosteel
Certification SGS,BV
Model Number Galvanize steel coil
Minimum Order Quantity 1 Tons
Price Negotiable
Packaging Details Plastic bags, thin film, standard seaworthy export packing or as customer demands
Delivery Time 15 days after deposit
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Q195 Q235 Or According To Your Request Technique Hot Dip Galvanized
Standard AISI, ASTM Grade Type A,Type B, Type C
Thickness 0.12-6.0mm Width 20-1250mm Or Required
Surface Zero Spangle / Regular Spangle / Big Spangle Application Roofing ,Doors, Household AppliancesAuto Panel; Interior Decorative Panel; Carriage Panel Etc.
High Light

astm a653 hot dipped galvanised coil

,

astm a653m hot dipped galvanised coil

,

q235 hot dipped galvanised coil

Leave a Message
Product Description
Product Name: Hot-dipped galvanize coil
Standard: ASTM A653/A653M
Material: Q235 Q345 or according to your request
Grade: Type A, Type B, Type C
Coil weight: 3-10 ton or according to your request
Thickness: 0.12mm-6.0mm
Width: 20mm-1250mm or according to your request
Zinc coating: G40,G60,G90 Or according to your request
Surface Structure: Zero Spangle / Mini Spangle / Regular Spangle / Big Spangle
Surface Treatment: Passivation/skin pass/non-oiled/oiled
Technique: Hot dip galvanized
Performance: Durable, anti-fingerprint
MOQ: 1 ton per size
Supply Ability: 5000t/month
Delivery Time: Within 15 days after receiving the pre-payment.
Export Packing: Standard Export Seaworthy Package.
Payment Terms: L/C at sight, T/T or Negotiable.









Galvanized steel is defined as a carbon steel sheet coated with zinc on both sides. There are two main processes used to produce galvanized steel: continuous hot dipping and electro-galvanizing. The hot dipping process consists of passing the steel through a bath of molten zinc, while the electro-galvanizing process consists of the application of zinc through electrolytic disposition. The result is a layer of zinc tightly adhering to the base metal through an iron-zinc bonding layer.



Most important, our hot-dipped galvanized steel coil and sheet service capabilities include slitting,cutting to length, blanking, degreasing and brushing, stretcher leveling and metallurgical support.





Zinc coating is one of the most effective and economical methods of protecting bare steel from a corroding environment. The zinc not only serves as a barrier between the steel and the environment, but it will also sacrifice itself to protect the underlying steel sheet. Sacrificial or galvanic protection occurs when two dissimilar metals are in contact and coupled with water and oxygen. Zinc corrodes preferentially to the iron in steel. This protection prevents corrosion of the steel at areas not covered with zinc. Thus, the spread of corrosion from cut edges, drill holes, etc. is minimized.





Coating Designation(both sides)



Standard ASTM
G40 120g/m² G60 180g/m² G90 275g/m²
G115 350g/m² G165 500g/m² G185 560g/m²







Advantages of Galvanized Steel

The main advantage of galvanized steel is its corrosion resistance. The zinc coating serves as a barrier between the steel and the environment and will sacrifice itself in order to protect the underlying steel; Meaning the zinc will degrade much sooner than the steel itself. Additionally, it offers good processability and formability.





Galvanized Steel Coil Material Types

  • Commercial Steel (CS Types A, B, and C)
  • Forming Steel (FS Types A and B)
  • Deep Drawing Steel (DDS Types A and C)
  • Extra Deep Drawing Steel (EDDS)
  • Structural Steel (SS) – further designated by Grades (33,37,40,50,80)
  • High Strength Low Alloy Steel (HSLAS)





Typical Galvanized Steel Coil Applications:

  • ♦Exterior building products
  • Ductwork
  • HVAC products
  • Flashing
  • Roofing
  • Doors
  • Sashes









Manufacturing process:

ASTM A653 A653M G40 G60 G90 Hot Dipped Galvanised Coil Q235 0

ASTM A653 A653M G40 G60 G90 Hot Dipped Galvanised Coil Q235 1

ASTM A653 A653M G40 G60 G90 Hot Dipped Galvanised Coil Q235 2



ASTM A653 A653M G40 G60 G90 Hot Dipped Galvanised Coil Q235 3

ASTM A653 A653M G40 G60 G90 Hot Dipped Galvanised Coil Q235 4













FAQ:



Q1. What are your company's main products ?

A1: Our main products are stainless steel & Galvanize coils, plate/sheet, round/square pipe etc.



Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q3. What are the advantages of your company ?

A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.



Q4: What is the terms of packing?

A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.



Q5:What is your delivery time?

A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.



Q6. Can you provide sample ?

A7: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.



Q7. How many coutries you already exported ?

A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India,Thailand, Vietnam, South Korea etc.
