3pe Structural Erw Carbon Steel Pipe 0.8mm Thickness

  • 3pe Structural Erw Carbon Steel Pipe 0.8mm Thickness
Place of Origin China
Brand Name Bao Steel/ TISCO/JISCO/HDL
Certification SGS,BV
Model Number Carbon Steel Pipe/ Tube
Minimum Order Quantity 2 Tons
Price Negotiable
Packaging Details Standard seaworthy export packing or as customer demands
Delivery Time 15 days after deposit
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Q235 Carbon Steel Dia. 15-1500mm
Thickness 0.8-26.5mm For ERW, 1.25-50mm For SMLS Length 5-12m Or As Required
Technique Cold Drawn/ Hot Rolled Standard GB/T700
Surface 3PE/Fusion Bond Expoxy Coating / Black Oil Coating As Per Customer's Requirement Application Oil And Gas, Chemical, Power Generation, Heat Transfer Etc.
High Light

structural erw carbon steel pipe

,

erw carbon steel pipe 0.8mm thickness

,

3pe 0.8mm thickness carbon steel tubing
Leave a Message
Product Description

Q235 steel is an ordinary carbon structural steel with a yield value of about 235 MPa, and the yield value will gradually decrease with the increase of steel thickness. Because the carbon content of Q235 steel will be moderate and its comprehensive performance will be better, it is widely used in the construction of plants, bridges, ships, vehicles and so on.

Q235 steel is a Chinese GB standard plain carbon structural steel, it provided in four quality grades: Q235A, Q235B, Q235C and Q235D. 3PE is a coating that usually used to protect carbon steel pipe and prolong their service life.











Product Name Carbon Steel Tube/Pipe
Dia. 15-1200mm
Length 3m -12m or as required
Thickness 0.8-26.5mm for ERW, 1.25-50mm for SMLS
Standard GB,ASTM,DIN,BS,JIS
Technique Cold / Hot rolled
Surface Treatment 3PE/Fusion bond Expoxy Coating / Black Oil Coating as per customer's requirement
Thickness Tolerance ±0.01mm~ ±0.25mm
Material Q235
Application Bridges, vehicles, ships, buildings, pressure vessels, etc.
MOQ 1 ton , We can accept sample order.
Shipment Time Within 15-20 workdays after receiving deposit or workable L/C
Export Packing Waterproof paper, and steel strip packed.
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
Capacity 250,000 tons/year













Chemical Composition:

Grade C Si Mn P S
% ≤% % ≤% ≤%
Q235A 0.14-0.22 0.30 0.30-0.65 0.045 0.050
Q235B 0.12-0.20 0.30 0.30-0.70 0.045 0.045
Q235C ≤0.18 0.30 0.35-0.80 0.040 0.040
Q235D ≤0.17 0.30 0.35-0.80 0.035 0.035












Physical properties :

Tensile strength (σb/MPa) 370-550
Yield strength (N/mm2) 235(thickness≦16mm)
225(thickness>16-40mm)
215(thickness>40-60mm)
205(thickness>60-100mm)
195(thickness>100-150mm)
185(a>150-200mm)
Elongation (δ5/%) ≥26(thickness≦16mm)
≥25(thickness>16-40mm)
≥24(thickness>40-60mm)
≥23(thickness>60-100mm)
≥22(thickness>100-150mm)
≥21(thickness>150-200mm)
Elastic modulus(E/Gpa) 200-210
Poisson's ratio( ν) 0.25~0.33
Linear expansion coefficient of material α(1/°C) 1.20E-05













Q235 Steel Equivalent Standard:

GB ASTM DIN JIS NF BS ISO
Q235A Steel Gr.D (σS230MPa) Ust37-2 SS400   080A15 (σS235MPa) E235B (σS235MPa)
RSt37-2 SM400A (σS245MPa)
Q235B Steel Gr.D (σS230MPa) S235JR SS440 S235JR 080A15 E235B (σS235MPa)
S235JRG1 S235JRG1 S235JR
S235JRG2 SM400A (σS245MPa) S235JRG2 (σS185MPa) S235JRG1
(σS235MPa) S235JRG2 (σS185MPa)
Q235C Steel Gr.D (σS230MPa) S235JO (σS235MPa) SM400A S235JO (σS235MPa) 080A15 E235C (σS235MPa)
SM400B (σS245MPa) S235JO (σS235MPa)
Gr.65 (σS240MPa)
Q235D Steel Gr.D (σS230MPa) S235J2G3 SM400A (σS245MPa) S235J2G3 S235J2G3 E235D (σS235MPa)
S235J2G4 (σS235MPa) S235J2G4 (σS235MPa) S235J2G4 (σS235MPa)

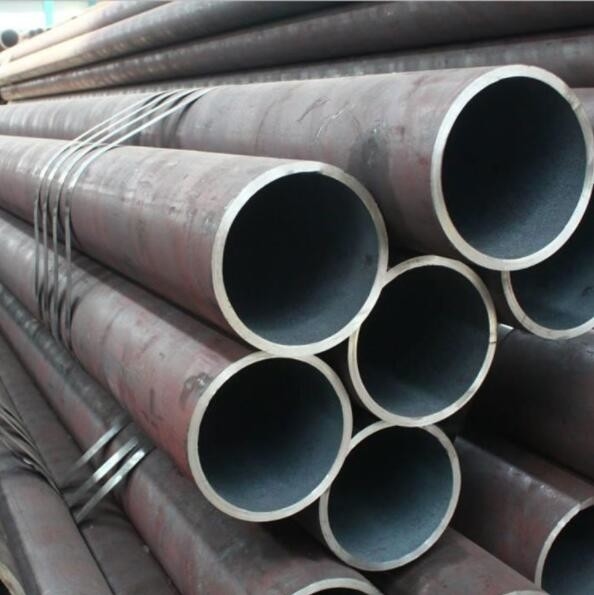

3pe Structural Erw Carbon Steel Pipe 0.8mm Thickness 0
