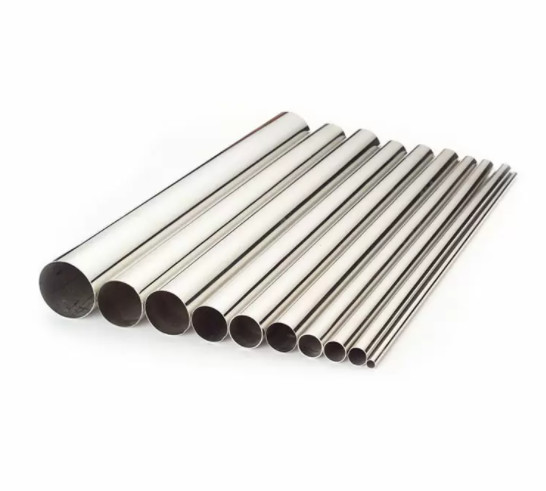

2 NPS Stainless Steel Seamless Pipe Schedule 160 Stainless Steel 316L Pipe

  • 2 NPS Stainless Steel Seamless Pipe Schedule 160 Stainless Steel 316L Pipe
  • 2 NPS Stainless Steel Seamless Pipe Schedule 160 Stainless Steel 316L Pipe
  • 2 NPS Stainless Steel Seamless Pipe Schedule 160 Stainless Steel 316L Pipe
Place of Origin China
Brand Name TISCO
Certification SGS,BV
Model Number Stainless Steel Tube
Minimum Order Quantity 2 Tons
Price negotiation
Packaging Details in bundle,plastic bags,thin film,wooden pallet,standard seaworthy export packing or as customer demands
Delivery Time 15 days after deposit
Payment Terms L/C, T/T, D/P, Western Union
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel Standard JIS, AiSi, ASTM, GB, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, Etc
Tube Size OD(4-190mm)*WT(0.5-15mm) Pipe Size OD(16-914mm)*WT(2.0-50mm)
Welding Line Type Seamless Processing Service Cutting
Surface Polishing Technique Hot Rolled , Cold Rolled , Extrusion
Ends Plain Ends Or Beveled Ends Application Industry/Construction
High Light

Stainless Steel Seamless Pipe 316L

,

Schedule 160 stainless steel 316l pipe

,

Schedule 160 stainless steel 316l pipes
Leave a Message
Product Description

Stainless Steel Seamless Pipe , 2.375 OD, (2 NPS) Schedule 160, 316/316L Stainless Steel Pipe, Seamless





Product Description:

316 Stainless Steel offers improved corrosion and pitting resistance as well as improved strength at higher temperatures then the 304 alloy. It can be formed and readily welded by all methods and is a non-rusting, non-magnetic, Chrome-Nickel Alloy.

Note: Pipe sizes can be confusing as the listed size has little or no resemblance to the actual size of the pipe and in most cases listed pipe size is closer to the "inside diameter" of the pipe. While tubes are identified by the actual Outside Diameter (OD) and Wall Thickness (W), pipe sizes are nominal and wall thickness is identified by what is known as a Schedule. Please refer to actual sizes of OD, ID, and Wall.

  • Material: Stainless Steel
  • Alloy: 316/316L
  • Shape: Pipe
  • Pipe Size (NPS): 2.375 OD (2 inch NPS)
  • Pipe Schedule: Schedule 160
  • Outside Diameter: 2.375
  • Inside Diameter: 1.687
  • Wall Thickness: 0.344
  • Length: Varies
  • Wall Type: Seamless
  • Finish: Unpolished (Mill)
  • Weight per Foot: 7.462 lbs



Product Surface:



2B The surface brightness and flatness of no2B is better than no2D. then through a special surface treatment to improve its mechanical properties,No2B could nearly satisfy comprehensive uses.
No.1 Polished with abrasive belt of grit#100-#200, have better brightness with discontinuous coarse stria, used as inner and external ornaments for building, electrical appliances and kitchen utensils etc.
No.4 Polished with abrasive belt of grit #150-#180,have better brightness with discontinuous coarse stria, but thinner than No3, are used as bathtub buildings inner and external ornaments electrical appliances kitchen utensils and food processing equipment etc.
HL Polished with abrasive belt of grit #150-#320 on the NO.4 finish and has continuous streaks, mainly used as buildings ornaments elevators, door of building, frontal plate etc.
BA Cold rolled, bright annealed and skin-passed, the product have excellent brightness and good reflexivity like mirror, kitchen apparatus, ornament etc.
8K The product have excellent brightness and prefer reflexivity can to be the mirror.





Chemical Composition:



Element Type 316 (%) Type 316L (%)
Chromium 16.0 min. –18.0 max. 16.0 min.–18.0 max.
Nickel 10.0 min. –14.0 max. 10.0 min.–14.0 max.
Molybdenum 2.00 min.–3.00 max. 2.00 min.–3.00 max.
Carbon 0.08 0.030
Manganese 2.00 2.00
Phosphorous 0.045 0.045
Sulfur 0.03 0.03
Silicon 0.75 0.75
Nitrogen 0.1 0.1
Iron Balance Balance





FAQ:



Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.



Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q3: What is the terms of packing?

A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.



Q4:What is your delivery time?

A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.





Q5. What are the advantages of your company ?

A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.



Q6. How many coutries you already exported ?

A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q7. Can you provide sample ?

A7: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
