Home > products > Stainless Steel Pipe > Tp304l / 316l Bright Annealed Tube For Precision Instruments

Tp304l / 316l Bright Annealed Tube For Precision Instruments

Product Details

Place of Origin: Shandong China

Brand Name: ZGMC

Certification: ISO TUV SGS BIS CE

Model Number: Stainless Steel Tube

Payment & Shipping Terms

Minimum Order Quantity: 3Tons

Price: negotiation

Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.

Delivery Time: 5-15days depend on the quantity

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA

Supply Ability: 5000Tons Per Months

Get Best Price
Highlight:

tp304l bright annealed tube

,

316l bright annealed tube

,

0.5mm thick 316l stainless steel pipe

Application:
Chemical Industry/Food Industry
Standard:
JIS, AISI,ASTM, GB, DIN, EN, Etc
Material:
Stainless Steel 201 309 304 304L 316 316L
Process Method:
Cold Drawn/ Cold Rolling, Bright Annealed
Welding Line Type:
Seamless,welded
Outer Diameter:
6mm-50.8mm
Wall Thickness:
0.5mm-2.65mm
Surface Finish:
Bright Annealed(BA), Pickling, Polish
Ends:
Plain Ends Or Beveled Ends
Length:
6-24 M
Application:
Chemical Industry/Food Industry
Standard:
JIS, AISI,ASTM, GB, DIN, EN, Etc
Material:
Stainless Steel 201 309 304 304L 316 316L
Process Method:
Cold Drawn/ Cold Rolling, Bright Annealed
Welding Line Type:
Seamless,welded
Outer Diameter:
6mm-50.8mm
Wall Thickness:
0.5mm-2.65mm
Surface Finish:
Bright Annealed(BA), Pickling, Polish
Ends:
Plain Ends Or Beveled Ends
Length:
6-24 M
Tp304l / 316l Bright Annealed Tube For Precision Instruments

Seamless Stainless Steel Pipe / Tube TP304L / 316L Bright Annealed Tube For Precision Instruments





Product description:



1. Process Method: Cold Rolled / Cold Drawn



2. Surface Finish: Pickling or Bright annealing. Polished Grade: 180# 320# 400# 600# 800#



3. Delivery Conditions: Soft/Hard



4.Materials: TP304/304L,TP316/316L/TP316Ti ; TP321/321H; TP310S; TP317/317L;TP347/347H ;

Duplex Steel: S31803/S2205; Super-duplex steel: S32750/S32760 ; Nickel alloys; chromium alloys; Monel etc.



5. Standards: GB/T13296/14975/14976,ASTM A213/A269/A312/A511/A789 ,DIN2462/17458/17456 etc



6. Size: OD.: Φ4.78mm-25.4mm, WT.:0.5mm-2.65mm


7. Tolerances: ±0.05mm Or according to customer’s request



8. Length: Stainless steel straight bright annealed tubes: 0-30 meters

Stainless steel coiled tubing: 0-1000 meters



9. Applications: For military products, semiconductor, pharmaceutical biotechnology, precision instruments, hydraulic parts, chemicals industry, boilers and heat exchangers, aerospace industry, automotive industry, electronics, petroleum exploration, precision machinery, rail transportation, shipbuilding plants, air-conditioning industry, solar industry, water heater industry etc.



Main Products: Heat exchanger tubes, U-bent tubing, stainless steel bright tubes, clamp flexible tubing, seamless precision tubes, seamless coiled tubing, super-long coiled tubing etc.



Product details:

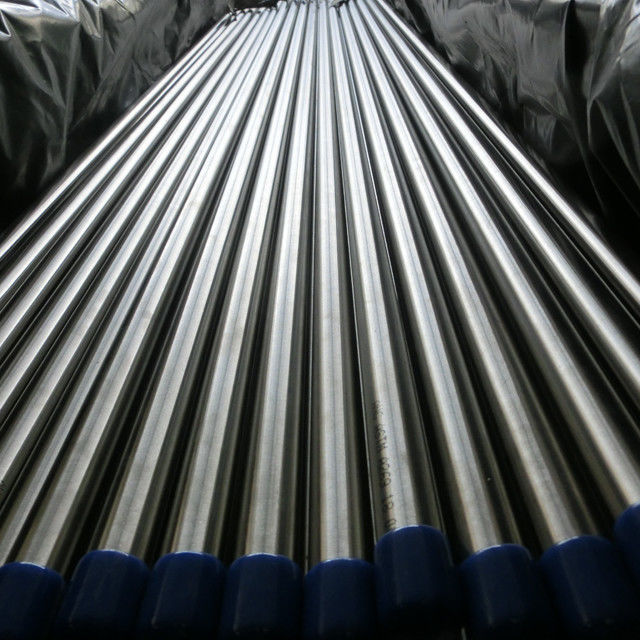

Tp304l / 316l Bright Annealed Tube For Precision Instruments 0







Chemical composition:



Tp304l / 316l Bright Annealed Tube For Precision Instruments 1







Products dimension toerance:



Dimension Tolerance Table
Standard Outside diameter(mm) Thickness(mm) Length(mm)
ASTM A312 ≤48.26 +0.40 -0.80 +unspecified -12.50% Definite cut lenght
+6.40
-0
  >48.26~114.30 +0.80 -0.80
  >114.30~219.08 +1.60 -0.80
  >219.08~457.20 +2.40 -0.80
  >457~660 +3.20/ -0.80
  >660~864 +4.00/ -0.80
  >864~1219 +4.48/ -0.80
EN 10217-7 D1±1.50% with ±0.75mm(min)
D2±1.00% with ±0.50mm(min)
D3±1.75% with ±0.30mm(min)
D4±0.50% with ±0.10mm(min)
EN ISO 1127
T1±15.00% with ±0.60mm(min)
T2±12.5% with ±0.40mm(min)
T3±10.00% with ±0.20mm(min)
T4±7.50% with ±0.15mm(min)
T5±5.00% with ±0.10mm(min)
EN ISO 1127
≤6000:
+5.00
-0

6000~12000:
+10.00
-0







Products application:



Tp304l / 316l Bright Annealed Tube For Precision Instruments 2





Packing and shipping:



Tp304l / 316l Bright Annealed Tube For Precision Instruments 3





FAQ:



Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.



Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q3: What is the terms of packing?

A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.



Q4:What is your delivery time?

A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.





Q5. What are the advantages of your company ?

A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.



Q6. How many coutries you already exported ?

A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q7. Can you provide sample ?

A7: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
