Home > products > Galvanized Steel Tube > ERW Black Bright Hot Dipped Galvanised Steel Round Tube GB 20mm

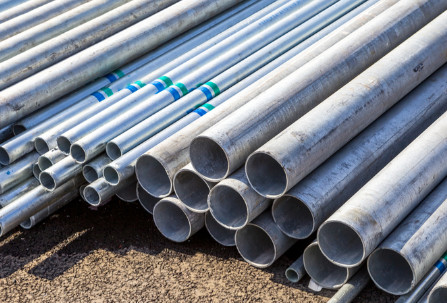

ERW Black Bright Hot Dipped Galvanised Steel Round Tube GB 20mm

Product Details

Place of Origin: Shandong China

Brand Name: ZGMC

Certification: ISO TUV SGS BIS CE

Model Number: Galvanized Steel

Payment & Shipping Terms

Minimum Order Quantity: 3Tons

Price: Negotiate

Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.

Delivery Time: 5-15days depend on the quantity

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA

Supply Ability: 5000Tons Per Months

Get Best Price
Highlight:

ERW 20mm Galvanised Steel Round Tube

,

GB Q235 Galvanised Steel Round Tube

,

ERW hot dip galvanized pipe

Standard:
API, JIS, BS, GB, ASTM, DIN, Etc
Type:
Welded Pipe / Seamless Pipe
Surface:
Black Bright Galvanized Painted
Thickness:
1-20 Mm
Outer Diameter:
20-406 Mm
Length:
Random Length
Technique:
Electronic Resistance Welded (ERW ) Seamless Steel
Application:
Fluid Pipe And Structure Pipe
Shape:
Round
Surface Treatment::
Galvanized
Standard:
API, JIS, BS, GB, ASTM, DIN, Etc
Type:
Welded Pipe / Seamless Pipe
Surface:
Black Bright Galvanized Painted
Thickness:
1-20 Mm
Outer Diameter:
20-406 Mm
Length:
Random Length
Technique:
Electronic Resistance Welded (ERW ) Seamless Steel
Application:
Fluid Pipe And Structure Pipe
Shape:
Round
Surface Treatment::
Galvanized
ERW Black Bright Hot Dipped Galvanised Steel Round Tube GB 20mm

Hot Dipped Galvanized Steel Round Pipe / Tube GB Standard At Competitive Price



Product Description:



Product Name Hot Dipped Galvanized Steel Round Pipe / Tube GB Standard At Competitive Price
Material Q195 Q235 Q345
Wall Thickness 1mm~20mm
Outer Diameter 20-406mm

Length

Length:Single random length/Double random length

5m-14m,5.8m,6m,10m-12m,12m or as customer's actual reques
Standard ASTM A53,BS1387-1985,GB/T3091-2001,GB/T13793-92, GB/T6728- 2002,API 5L
Packing Bundle, or with all kinds of colors PVC or as your requirements
Pipe Ends Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc.

Surface Treatment

1. Galvanized

2. PVC,Black and color painting

3. Transparent oil,anti-rust oil

4. According to clients requirement
Product Application 1. Fence, greenhouse, door pipe,greenhouse

2. Low pressure liquid, water, gas, oil, line pipe

3. For both indoor and outdoor the building construction

4. Widely used in scaffolding construction which is much cheaper and convenient
Origin Tianjin China
Certificates API ISO9001-2008,SGS.BV,API,
Delivery Time Usually within 10-45 days after receipt of advance payment



Sizes Range:

Inner Diameter: 12-1100mm

Wall Thickness: 2~55mm

Max Length: 12 meters



Dimension Tolerance:



Processing Way Cylinder Barrel ID (mm) Max Length (mtr) Straightness (mm/mtr) ID Tolerance Wall Thickness Tolerance (mm) ID Roughness (μm)
Cold Drawn 40-320 12 0.2-0.5 H8-H10 ±5% 0.8-1.6
Cold Rolled 12-100 12 0.2-0.5 H8-H10 ±5% 0.8-1.2
Cold Drawn+Honed 40-500 8 0.2-0.3 H7-H9 ±5% 0.2-0.8
Cold Drawn-SRB 40-400 7 0.2-0.3 H8-H9 ± 5% 0.2-0.4
Deepth Drilling-Honed 320-1100 8 0.2-0.3 H7-H9 ±8% 0.2-0.8
Deepth Drilling-SRB 320-600 7 0.2-0.3 H8-H9 ±8% 0.2-0.4





Process:

Raw materials- Cold drawn/rolled- Heat treatment (BKS)- Honed or SRB- packing.



Standard and Optional Testing:

1. Visual and dimensional test 100%.

2. Eddy current test 100% acc. to EN 10246-3.

3. Ultrasonic test 100% acc. to EN 10246-7.

4. Chemical composition.

5. Impact test.



Main Features:

1. Roughness(Ra) can be 0.08µm or less.

2. Ovality can be 0.01 mm or less.

3, Hardness can be HV4° or higher.



Main Application:

Hydraulic Cylinder, Hydraulic Jack, hydraulic oil cylinder pneumatic cylinder,

petrifaction oil pump, coal mine, engineering machinery, crane and transport machinery,

auto transmission axes, plastic machinery, engineering machinery, crane and transport machinery,

auto transmission axes, plastic machinery, hydraulic oil cylinder, pneumatic cylinder, absorber,

spin printing and dyeing.



Package:

1. Bundle Packing.

2. Plain end or vanished as per customer’s request.

3. Wrapped in waterproof paper.

4. Sackcloth with several steel strips.

5. Pack in heavy tri-wall boxes.
