Structure Frames Seamless Galvanized Steel GI Rectangular Pipe Q235B

  • Structure Frames Seamless Galvanized Steel GI Rectangular Pipe Q235B
  • Structure Frames Seamless Galvanized Steel GI Rectangular Pipe Q235B
  • Structure Frames Seamless Galvanized Steel GI Rectangular Pipe Q235B
  • Structure Frames Seamless Galvanized Steel GI Rectangular Pipe Q235B
Place of Origin China
Brand Name BAO STEEL MITTEL
Certification SGS ISO MTC
Model Number Galvanized Steel
Minimum Order Quantity 1Ton
Price Negotiate
Packaging Details in bundle, plastic bags, thin film, wooden pallet, standard seaworthy export packing or as customer demands
Delivery Time 15 days after deposit
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard API, JIS, BS, GB, ASTM, DIN, Etc Type Of Pipe Seamless / Welded
Surface Black Bright Galvanized Painted Size As Request
Length 6m Or As Request Application Structure
Shape Round / Square / Rectangle Surface Treatment Galvanized
Material Q195, Q235, Q235B, SS400, SPHC Quality Top Quality
High Light

Q235B GI rectangular pipe

,

6m GI rectangular pipe

,

H8 Seamless GI rectangular pipe
Leave a Message
Product Description

Galvanized Steel Pipe / Round / Rectangle / Square Small Size GI Pipe for Structure Frames



Product Description:



Galvanized steel pipe
1. Type welded / seamless
2. Material Q195, Q235, Q235B, SS400, SPHC
3. Standard GB/T13793-2008,GB/T6728-2002, JIS G63466-1988
4. Application building materials, automotive application, industrial application, sport equipment, furniture, etc.
5. Specification Size Square: 20mm*20mm-100mm*100mm
    Rectangular: 13mm*26mm-80mm*120mm
    Round :1/2"-16" (O.D. 25-127mm)
    Special Section: as required
  Wall Thickness (W.T.) Square/Rectangular:1-3.5mm
    Round: 0.8-4.25mm
    Special Section: as required
  Length 6-12m or other sizes according to customers' requirements
6. Surface Treatment galvanized
7. Packing 1) big order: in bulk/ bundles
2) small order: packaged by steel strips (six strips or more)
3) woven cloth with 7 slats
4) plastic bags
5) for 20ft container the max length is 6m; for 40ft container the max length is 12m
6) as required
8. Delivery Time within 20-30days after receiving the deposit
9. Price Terms FOB, CFR, CIF, EXW
10. Payment Terms T/T ( 30% T/T in advance, balance against shipment)
11. Port of Shipment Shanghai/ Qingdao Port
12. Remark Special spec is available.



Sizes Range:

Inner Diameter: 12-1100mm

Wall Thickness: 2~55mm

Max Length: 12 meters



Dimension Tolerance:



Processing Way Cylinder Barrel ID (mm) Max Length (mtr) Straightness (mm/mtr) ID Tolerance Wall Thickness Tolerance (mm) ID Roughness (μm)
Cold Drawn 40-320 12 0.2-0.5 H8-H10 ±5% 0.8-1.6
Cold Rolled 12-100 12 0.2-0.5 H8-H10 ±5% 0.8-1.2
Cold Drawn+Honed 40-500 8 0.2-0.3 H7-H9 ±5% 0.2-0.8
Cold Drawn-SRB 40-400 7 0.2-0.3 H8-H9 ± 5% 0.2-0.4
Deepth Drilling-Honed 320-1100 8 0.2-0.3 H7-H9 ±8% 0.2-0.8
Deepth Drilling-SRB 320-600 7 0.2-0.3 H8-H9 ±8% 0.2-0.4





Process:

Raw materials- Cold drawn/rolled- Heat treatment (BKS)- Honed or SRB- packing.



Standard and Optional Testing:

1. Visual and dimensional test 100%.

2. Eddy current test 100% acc. to EN 10246-3.

3. Ultrasonic test 100% acc. to EN 10246-7.

4. Chemical composition.

5. Impact test.



Main Features:

1. Roughness(Ra) can be 0.08µm or less.

2. Ovality can be 0.01 mm or less.

3, Hardness can be HV4° or higher.



Main Application:

Hydraulic Cylinder, Hydraulic Jack, hydraulic oil cylinder pneumatic cylinder,

petrifaction oil pump, coal mine, engineering machinery, crane and transport machinery,

auto transmission axes, plastic machinery, engineering machinery, crane and transport machinery,

auto transmission axes, plastic machinery, hydraulic oil cylinder, pneumatic cylinder, absorber,

spin printing and dyeing.



Package:

1. Bundle Packing.

2. Plain end or vanished as per customer’s request.

3. Wrapped in waterproof paper.

4. Sackcloth with several steel strips.

5. Pack in heavy tri-wall boxes.

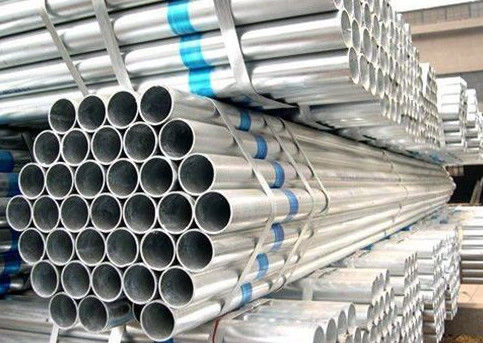

Structure Frames Seamless Galvanized Steel GI Rectangular Pipe Q235B 0
