Product Details
Place of Origin: Mainland China
Brand Name: ZGMC
Certification: SGS,BV
Model Number: Stainless Steel Round Bar
Payment & Shipping Terms
Minimum Order Quantity: 1 Ton
Price: Negotiable
Packaging Details: Standard Export Seaworthy Package
Delivery Time: 15 days after deposit
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 5000 Ton/Tons per Month
Material: |
17-4PH/630/S17400/SUS630 |
Standard: |
AiSi, ASTM, DIN, EN, GB, JIS |
Technique: |
Cold Rolled Hot Rolled Polishing |
Other Shape: |
Square / Flat / Heaxgon |
OD: |
13.7mm~220mm |
Length: |
1 To 6 Meters,Custom Cut Length |
Special Use: |
Valve Steels |
Processing Service: |
Cutting |
Application: |
Aerospace,Medical,Chemistry |
Edge: |
Mill Edge Slit Edge |
Material: |
17-4PH/630/S17400/SUS630 |
Standard: |
AiSi, ASTM, DIN, EN, GB, JIS |
Technique: |
Cold Rolled Hot Rolled Polishing |
Other Shape: |
Square / Flat / Heaxgon |
OD: |
13.7mm~220mm |
Length: |
1 To 6 Meters,Custom Cut Length |
Special Use: |
Valve Steels |
Processing Service: |
Cutting |
Application: |
Aerospace,Medical,Chemistry |
Edge: |
Mill Edge Slit Edge |

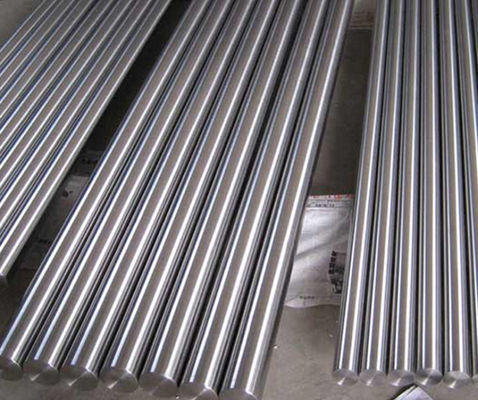

High Strength A564 SUS 630 17- 4PH / 630 SS Round Bar Stainless Steel Round Bars As Valve Steels
Typical Applications:
17-4 is used where high strength and good corrosion resistance are required, as well as for applications requiring high fatigue strength, good resistance to galling, seizing and stress corrosion. Suitable for intricate parts requiring extensive machining and welding, and/or where distortion in conventional heat treatment is a problem. The corrosion resistance of 17-4 is superior to that of hardenable straight chromium grades such as 416. It approaches the corrosion resistance of the non-magnetic chromium-nickel grades. Corrosion resisting properties will be affected by such conditions as surface finish and aging heat treatment. Common applications include uses in aircraft and gas turbines, nuclear reactors, paper mills, oil field industry, and chemical process components.
Product Description:
| Product Name | 17-4PH SUS630 Forging Round Bar 17- 4 pH inoxidable |
| Steel type | AISI 630, ASTM 630,AK Steel 17-4PH, UNS S17400 |
| JIS SUS630 | |
| Din X5CrNiCU17-04 | |
| RCCM X6CrNiCu17-04 | |
| EN 1.4542 | |
| Standard | ASTM A564 |
| Size | Size 1/4" ~ 86" out diameter 13.7mm~2200mm/Customized |
| Finishing | Solution treated + age hardening heat treated ( H900, H1150,H1075, H1150D, H1150M,H925, H1025,H1100,etc ) |
| Feature of 630 | High Tensile strength, high hardness after heat treated. |
| Mechanical property |
T.S. (Rm): 1015Mpa, Y.S. (Rp0.2): 906Mpa, EL (A5):17.1%, Z:60.3%, Hardness(HRC): 34.5 |
| Application |
construction field, ships building industry, petroleum,chemical industries,war and electricity industries, food processing and medical industry,boiler heat exchanger,machinery and hardware fields.Stainless steel plate can be made according to the customers requirements. |
| Delivery time | 15-25 working days after contract signed |
| Certificate | ISO, SGS, mill test certificate |
| Package | Standard export seaworthy package,suit for all kinds of transport,or as required. |
CHEMICAL COMPOSITION:
| Standard | Grade | C ≤ |
Si ≤ |
Mn ≤ |
P ≤ |
S ≤ |
Ni | Cr | Cu | Nb | Mo ≤ |
| GB/1220-1992 | 0Cr17Ni4Cu4Nb | 0.07 | 1.0 | 1.0 | 0.035 | 0.03 | 3.0-5.0 | 15.5-17.50 | 3.0-5.0 | 0.15-0.45 | / |
| GB/T1220-2007 | 05Cr17Ni4Cu4Nb | 0.07 | 1.0 | 1.0 | 0.040 | 0.03 | 3.0-5.0 | 15.0-17.50 | 3.0-5.0 | 0.15-0.45 | / |
| ASTM | 630/17-4PH | 0.07 | 1.0 | 1.0 | 0.040 | 0.03 | 3.0-5.0 | 15.0-17.50 | 3.0-5.0 | 0.15-0.45 | / |
| EN1088-3 | 1.4542 | 0.07 | 0.7 | 1.5 | 0.040 | 0.03 | 3.0-5.0 | 15.0-17.50 | 3.0-5.0 | 0.15-0.45 | 0.60 |
| RCCM | X6CrNiCu17-04 | 0.07 | 1.0 | 1.0 | 0.025 | 0.02 | 3.0-5.0 | 15.5-17.50 | 3.0-5.0 | 0.15-0.45 | / |
Packing Detail information:
| Packing Details | Export standard package,bundled or be required. The inner size of container is below: 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) |
| Delivery Details | 15-25 dyas,or according to the order quantity or upon negotiation |
| Loading | 25 Tons full 20ft and 40ft container |
Application of stainless steel Round bar:
1. Marine applications
2. Food preparation equipment particularly in chloride environments.
3. Pharmaceuticals
4. Fasteners
5. Medical implants, including pins, screws and orthopaedic implants like total hip and knee replacements
6. Architectural applications
