Product Details
Place of Origin: Shandong China
Brand Name: ZGMC
Certification: ISO TUV SGS BIS CE
Payment & Shipping Terms
Minimum Order Quantity: 3Tons
Price: Negotiable
Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time: 5-15days depend on the quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability: 5000Tons Per Months
Model Number: |
C17300 |
Material: |
Copper |
Standard: |
ASTM B196/B196M-2007 |
Grade: |
Copper Alloy |
Shape: |
Rod |
Dia.: |
1-200mm |
Length: |
5.8m Or Customers' Requirements |
Electrical Conductivity:: |
17% |
Model Number: |
C17300 |
Material: |
Copper |
Standard: |
ASTM B196/B196M-2007 |
Grade: |
Copper Alloy |
Shape: |
Rod |
Dia.: |
1-200mm |
Length: |
5.8m Or Customers' Requirements |
Electrical Conductivity:: |
17% |

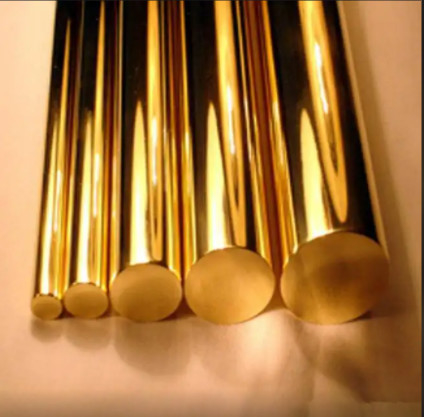

Easy cut beryllium copper – alloy M25 ( UNS C17300 ) or Lead Beryllium Copper (Cube2Pb)–C17300 (CDA 173) is identical to a version of lead-containing alloy C17200 and achieves the same exceptional strength after hardening. C17300 rods contain a small amount of lead to provide an alloy tailored for automatic machining operations and the Lead promotes formation of finely divided chips thus extending cutting tool life.
Chemical Composition:
Be: 1.85-2.10%
Co+Ni: 0.20% Min.
Co+Ni+Fe: 0.60% Max.
Lead: 0.20-0.60%
Cu: Balance
Typical Physical Properties:
Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980
|
Product name
|
SQ Complete spot sale High quality specifications H59 Copper Round bar
Brass Rod
|
||
|
length and Width
|
4m-12m or as required
0.6m-3m or as required |
||
|
Standards
|
JIS H3250-2006,ASTM B152M,GB/T2040-2008,ASTM B36,ASTM B194,ASTM
B888,ASTM B19,ASTM B122,etc
|
||
|
Material
|
C21000,C22000,C22600,C23000,C24000,C26000,C26130,C26800,C27000,C27200,
C27400,C28000,C31600,C32000,C34000,C34500,C35000,C35600,C36000,C36500,
C40500,C40800,C40850,C40860,C41100,C41500,C42200,C42500,C43000,C43400,
C44500,C46400,C46500,C51000,C52100,C53400,C61300,C61400,C63000,C63800,
C65100,C65500,C68800,C70250,C70620,C71500,C71520,C72200,C72500,C73500,
C74000,C74500,C75200,C76200,C77000,etc
|
||
|
Thickness
|
0.1mm-150mm
|
||
|
Width
|
10mm-2500mm
|
||
|
Length
|
1m,2m,3m,6m or as customized
|
||
|
Surface
|
mill,polished,bright,mirror,hair line,brush,checkered,antique,sand blast,etc
|
||
|
Price Terms
|
Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU,etc
|
||
|
Payment terms
|
TT,L/C,D/P,Western Union,etc
|
||
|
Application
|
Brass plate has a high corrosion resistance, and have good plasticity,in the air easy to
cold and hot pressure processing,easy to
welding, forging and tin, no stress corrosion cracking the tendency. |
||
|
MOQ
|
25tons.We also can accept sample order.
|
||
|
Shipment time
|
Within 15-20 workdays after receiving deposit
|
||
|
Export packing
|
Waterproof paper, and steel strip packed.Standard Export Seaworthy Package.Suit for
all kinds of transport,or as required
|
||
|
Capacity
|
250,000 tons/year
|
||
|
Container Size
|
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft
HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
||
Note:
1). the units are based upon Metric.
2). the typical physical properties apply to age hardened products.
International Specification:
Rods/Bars/Tubes: ASTM B196, QQ-C-530
Wires: ASTM B197, QQ-C-530
Plates: ASTM B194
European Standards: DIN 2.1248, CW102C to EN
Our Advantage:
1. Honest business with competitive price
2. Professional service on export process
3. Good payment term
4. Good reputation en every market
5. Quality assurance
6. Always a pre-production sample before mass production
7. Always final inspection before mass production
We also provide the following products:
C17200 beryllium copper alloy
C17300 beryllium copper alloy
C17500 beryllium copper alloy
C17510 beryllium copper alloy
CuCoNiBe beryllium copper alloy
TYPICAL APPLICATIONS:
Commercial applications for this engineering material include:
Corrosion-resistant components; Current carrying springs; Welding electrodes; Electrical and electronic connectors.
Q:How could I place a order ?
A:You can contact us by email about your order details,or place orders on line.
Q:Are the products in stock ?
A:Yes.Most of our products are in stock.It can be prompt delivery.
Q:Could I customize ?
A:Yes.It can be customized as per your request.
Q:Could you provide the samples ?
A:No problems.Samples can be provided with samples charge and courier fee by the buyer's side.
Q:What about the quality ?
A:According to the standard for production.And we also accept the third-party inspection and quarantine.
