Product Details
Place of Origin: Shandong China
Brand Name: ZGMC
Certification: ISO TUV SGS BIS CE
Model Number: Galvanized Steel
Payment & Shipping Terms
Minimum Order Quantity: 3Tons
Price: Negotiate
Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time: 5-15days depend on the quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability: 5000Tons Per Months

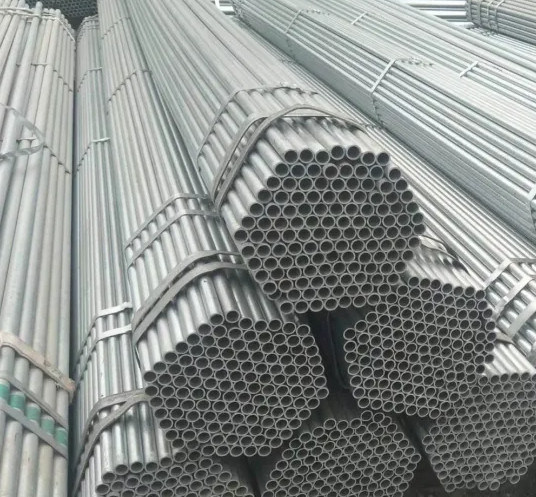

Product Name: |
Galvanized Steel Tube |
Standard: |
AiSi, ASTM, DIN, GB, JIS, JIS, AISI, ASTM, GB, DIN, EN, Etc |
Type: |
Steel Tube, Hot-Galvanized Steel Tube |
Surface: |
Coated, Clean, Blasting,Galvanized |
Edge: |
Mill Edge Slit Edge |
Technique: |
Cold Rolled, Hot Rolled |
Application: |
Fluid Pipe And Structure Pipe |
Name: |
Hydraulic Cylinder BS1387 Hot Dip Galvanized Steel Tube Q195 With Slit Edge |
Product Name: |
Galvanized Steel Tube |
Standard: |
AiSi, ASTM, DIN, GB, JIS, JIS, AISI, ASTM, GB, DIN, EN, Etc |
Type: |
Steel Tube, Hot-Galvanized Steel Tube |
Surface: |
Coated, Clean, Blasting,Galvanized |
Edge: |
Mill Edge Slit Edge |
Technique: |
Cold Rolled, Hot Rolled |
Application: |
Fluid Pipe And Structure Pipe |
Name: |
Hydraulic Cylinder BS1387 Hot Dip Galvanized Steel Tube Q195 With Slit Edge |
Product Description:
| Product Name | Hydraulic Cylinder BS1387 Hot Dip Galvanized Steel Tube Q195 With Slit Edge |
| Material | Q195 Q235 Q345 |
| Wall Thickness | 1mm~12mm |
| Size | 10mmX10mm~600mm~600mm |
|
Length |
Length:Single random length/Double random length 5m-14m,5.8m,6m,10m-12m,12m or as customer's actual reques |
| Standard | ASTM A53,BS1387-1985,GB/T3091-2001,GB/T13793-92, GB/T6728- 2002,API 5L |
| Packing | Bundle, or with all kinds of colors PVC or as your requirements |
| Pipe Ends | Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc. |
|
Surface Treatment |
1. Galvanized 2. PVC,Black and color painting 3. Transparent oil,anti-rust oil 4. According to clients requirement |
| Product Application | 1. Fence, greenhouse, door pipe,greenhouse 2. Low pressure liquid, water, gas, oil, line pipe 3. For both indoor and outdoor the building construction 4. Widely used in scaffolding construction which is much cheaper and convenient |
| Origin | Tianjin China |
| Certificates | API ISO9001-2008,SGS.BV,API, |
| Delivery Time | Usually within 10-45 days after receipt of advance payment |
Sizes Range:
Inner Diameter: 12-1100mm
Wall Thickness: 2~55mm
Max Length: 12 meters
Dimension Tolerance:
| Processing Way | Cylinder Barrel ID (mm) | Max Length (mtr) | Straightness (mm/mtr) | ID Tolerance | Wall Thickness Tolerance (mm) | ID Roughness (μm) |
| Cold Drawn | 40-320 | 12 | 0.2-0.5 | H8-H10 | ±5% | 0.8-1.6 |
| Cold Rolled | 12-100 | 12 | 0.2-0.5 | H8-H10 | ±5% | 0.8-1.2 |
| Cold Drawn+Honed | 40-500 | 8 | 0.2-0.3 | H7-H9 | ±5% | 0.2-0.8 |
| Cold Drawn-SRB | 40-400 | 7 | 0.2-0.3 | H8-H9 | ± 5% | 0.2-0.4 |
| Deepth Drilling-Honed | 320-1100 | 8 | 0.2-0.3 | H7-H9 | ±8% | 0.2-0.8 |
| Deepth Drilling-SRB | 320-600 | 7 | 0.2-0.3 | H8-H9 | ±8% | 0.2-0.4 |
Process:
Raw materials- Cold drawn/rolled- Heat treatment (BKS)- Honed or SRB- packing.
Standard and Optional Testing:
1. Visual and dimensional test 100%.
2. Eddy current test 100% acc. to EN 10246-3.
3. Ultrasonic test 100% acc. to EN 10246-7.
4. Chemical composition.
5. Impact test.
Main Features:
1. Roughness(Ra) can be 0.08µm or less.
2. Ovality can be 0.01 mm or less.
3, Hardness can be HV4° or higher.
Main Application:
Package:
1. Bundle Packing.
2. Plain end or vanished as per customer’s request.
3. Wrapped in waterproof paper.
4. Sackcloth with several steel strips.
5. Pack in heavy tri-wall boxes.
FAQ:
Q: Are you a manufacturer?
A: Yes , we are a manufacturer, We have own factory, which is located in Wuxi,CHINA.
Q: Can we visit your factory ?
A: Warmly welcome once we have your schedule we will pick you up .
Q: How much about your annual production capacity?
A: Total annual output of 600,000 tons.
Q: Can we get the some samples?Any charges?
A: Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
Q: How can we get the offer?
A: Please offer the specification of the product,such as material,size,shape,etc.So wecan give the best offer.
