Product Details
Place of Origin: Mainland China
Brand Name: ZGMC
Certification: ISO
Model Number: Stainless Steel Coil
Payment & Shipping Terms
Minimum Order Quantity: 2 Tons
Price: Negotiable
Packaging Details: in bundle, plastic bags, thin film, wooden pallet, standard seaworthy export packing or as customer demands
Delivery Time: 15 days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Ton/Tons per Month
Material: |
310H Stainless Steel |
Technique: |
Cold Rolled /Hot Rolled |
Standard: |
ASTM,UNS,JIS,GB |
Surface: |
NO.1,2B,NO.4,BA,HL Or According To Customer Requirement |
Thickness: |
0.2mm～80mm |
Width: |
1000mm,1250mm,1500mm Or Required |
Length: |
2438mm, 3000mm, 6000mm Or Required |
Application: |
Fuel Furnace Components, Carburizing Tank, Heat Treatment Basket And Fixture, Heat Exchanger, Welding Filler Wire And Electrode, Etc. |
Material: |
310H Stainless Steel |
Technique: |
Cold Rolled /Hot Rolled |
Standard: |
ASTM,UNS,JIS,GB |
Surface: |
NO.1,2B,NO.4,BA,HL Or According To Customer Requirement |
Thickness: |
0.2mm～80mm |
Width: |
1000mm,1250mm,1500mm Or Required |
Length: |
2438mm, 3000mm, 6000mm Or Required |
Application: |
Fuel Furnace Components, Carburizing Tank, Heat Treatment Basket And Fixture, Heat Exchanger, Welding Filler Wire And Electrode, Etc. |

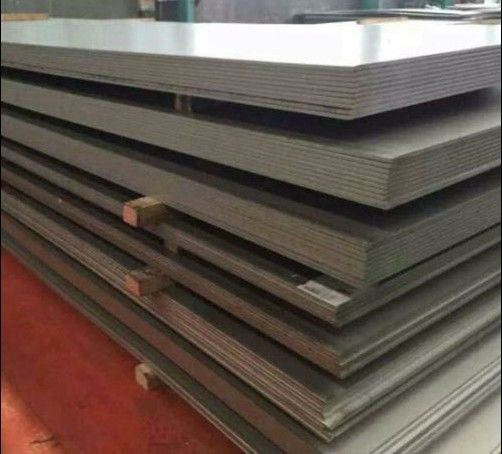

310H stainless steel plate is an austenitic stainless steel used in high temperature applications. It is used in temperatures up to 2,100℉ in continuous service. This grade contains 25% chromium and 20% nickel, making it highly resistant to oxidation and corrosion. 310H stainless steel plate is the high carbon version. They are widely used in moderately carburizing atmospheres, as encountered in petrochemical environments. These grades are not recommended for frequent liquid quenching as it suffers from thermal shock. It is often used in cryogenic applications, due to its toughness and low magnetic permeability.
Product Description:
|
Product Name |
Stainless Steel Sheets/Plates Grade 310H |
|
Size |
as required |
|
Width |
1000mm,1250mm,1500mm or required |
|
Thickness |
0.2mm～80mm or as required |
|
Standard |
ASTM,UNS,JIS,GB |
|
Technique |
Hot rolled / cold rolled |
|
Surface Treatment |
2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc |
|
Thickness Tolerance |
±0.01mm~ ±0.25mm |
|
Material |
310H stainless steel |
|
Application |
Fuel furnace components, carburizing tank, heat treatment basket and fixture, heat exchanger, welding filler wire and electrode, etc. |
|
MOQ |
1 ton , We can accept sample order. |
|
Shipment Time |
Within 15-20 workdays after receiving deposit or workable L/C |
|
Export Packing |
Waterproof paper, and steel strip packed. |
|
Capacity |
250,000 tons/year |
Chemical Composition:
Weight % (all values are maximum unless a range is otherwise indicated)
| Grade | 310 | 310S | 310H |
| C | 0.25 | 0.08 | 0.40 min. - 0.10 max. |
| Si | 1.5 | 1.5 | 0.75 |
| Mn | 2.0 | 2.0 | 2.0 |
| Cr | 24.0 min.-26.0 max. | 24.0 min.-26.0 max. | 24.0 min.-26.0 max. |
| Ni | 19.0 min.-22.0 max. | 19.0 min.-22.0 max. | 19.0 min.-22.0 max. |
| P | 0.045 | 0.045 | 0.045 |
| S | 0.03 | 0.03 | 0.03 |
Physical Properties :
| Density | Thermal Conductivity 212°F (100°C) |
| 0.285 lbs/in3 | 8.0 BTU/hr/ft2/ft/°F |
| 7.89 g/cm3 | 10.8 W/m-°K |
| Specific Heat | Melting Range |
| 0.12 BTU/lb-°F (32 – 212°F) | 2470 – 2555°F |
| 502 J/kg-°K (0 – 100°C) | 1354 – 1402°C |
| Modulus of Elasticity | Electrical Resistivity |
| 28.5 x 106 psi | 30.7 Microhm-in at 68°C |
| 196 GPa | 78.0 Microhm-cm at 20°C |
Typical Values at 68°F (20°C)
| Yield Strength | Ultimate Tensile | Elongation | Hardness | ||
| 0.2% Offset | Strength | in 2 in. | |||
| psi (min.) | (MPa) | psi (min.) | (MPa) | % (min.) | (max.) |
| 35,000 | 245 | 80,000 | 550 | 45 | 217 Brinell |
Specifications:
| 310 | 310S | 310H |
| UNS S31000 | UNS S31008 | UNS S31009 |
| ASTM A240 | ASTM A240 | ASTM A240 |
| ASTM A480 | ASTM A480 | ASTM A480 |
| ASME SA240 | ASME SA240 | ASME SA240 |
| AMS 5521 | AMS 5521 | AMS 5521 |
FAQ:
Q1. What are your company's main products ?
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.
Q3. What are the advantages of your company ?
A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q4: What is the terms of packing?
A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.
Q5:What is your delivery time?
A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q6. Can you provide sample ?
A7: We can provide the samll samples in stock for free, as long as you contact us.
Customized samples will take about 5-7days.
Q7. How many coutries you already exported ?
A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
