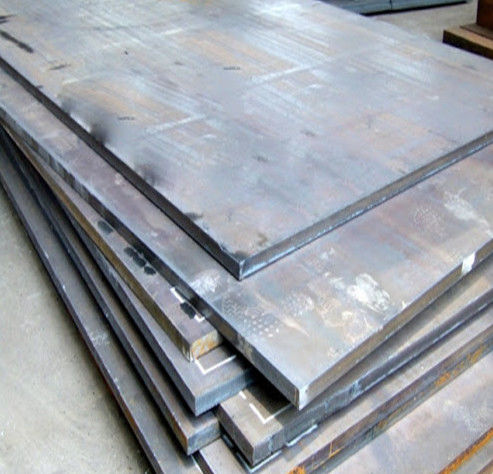

BV ASME SA 515 GR.70 HR Boiler Steel Plates 3mm Width

  • BV ASME SA 515 GR.70 HR Boiler Steel Plates 3mm Width
  • BV ASME SA 515 GR.70 HR Boiler Steel Plates 3mm Width
Place of Origin Shandong China
Brand Name ZGMC
Certification ISO TUV SGS BIS CE
Model Number Stainless Steel sheets/plate
Minimum Order Quantity 3Tons
Price Negotiable
Packaging Details With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time 5-15days depend on the quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability 5000Tons Per Months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material SA515 Gr. 70 Technique Hot Rolled
Standard ASME A515 Surface According To Customer's Requirement
Thickness 3-200mm Width 3-600mm Or Required
Length 3000mm, 6000mm Or Required Application Gas Processing, Chemical Equipment, Seawater Equipment, Pharmaceutical Equipment, And Heat Exchangers Etc.
Highlight

ASME SA 515 GR.70 Boiler Steel Plates

,

SA 515 GR.70 HR Boiler Steel Plates

,

Boiler Steel Plates 3mm Width
Leave a Message
Product Description

Carbon steel GR.70 plate are having some excellent features to offer because of which it has become an ideal selection. It includes rugged design, wears resistant, very good hardiness, sturdy construction, corrosion-resistant, superior strength, optimum quality. The surface finishes in which these plates can be acquired are checkered, sandblasting, brush, and embossed, 2B, BA, 8K, No 1, etc. It is popularly made available in hot rolled finish.











Product Description:



Product Name

Boiler  Steel Plates

Size

as required

Width

3-600mm or as required

Thickness

3mm-200mm

Standard

 ASME/ASTM

Technique

Hot rolled

Surface Treatment

According to customer's requirement

Thickness Tolerance

±0.01mm~ ±0.25mm

Material

SA 515 GR.70

Application

Used is condensers, gas processing, chemical equipment, seawater equipment, pharmaceutical equipment, and heat exchangers.

MOQ

1 ton , We can accept sample order.

Shipment Time

Within 15-20 workdays after receiving deposit or workable L/C

Export Packing

Waterproof paper, and steel strip packed.
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required

Capacity

250,000 tons/year











Chemical Composition:



C Si Mn P S Al Cr Ni Cu Mo Ti Nb V
% % % % % % % % % % % % %
0.18 0.40 0.95-1.50 0.015 0.008 ≥0.02 0.30 0.30 0.30 0.08 0.03 0.01 0.02













Physical properties :



Tensile strength (ksi) Yield strength (ksi) Elongation min, % 200 mm (8 in) Elongation min, % 50 mm (2 in)
485-620 (70-90) 260 (38) 17 21











ASTM A515 GR.60 BOILER & PRESSURE VESSEL PLATES EQUIVALENT GRADES:

British Standard European Norm ASTM/ASME DIN
BS1501-224-490A/B EN10028 P355GH A/SA515 - Grade 70 /

















BV ASME SA 515 GR.70 HR Boiler Steel Plates 3mm Width 0





FAQ:



Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.



Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q3. What are the advantages of your company ?

A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.



Q4: What is the terms of packing?

A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.



Q5:What is your delivery time?

A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.



Q6. Can you provide sample ?

A7: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.



Q7. How many coutries you already exported ?

A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
