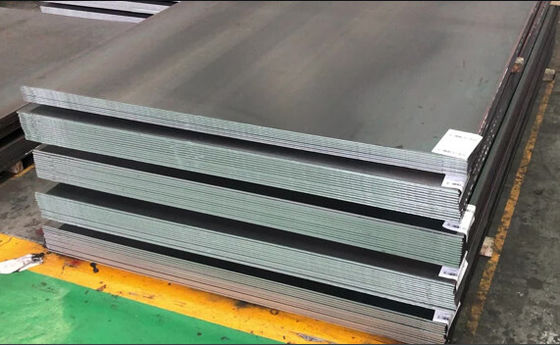

ASME SA 516 GR.60 HR SGS Carbon Steel Plates For Boiler Pressure Vessel

  • ASME SA 516 GR.60 HR SGS Carbon Steel Plates For Boiler Pressure Vessel
  • ASME SA 516 GR.60 HR SGS Carbon Steel Plates For Boiler Pressure Vessel
Place of Origin China
Brand Name Bao Steel/ TISCO/Wu Steel
Certification SGS,BV
Model Number Stainless Steel sheets/plate
Minimum Order Quantity 2 Tons
Price Negotiable
Packaging Details Plastic bags, thin film, wooden pallet, standard seaworthy export packing or as customer demands
Delivery Time 15 days after deposit
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material SA516 Gr. 60 Technique Hot Rolled
Standard ASME A516 Surface According To Customer's Requirement
Thickness 3-300mm Width 1500-3000mm Or Required
Length 3000mm, 6000mm Or Required Application Pharmaceuticals, Heat Exchangers, Seawater Equipment, Pulp & Paper Industry, Condensers, Chemical Equipment, Etc.
High Light

ASME SA 516 GR.60 Carbon Steel Plates

,

SGS Carbon Steel Plates

,

SGS Boiler Steel Plates
Leave a Message
Product Description

SA 516 GR 60 Plates are rustproof and easily can be exposed to the moisture and air. These plates have high mechanical properties from low temperature to very high temperature. Besides of copper and molybdenum and copper provide extra resistance to reducing environments. These plates are designed especially to handle a lot of harsh corrosive environments. Chromium addition in these plates gives resistance from the oxidizing agents. These plates are highly resistive from both the carbonization and oxidization and also the temperature resistivity is outstanding.











Product Description:



Product Name

Boiler & Pressure Vessel Steel Plates

Size

as required

Width

1500-3000mm or as required

Thickness

3mm-300mm

Standard

 ASME/ASTM

Technique

Hot rolled

Surface Treatment

According to customer's requirement

Thickness Tolerance

±0.01mm~ ±0.25mm

Material

SA 516 GR.60

Application

Pharmaceuticals, heat exchangers, seawater equipment, pulp & paper industry, condensers, chemical equipment, etc.

MOQ

1 ton , We can accept sample order.

Shipment Time

Within 15-20 workdays after receiving deposit or workable L/C

Export Packing

Waterproof paper, and steel strip packed.
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required

Capacity

250,000 tons/year











Chemical Composition:



C Si Mn P S Al Cr Ni Cu Mo Ti Nb V
% % % % % % % % % % % % %
0.18 0.40 0.95-1.50 0.015 0.008 ≥0.02 0.30 0.30 0.30 0.08 0.03 0.01 0.02













Physical properties :



Tensile strength (ksi) Yield strength (ksi) Elongation min, % 200 mm (8 in) Elongation min, % 50 mm (2 in)
485-620 (70-90) 260 (38) 17 21











ASTM A516 GR.60 BOILER & PRESSURE VESSEL PLATES EQUIVALENT GRADES:

British Standard European Norm ASTM/ASME DIN
BS1501-161-430A EN10028 P265GH A/SA516 - Grade 60 DIN 17155 HII

















ASME SA 516 GR.60 HR SGS Carbon Steel Plates For Boiler Pressure Vessel 0





FAQ:



Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.



Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q3. What are the advantages of your company ?

A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.



Q4: What is the terms of packing?

A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.



Q5:What is your delivery time?

A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.



Q6. Can you provide sample ?

A7: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.



Q7. How many coutries you already exported ?

A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
