8mt Ppgi Ppgl Astm Thickness 0.35mm Galvanised Steel Coil For Building
Place of Origin | China |
---|---|
Brand Name | BAO STEEL MITTEL |
Certification | SGS ISO MTC |
Model Number | Galvanized Steel |
Minimum Order Quantity | 1Ton |
Price | Negotiate |
Packaging Details | Standard seaworthy export packing or as customer demands |
Delivery Time | 15 days after deposit |
Payment Terms | L/C, D/P, T/T, Western Union |
Supply Ability | 5000 Ton/Tons per Month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xWidth | 600mm-1250mm | Top Coating | 10~25 Micron |
---|---|---|---|
Thickness | 0.14mm-0.8mm | Back Coating | 5~12 Micron |
Type | Prepainted Galvanized Steel Coil | Technique | Cold Rolled |
Coil Weight | 4-8mt | Top Paint | PVDF, HDP, SMP, PE, PU |
Edge | Mill Edge Slit Edge | Standard | ASTM, JIS, GB, AISI, DIN |
High Light | 0.35mm galvanised steel coil,astm galvanised steel coil,8mt galvanised steel coil |

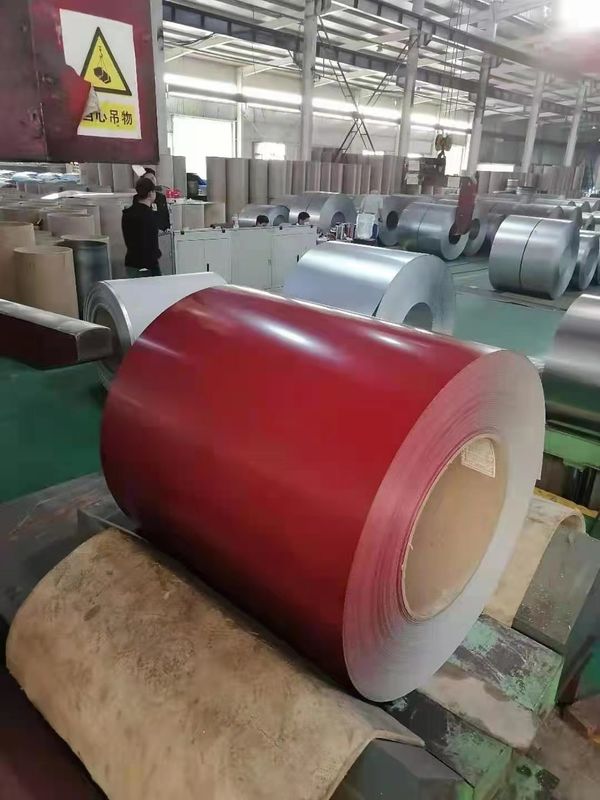

PPGI PPGL ASTM Thickness 0.35mm Prepainted Galvanized Steel Coil For Building
Product Description:
Printing plate is made of different material substrate,surface coating with high weather-resistance paint and ink, forming a rich variety of wood, stone, brick and tile lines, woven cashmere leather, sheepskin, camouflage pattern, ice pattern, orange peel, refrigerator pattern and other patterns and designs on surface, beautiful design and anti-corrosion tolerance for one effect. top coating can also meet a variety of special requirments, such as dirt resistance, self-cleaning, high temperature- resistance, self extinguishing, sterilization, non-stick snow, fingerprint resistance and self lubrication.
Name Of Product | Prepainted Galvanized Steel Coil |
Grade | Q195 ,SGCC , DX51D ,SGCD |
Certification | ISO9001 ,2000 |
Thickness | From 0.14 mm to 1.60 mm , all available |
Width | From 930 mm to 1500 mm ,all available |
Coat Fabric | Top Coating: 10-25 micron ;Back Coating: 5-7 micron primer |
Color | According to RAL ,or as customer' model |
Surface Treatment | Oils coated ,Zinc Coated, Color Coated |
Package | Standard Seaworthy Package |
Application |
1) Cable armouring 2) Deep drawing applications 3) Constructions 4) Electric appliance |
Hemical Composition :
GRADE | C | Si | Mn | P | S | Ti |
SGCC/DX51D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
DX52D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
SGCD/DX53D+Z | ≤0.10 | ≤0.30 | ≤0.50 | ≤0.05 | ≤0.030 | ≤0.020 |
GRADE | Yield Strength MPa | Tensile Strength MPa | Elongation % | |||
SGCC(DX51D+Z) | ≥205 | ≥270 | - | |||
SGCD(DX53D+Z) | - | ≥270 | 38 | |||
SGCE(DX54D+Z) | - | ≥270 | 4 |
Packing And Shipping:
Mill standard export seaworthy package with inner sleeve and with 4 eye bands 3 circumferential bands in steel,galvanized metal fluted rings on inner and outer edges,galvanized metal & water proof paper wall protection disk around circumferences.
FAQ:
Q1: Are you factory or trading company?
A: We are manufacturer, sincerely welcome you visit our factory.
Q2: Can you guarantee your galvanized steel coil quality?
A: Best quality is our principle all the time. We have 2 times quality test before delivery.
Our vision : to be world-class professional,reliable and outstanding steel supplier.
Q3: What is your MOQ?
A: We welcome your trial order MOQ 25 T to be stuffed in 1*20GP.
Large quantity can reduce your cost .
Q5: What is your main market ?
A: Galvanized steel coils are mainly exported to Afirca ,Southeast Asia, the Middle East,Central
Asia Europe, North & South America and other countries and regions.
