Product Details
Place of Origin: Shandong China
Brand Name: ZGMC
Certification: ISO TUV SGS BIS CE
Model Number: Stainless Steel Coil
Payment & Shipping Terms
Minimum Order Quantity: 3Tons
Price: Negotiable
Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time: 5-15days depend on the quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability: 5000Tons Per Months
Name: |
Stainless Steel Coil Strip |
Technique: |
Cold Rolled |
Finish: |
2B,NO.4,BA,HL |
Thickness: |
0.10-3.00mm |
Standard: |
JIS, ASTM, DIN, EN GB |
Width: |
Customized |
Length: |
Customized |
Application: |
Construction |
Name: |
Stainless Steel Coil Strip |
Technique: |
Cold Rolled |
Finish: |
2B,NO.4,BA,HL |
Thickness: |
0.10-3.00mm |
Standard: |
JIS, ASTM, DIN, EN GB |
Width: |
Customized |
Length: |
Customized |
Application: |
Construction |

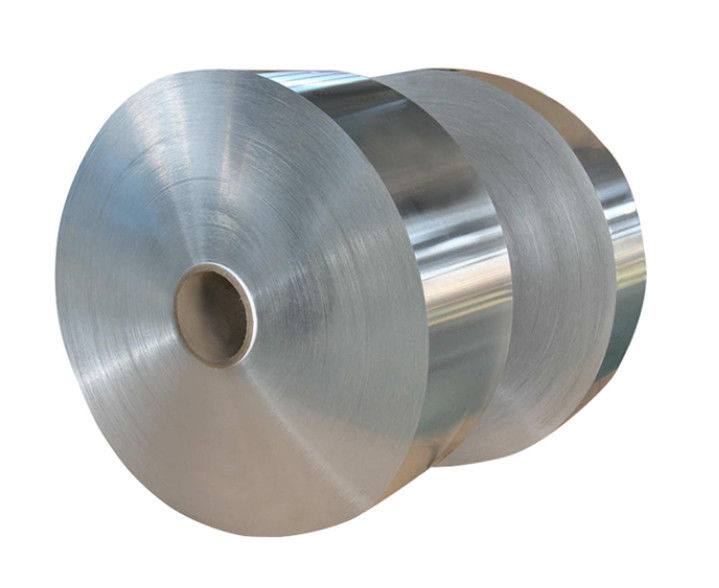

BA Finish AISI SS 430 0.5mm Cold Rolled Stainless Steel Coil Strip
Product Description:
SS 430 PLATE or COIL is a combination of useful mechanical properties, formability, and good corrosion resistance. This grade is good at welding and higher machinability. Thus, offers high strength and can be easily formed, drawn, worked and bent.Stainless Steel 430 Plates are obtained from straight chromium it is also known as non-hardenable grade due to its ferritic nature. It offers excellent corrosion and heat resistance properties and as compared to chromium-nickel grades.
|
Product Name
|
BA Finish AISI SS 430 Cold Rolled Stainless Steel Coil Strip
|
|||
|
Material Grade
|
200 Series: 201, 202
|
|||
|
300 Series: 304, 304L, 316, 316L, 310S
|
||||
|
400 Series: 410, 410S, 420, 430
|
||||
|
Standard
|
AISI, ASTM, DIN, GB, JIS, SUS
|
|||
|
Surface treatment
|
2B, BA, No.1
|
|||
|
Thickness Range
|
0.08-3.0mm
|
Width
|
10-1000mm
|
|
|
Hardness Range(HV)
|
200-410
|
Tolenrance
|
0.1%
|
|
|
Tensile Strength (MPa)
|
480-1130
|
Yield Strength(MPa)
|
205-880
|
|
|
Application
|
Use for industry product, electronic components, chemical filler, medical product, food industry, spring, etc.
|
|||
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 -3.0 |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |
Packaging and shipping:
Stainless products specialize in timely delivery which saves the overall cost of customers with our economical production capabilities. Custom requests are aimed to be fulfilled with overall requirement satisfaction which enables us at meeting our client’s exact needs.Safe packing and transportation is a must to avoid damage at the very last stage of production . Thus plywood cases, wooden crates, or boxes are brought into use. Customers can also specify their packing requirements at the time of order placement.
FAQ:
Q1. What are your company's main products ?
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.
Q3. What are the advantages of your company ?
A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q4: What is the terms of packing?
A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.
Q5:What is your delivery time?
A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q6. Can you provide sample ?
A7: We can provide the samll samples in stock for free, as long as you contact us.
Customized samples will take about 5-7days.
Q7. How many coutries you already exported ?
A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
