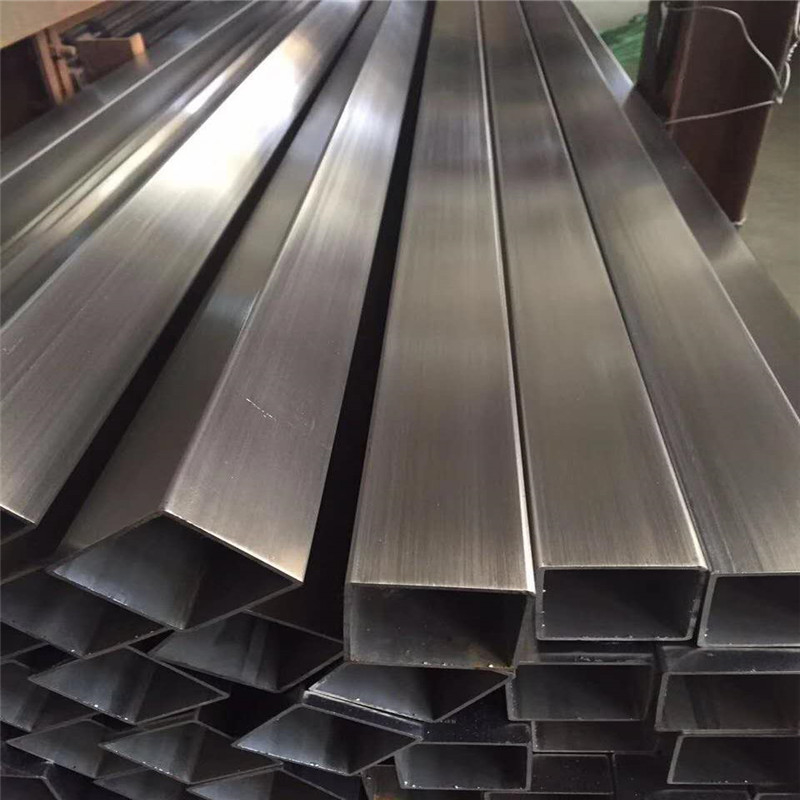

Aisi Astm 304 316 Stainless Square Tube Jis Welded

Place of Origin Shandong China
Brand Name ZGMC
Certification ISO TUV SGS BIS CE
Model Number Stainless Steel Square tube
Minimum Order Quantity 3Tons
Price Negotiable
Packaging Details With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time 5-15days depend on the quantity
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability 5000Tons Per Months

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Stainless Steel Square Tube Standard ASTM, GB, JIS, EN, Etc.
Processing Service Spiral Welded Surface 180G, 400G, 600G, 800G, 8K, Mirror, Bright, Hairline
Application Architectural Ornament Standard Size 20*20mm-300*300mm
Length Cut To Size Thickness 0.5-20mm
Highlight

aisi 316 stainless square tube

,

welded 316 stainless square tube

,

astm 316 stainless steel square tubing

Leave a Message
Product Description

AISI ASTM 304 316 JIS Welded Rectangular Stainless Steel Tube Pipes





Product Description:



Steel rectangular tubing is widely used in industrial maintenance, agricultural implements, transportation equipment, etc. Its box-shape configuration makes it strong, rigid and durable. Ornamental rectangular tubing is stocked in a number of standard sizes and grades, including 304/304L and 316/316L. Either grade is ideal for all structural applications, general fabrication, manufacturing and repairs. This steel shape is easy to weld, cut, form and machine with the proper equipment and knowledge. At Stainless Tubular, We have the capabilities to create the specific rectangular tubing you need.we can customize the ideal stainless steel rectangular tubing for your unique application.  We are an industry authority in cut-to-length and fabricated metal products.



Production Name
Stainless Steel Tube, Pipe
Size
Outer Diameter:6-2000 mm
Thickness:0.1-100 mm (Size can be customized.)
Length:≤12000mm or as per customer request
Product Standard
ASTM A213, ASTM A312, ASTM A789, ASTM A790


Material Grade
Mainly201, 202, 304, 304L, 304H, 316, 316L,316Ti,2205, 330, 630, 660, 409L, 321,
310S, 410, 416, 410S, 430, 347H, 2Cr13, 3Cr13 etc
300series:301,302,303,304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347
200series:201,202,202cu,204
400series:409,409L,410,420,430,431,439,440,441,44
Others:2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc
Duplex stainless steel:S22053,S25073,S22253,S31803,S32205,S32304
Special Stainless Steel:904L,347/347H,317/317L,316Ti,254Mo
Technique
Cold Rolled; Hot Rolled
Lead Time
7-15 working days after the receipt of 30% deposit
Payment Terms
30% TT for deposit,70% TT /70% LC at sight balance before shipment
Surface
BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, SB, Embossed
Application

Handrail systems, furniture, display shelf, sanitary wares, machinery equipment, automobile





Aisi Astm 304 316 Stainless Square Tube Jis Welded 0

Aisi Astm 304 316 Stainless Square Tube Jis Welded 1

Chemical Composition:

Grade C Si Mn P S Ni Cr Mo
201 ≤0 .15 ≤0 .75 5. 5-7. 5 ≤0.06 ≤ 0.03 3.5 -5.5 16 .0 -18.0 -
202 ≤0 .15 ≤l.0 7.5-10.0 ≤0.06 ≤ 0.03 4.0-6.0 17.0-19.0 -
301 ≤0 .15 ≤l.0 ≤2.0 ≤0.045 ≤ 0.03 6.0-8.0 16.0-18.0 -
302 ≤0 .15 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 8.0-10.0 17.0-19.0 -
304 ≤0 .0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 ≤ 0.03 19.0-22.0 24.0-26.0
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0 .03 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0 - 15.0 16 .0 -1 8.0 2.0 -3.0
321 ≤ 0 .08 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0 - 13 .0 17.0 -1 9.0 -
630 ≤ 0 .07 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 ≤0.035 6.50-7.75 16.0-18.0 -
904L ≤ 2 .0 ≤0.045 ≤1.0 ≤0.035 - 23.0·28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 ≤0.02 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.8 ≤1.2 ≤0.035 ≤0.02 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 ≤ 0.03 0.19 -0. 22 0. 24 -0 . 26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 - 11.5-13.5 -
430 ≤0.1 2 ≤0.75 ≤1.0 ≤ 0.040 ≤ 0.03 ≤0.60 16.0 -18.0 -





Stainless Steel Square Hollow Section sizes:



Size (mm)

Thick

ness (mm)

Kg / Metre Size (mm)

Thick

ness (mm)

Kg / Metre Size (mm)

Thick

ness (mm)

Kg / Metre Size (mm)

Thick

ness (mm)

Kg / Metre Size (mm)

Thick

ness (mm)

Kg / Metre Size (mm)

Thick

ness (mm)

Kg / Metre
20 X 20 2 1.11 60 X 60 3 5.34 80 X 80 8 17.83 120 X 120 5 18.00 160 X 160 10 46.88 250 X 250 16 111.48
25 X 25 2 1.43 60 X 60 3.2 5.67 80 X 80 10 21.88 120 X 120 6 21.30 180 X 180 5 27.97 300 X 300 6 55.30
25 X 25 2.5 1.74 60 X 60 3.6 6.34 90 X 90 3 8.16 120 X 120 6.3 22.30 180 X 180 6 33.26 300 X 300 8 74.18
25 X 25 3 2.04 60 X 60 4 6.97 90 X 90 3.5 9.45 120 X 120 8 27.90 180 X 180 8 43.00 300 X 300 10 90.70
30 X 30 2 1.74 60 X 60 5 8.54 90 X 90 3.6 9.72 120 X 120 10 34.13 180 X 180 10 53.00 300 X 300 12 108.68
30 X 30 2.5 2.14 70 X 70 2.5 5.28 90 X 90 4 10.70 120 X 120 12 39.94 180 X 180 12 61.01 300 X 300 12.5 112.00
30 X 30 3 2.51 70 X 70 3 6.28 90 X 90 5 13.30 120 X 120 16 54.64 180 X 180 12.5 65.20 300 X 300 16 141.84
30 X 30 3.2 2.65 70 X 70 3.5 7.25 90 X 90 6 15.70 140 X 140 6 25.97 180 X 180 16 81.30 350 X 350 10 105.93
40 X 40 2 2.37 70 X 70 3.6 7.46 90 X 90 6.3 16.40 140 X 140 8 32.89 200 X 200 5 31.18 350 X 350 12 126.74
40 X 40 2.5 2.92 70 X 70 4 8.23 90 X 90 8 20.32 140 X 140 10 41.15 200 X 200 6 37.09 350 X 350 16 166.94
40 X 40 3 3.45 70 X 70 5 10.10 90 X 90 10 25.53 150 X 150 4 18.30 200 X 200 8 48.00 400 X 400 8 97.56
40 X 40 4 4.46 70 X 70 8 15.29 100 X 100 3 9.10 150 X 150 5 22.70 200 X 200 10 59.30 400 X 400 10 121.95
40 X 40 5 5.40 70 X 70 10 19.13 100 X 100 4 12.00 150 X 150 6 27.00 200 X 200 12 68.84 400 X 400 12 151.97
50 X 50 2 3.00 80 X 80 3 7.22 100 X 100 5 14.80 150 X 150 6.3 28.30 200 X 200 12.5 73.00 400 X 400 16 191.94
50 X 50 2.5 3.71 80 X 80 3.5 8.35 100 X 100 6 17.60 150 X 150 8 35.40 200 X 200 16 90.91
50 X 50 3 4.39 80 X 80 3.6 8.59 100 X 100 6.3 18.40 150 X 150 10 43.47 250 X 250 6 46.83
50 X 50 4 5.72 80 X 80 4 9.48 100 X 100 8 22.90 150 X 150 12 53.48 250 X 250 8 60.50
50 X 50 5 6.97 80 X 80 5 11.70 100 X 100 10 27.86 150 X 150 16 65.05 250 X 250 10 75.00
50 X 50 6 8.20 80 X 80 6 13.80 100 X 100 12 33.44 160 X 160 6 27.39 250 X 250 12 88.45
50 X 50 8 10.50 80 X 80 6.3 14.40 120 X 120 4 14.50 160 X 160 8 36.90 250 X 250 12.5 92.70





Packing and shipping:





Aisi Astm 304 316 Stainless Square Tube Jis Welded 2



FAQ:

Q1. What are the advantages of your company ?

A1: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.



Q2. How many coutries you already exported ?

A2: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q3. Can you provide sample ?

A3: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.



Q4. What are your company's main products ?

A4: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.



Q5. How do you control quality ?

A5: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q6: What is the terms of packing?

A6: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.



Q7:What is your delivery time?

A7: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.
