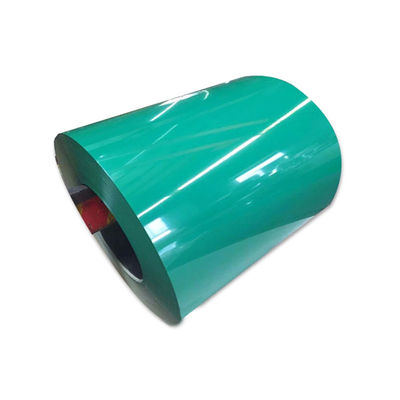

Jis G3302 Ppgl Ppgi Steel Coil Thickness 0.5mm Color Coating
| Place of Origin | China |
|---|---|
| Brand Name | BAO STEEL MITTEL |
| Certification | SGS ISO MTC |
| Model Number | Galvanized Steel |
| Minimum Order Quantity | 1Ton |
| Price | Negotiate |
| Packaging Details | Standard seaworthy export packing or as customer demands |
| Delivery Time | 15 days after deposit |
| Payment Terms | L/C, D/P, T/T, Western Union |
| Supply Ability | 5000 Ton/Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Width | 600mm-1500mm | Top Coating | 10~25 Micron |
|---|---|---|---|
| Thickness | 0.13mm-1.5mm | Back Coating | 5~12 Micron |
| Coil Weight | 3-8 Mton | Top Paint | PVDF, SMP, PE, PU |
| Edge | Mill Edge Or Cutting As Required | Standard | ASTM, JIS, GB |
| High Light | jis g3302 ppgi steel coil,thickness 0.5mm ppgi steel coil,color coating ppgi steel coil |
||
Product Description
JIS G3302 Ppgi Ppgl Thickness 0.5mm Color Coating Galvanised Steel Coil
Product Specification and Size :
PPGI / PPGL / PPGF
PPGI are used in: daily necessities, housings of household appliances (air conditioners, washing machines, etc.), ventilation ducts, outdoor billboards, retaining walls, etc., equipment hoppers, various stamping parts, and so on.
The coating composition of PPGI usually refers to the uniform zinc element.
The coating composition of PPGL is usually 55% aluminum, 43.4% zinc, and 1.6% trace elements. Since the surface of the aluminum-zinc plate is an alloy plating layer, the chemical performance is much more stable than that of the base plate.
PPGI has a higher finish and looks more beautiful. PPGL steel coils have a higher finish than PPGI steel coils.PPGL has higher corrosion resistance. If there are corrosion spots, the corrosion will spread on the PPGL board, but it will not spread on the PPGI board.
| Product Type | Pre-Painted Hot-Dip Galvanized Steel Coil (PPGI) | Pre-Painted Hop-Dip 5% Al-Zn Coated Steel Coil (PPGF) | Pre-Painted Hop-Dip 55% Al-Zn Coated Steel Coil (PPGL) | Pre-Painted Embossed Steel Coil | ||||||||||||||
| Coating Types | 1. Polyester (PE) 2. Silicone Modified Polyester (SMP) 3. Acrylic 4. Polyvinylidene Difluoride (PVDF) |
PVC Plastisol | ||||||||||||||||
| Specifications | CNS 10804 (2013) CNS 15298 (2013) CNS 15299 (2013) JIS G3312 (2013) CGCC CGCD1~3 CGC340 CGC400 CGC440 CGC490 CGC570 JIS G3318 (2013) CZACC CZACH CZACD1 CZAC340 CZAC400 CZAC440 CZAC490 CZAC570 JIS G3322 (2013) CGLCC CGLCD CGLC400 CGLC440 CGLC490 CGLC570 ASTM A755M (2016) AS 2728 (2013) EN 10169+A1 (2010) |
JIS K6744 (2007) SG SA ASTM A755M (2016) EN 10169+A1 (2010) |
||||||||||||||||
| Coating Types | Primer: PU or Epoxy 5μm Topcoat: 15-20μm Back Primer: PU or Epoxy 2μm Back Coat: PE or Epoxy 5-12μm |
Primer: Epoxy Topcoat: PVC PLASTISOL 150- 250μm Back Primer: PU or Epoxy 2μm Back Coat: PVC PLASTISOL 100 - 250μm or Epoxy 7μm |
||||||||||||||||
| Surface Treatment | Protective film can be applied Metal Embossed Cedar wood Stucco Leather |
PVC Embossed Leather Lichee |
||||||||||||||||
| Remarks | 1. The ASTM standards presented here adopt the equivalent metric system. (The imperial system deletes the “M" after their specification number, such as A755 and A792.) 2. Coating thickness is for reference only. |
|||||||||||||||||
Chemical Composition :
| GRADE | C | Si | Mn | P | S | Ti |
| SGCC/DX51D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| DX52D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| SGCD/DX53D+Z | ≤0.10 | ≤0.30 | ≤0.50 | ≤0.05 | ≤0.030 | ≤0.020 |
| GRADE | Yield Strength MPa | Tensile Strength MPa | Elongation % | |||
| SGCC(DX51D+Z) | ≥205 | ≥270 | - | |||
| SGCD(DX53D+Z) | - | ≥270 | 38 | |||
| SGCE(DX54D+Z) | - | ≥270 | 4 | |||
Packing And Shipping:
Mill standard export seaworthy package with inner sleeve and with 4 eye bands 3 circumferential bands in steel,galvanized metal fluted rings on inner and outer edges,galvanized metal & water proof paper wall protection disk around circumferences.
FAQ:
Q1: Are you factory or trading company?
A: We are manufacturer, sincerely welcome you visit our factory.
Q2: Can you guarantee your galvanized steel coil quality?
A: Best quality is our principle all the time. We have 2 times quality test before delivery.
Our vision : to be world-class professional,reliable and outstanding steel supplier.
Q3: What is your MOQ?
A: We welcome your trial order MOQ 25 T to be stuffed in 1*20GP.
Large quantity can reduce your cost .
Q5: What is your main market ?
A: Galvanized steel coils are mainly exported to Afirca ,Southeast Asia, the Middle East,Central
Asia Europe, North & South America and other countries and regions.
