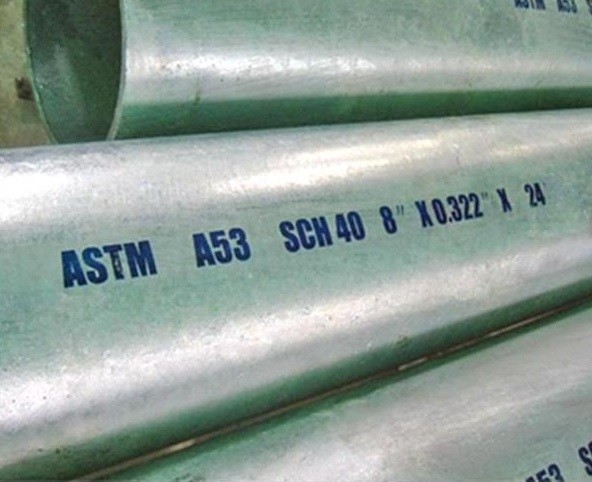

Astm A53 Welded Seamless Carbon Steel Pipe For Chilled Water

  • Astm A53 Welded Seamless Carbon Steel Pipe For Chilled Water
Place of Origin China
Brand Name Bao Steel/ TISCO/JISCO/HDL
Certification SGS,BV
Model Number Carbon Steel Pipe/ Tube
Minimum Order Quantity 2 Tons
Price Negotiable
Packaging Details Plastic bags, thin film, wooden pallet, standard seaworthy export packing or as customer demands
Delivery Time 15 days after deposit
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material A53 Dia. 13.7-914mm
Thickness 1.25-50mm Length 6-12m Or Required
Technique Cold-Formed, Hot Rolled Standard ASTM A53
Surface Black Oil Coating, 3PE,Fusion Bond Expoxy Coating Application The Pipeline Underneath, The Groundwater, And The Hot Water Transportation
High Light

astm carbon steel pipe for chilled water

,

seamless carbon steel pipe for chilled water

,

astm a53 carbon steel welded pipe
Leave a Message
Product Description

ASTM A53 (ASME SA53) carbon steel pipe is a specification that covers seamless and welded black and hot-dipped galvanized steel pipe. A 53 is intended for pressure and mechanical applications and is also acceptable for ordinary uses in steam, water, gas, and air lines.

A53 pipe comes in three types (F, E, S) and two grades (A, B).
A53 Type F is manufactured with a furnace butt weld or may have a continuous weld (Grade A only)
A53 Type E has an electric resistance weld (Grades A and B)
A53 Type S is a seamless pipe and found in Grades A and B)

A53 Grade B Seamless is our most polar product under this specification and A53 pipe is commonly dual certified to A106 B Seamless pipe.



ASTM A53 Grade B Seamless is our most popular product under this specification and A53 pipe is commonly dual certified to A106 B Seamless pipe.



ASTM A53 Grade B is the material under the American steel pipe standard, API 5L Gr.B is also the American standard material, A53 GR.B ERW refers to the electric resistance welded steel pipe of A53 GR.B; API 5L GR.B Welded refers to the material Welded steel pipe of API 5L GR.B.



ASTM A53 seamless steel pipe is an American standard brand. A53-F corresponds to China's Q235 material, A53-A corresponds to China's No. 10 material, and A53-B corresponds to China's No. 20 material.









Product Description:

Product Name ASTM A53 Welded/ Seamless Steel Pipe
Dia. 13.7-914.4mm for Seamless pipe; 21.3-3620mm for Welded pipe
Length 3m -12m or as required
Thickness 1.25-50mm for Seamless pipe; 1.65-65mm for Welded pipe
Standard GB,ASTM,DIN,BS,JIS
Technique Cold drawn / Hot rolled
Surface Treatment 3PE/Fusion bond Expoxy Coating / Black Oil Coating as per customer's requirement
Thickness Tolerance ±0.01mm~ ±0.25mm
Material ASTM A53
Application The pipeline underneath, the groundwater, and the hot water transportation etc.
MOQ 1 ton , We can accept sample order.
Shipment Time Within 15-20 workdays after receiving deposit or workable L/C
Export Packing Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
Capacity 250,000 tons/year











ASTM A53 Chemical Composition:

Type Grade C, Mn, P, S, Cu*, Ni*, Cr*, Mo*, V*,
max max max max max max max max max
Type S (Seamless) A 0.25 0.95 0.05 0.05 0.4 0.4 0.4 0.15 0.08
B 0.3 1.2 0.05 0.05 0.4 0.4 0.4 0.15 0.08
Type E (Electric-resistance Welded) A 0.25 0.95 0.05 0.05 0.4 0.4 0.4 0.15 0.08
B 0.3 1.2 0.05 0.05 0.4 0.4 0.4 0.15 0.08
Type F (Furnace-welded) A 0.3 1.2 0.05 0.05 0.4 0.4 0.4 0.15 0.08











ASTM A53 Physical properties :

  Grade A Grade B
Tensile Strength, min., psi, (MPa) 48,000 (330) 60,000 (415)
Yield Strength, min., psi, (MPa) 30,000 (205) 35,000 (240)



















Astm A53 Welded Seamless Carbon Steel Pipe For Chilled Water 0



Astm A53 Welded Seamless Carbon Steel Pipe For Chilled Water 1















FAQ:



Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.



Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q3. What are the advantages of your company ?

A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.



Q4: What is the terms of packing?

A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.



Q5:What is your delivery time?

A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.



Q6. Can you provide sample ?

A7: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.



Q7. How many coutries you already exported ?

A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
