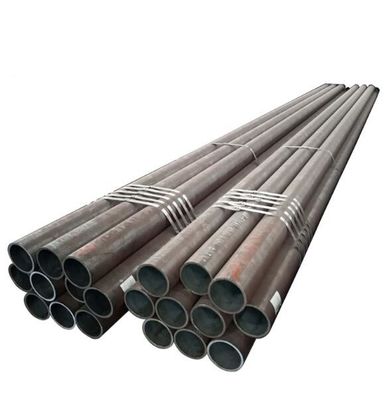

Product Details
Place of Origin: Shandong China
Brand Name: ZGMC
Certification: ISO TUV SGS BIS CE
Model Number: Carbon Steel Pipe/ Tube
Payment & Shipping Terms
Minimum Order Quantity: 3Tons
Price: Negotiable
Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time: 5-15days depend on the quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability: 5000Tons Per Months
Material: |
Q345 Carbon Steel |
Dia.: |
15-2200mm |
Thickness: |
0.8-26.5mm For ERW, 4.0-60mm For SMLS |
Length: |
5-12m Or As Required |
Technique: |
Cold Drawn/ Hot Rolled |
Standard: |
GB/T700,ASTM |
Surface: |
3PE/Fusion Bond Expoxy Coating / Black Oil Coating As Per Customer's Requirement |
Application: |
Oil And Gas, Power Generation, Heat Transfer Etc. |
Material: |
Q345 Carbon Steel |
Dia.: |
15-2200mm |
Thickness: |
0.8-26.5mm For ERW, 4.0-60mm For SMLS |
Length: |
5-12m Or As Required |
Technique: |
Cold Drawn/ Hot Rolled |
Standard: |
GB/T700,ASTM |
Surface: |
3PE/Fusion Bond Expoxy Coating / Black Oil Coating As Per Customer's Requirement |
Application: |
Oil And Gas, Power Generation, Heat Transfer Etc. |
Q345 steel is one kind of Chinese standardized low alloy, medium tensile strength steel made with a hot-rolling process, used for a number of manufacturing purposes. To some extent, the Q345 possesses the same property and composition of ASME A572, namely the Q345 is equivalent to A572.
Q345 has good comprehensive mechanical properties, low temperature performance, good plasticity and weldability. It is used as the structure, mechanical parts, building structure, general metal structural parts, heat, etc. bearing dynamic load for medium and low pressure vessels, oil tanks, vehicles, cranes, mining machinery, power stations, bridges, etc Used in rolling or normalizing state, it can be used for various structures in cold area below – 40 ℃.
Q345 can be divided into Q345A, Q345B, Q345C, Q345D and Q345E by grade. What they represent is that the impact temperature is different. Q345A, no impact; Q345B, impact at 20 ° normal temperature; Q345C, 0 degree impact; Q345D, is – 20 degree impact; Q345E, is – 40 degree impact. At different impact temperature, the impact value is different.
| Product Name | Carbon Steel Tube/Pipe |
| Dia. | 15-1200mm |
| Length | 3m -12m or as required |
| Thickness | 0.5-26.5mm for ERW, 4.0-80mm for SMLS |
| Standard | GB,ASTM,DIN,BS,JIS |
| Technique | Cold / Hot rolled |
| Surface Treatment | 3PE/Fusion bond Expoxy Coating / Black Oil Coating as per customer's requirement |
| Thickness Tolerance | ±0.01mm~ ±0.25mm |
| Material | Q345 |
| Application | Oil and gas, power generation, heat transfer etc. |
| MOQ | 1 ton , We can accept sample order. |
| Shipment Time | Within 15-20 workdays after receiving deposit or workable L/C |
| Export Packing | Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit for all kinds of transport,or as required |
| Capacity |
250,000 tons/year |
Chemical Composition:
| Grade | C | Si | Mn | P | S | V | Nb | Ti | AL |
| ≤% | ≤% | ≤% | ≤% | ≤% | % | % | % | ≥% | |
| Q345A | 0.20 | 0.55 | 1.70 | 0.045 | 0.045 | 0.02-0.15 | 0.015-0.060 | 0.02-0.20 | / |
| Q345B | 0.20 | 0.55 | 1.70 | 0.040 | 0.045 | 0.02-0.15 | 0.015-0.060 | 0.02-0.20 | / |
| Q345C | 0.20 | 0.55 | 1.70 | 0.035 | 0.035 | 0.02-0.15 | 0.015-0.060 | 0.02-0.20 | 0.015 |
| Q345D | 0.18 | 0.55 | 1.80 | 0.030 | 0.030 | 0.02-0.15 | 0.015-0.060 | 0.02-0.20 | 0.015 |
| Q345E | 0.18 | 0.55 | 1.80 | 0.025 | 0.025 | 0.02-0.15 | 0.015-0.060 | 0.02-0.20 | 0.015 |
Physical properties :
| Grade | Tensile strength (MPa) | Yield strength (MPa) | Elongation δ5≥(%) |
| Q345A (thickness≦16mm) | 470-630 | 345 | 21 |
| Q345B(thickness≦16mm) | 470-630 | 345 | 21 |
| Q345C(thickness16-35mm) | 470-630 | ≥325 | 22 |
| Q345D(thickness35-50mm) | 490-675 | ≥295 | 22 |
| Q345E(thickness50-100mm) | 490-675 | ≥275 | 22 |
FAQ:
Q1. What are your company's main products ?
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.
Q3. What are the advantages of your company ?
A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q4: What is the terms of packing?
A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.
Q5:What is your delivery time?
A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q6. Can you provide sample ?
A7: We can provide the samll samples in stock for free, as long as you contact us.
Customized samples will take about 5-7days.
Q7. How many coutries you already exported ?
A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
