Product Details
Place of Origin: Shandong China
Brand Name: ZGMC
Certification: ISO TUV SGS BIS CE
Model Number: Stainless Steel Coil
Payment & Shipping Terms
Minimum Order Quantity: 3Tons
Price: Negotiable
Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time: 5-15days depend on the quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability: 5000Tons Per Months
Product Name: |
Stainless Steel Coils |
Thickness Tolerance: |
±1% |
Thickness: |
0.20-3.00mm |
Finish: |
2B/BA/NO.1/HL/8K |
Technique: |
Cold Rolled |
Standard: |
AISI, JIS, ASTM, DIN, EN, GB |
Width: |
1000/1220/1250/1500/1800/2000mm, 1000-2000mm, |
Name: |

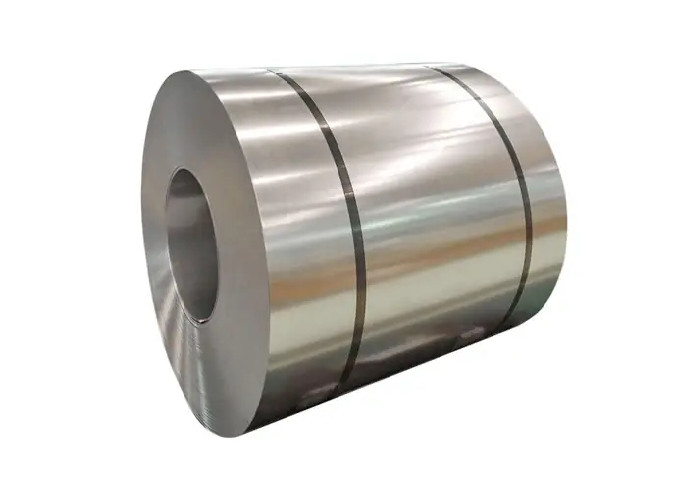

Cold Rolled Technique 2B BA 18 Gauge Stainless Steel 304 Coil |
Product Name: |
Stainless Steel Coils |
Thickness Tolerance: |
±1% |
Thickness: |
0.20-3.00mm |
Finish: |
2B/BA/NO.1/HL/8K |
Technique: |
Cold Rolled |
Standard: |
AISI, JIS, ASTM, DIN, EN, GB |
Width: |
1000/1220/1250/1500/1800/2000mm, 1000-2000mm, |
Name: |
Cold Rolled Technique 2B BA 18 Gauge Stainless Steel 304 Coil |
Product Description:
|
Main Grades and Standards
|
||
|
Standards
|
AISI, ASTM, DIN, EN,
GB and JIS;
|
ASTM A240/SA240, ASTM B688, ASTM B463/SB463
ASTM B168/SB168, ASTM B443/SB443, B424/SB424,
B625/SB625, B575/SB575, JIS G4304, G4305,
GB/T 4237, GB/T 8165, BS 1449, DIN17460, DIN 17441 |
|
Materials
(Grade)
|
200series
|
201, 202, 202cu, 204
|
|
300series
|
301, 302, 303, 304, 304L, 304H, 309, 309s, 310,
310S, 316, 316L, 316H, 316Ti, 317L, 321, 347
|
|
|
400series
|
409,409L,410,420,430,431,440
|
|
|
Duplex/Super Duplex
Stainless
|
Duplex2205/s31803/s32205, Duplex2507, S32750,
S32760
|
|
|
Nickel-base Alloy
|
S31254, N08367, N08926, N08904, N08020, N06600,
N06625, N08825, N08031, N06059, N10276, N06022,
N10665, N10665, N10675,
N02200/N02201, N08800, N08810, S30815 |
|
|
Others
|
330/N08330, 333/N06333, 660, 630, 631, 17-4ph,
17-7 ph, etc.
|
|
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 -3.0 |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |
Packaging and shipping:
20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP: 12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC: 12032mm(Lengh)x2352mm(Width)x2698mm(High)
FAQ:
Q: What is the terms of packing?
A: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.
Q:What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q. Can you provide sample ?
A: We can provide the samll samples in stock for free, as long as you contact us.
Customized samples will take about 5-7days.
Q. How many coutries you already exported ?
A: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
Q. What are your company's main products ?
A: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q. How do you control quality ?
A: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.
Q. What are the advantages of your company ?
A: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
