Product Details
Place of Origin: Shandong China
Brand Name: ZGMC
Certification: ISO TUV SGS BIS CE
Model Number: Galvanized Steel Pipe
Payment & Shipping Terms
Minimum Order Quantity: 3Tons
Price: Negotiate
Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time: 5-15days depend on the quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability: 5000Tons Per Months
Standard: |
JIS, AISI, ASTM, GB, DIN, EN, Etc |
Materials: |
Q195/Q215/Q235/Q345 |
Section Shape: |
Roud / Sqaure/ Rectangular |
Out Diameter: |
21.3mm---406.4mm |
Length: |
1-12m |
Surface Treatment: |
Black/ Galvanized/ Oiled |
Processing Service: |
Bending, Welding, Decoiling, Punching, Cutting |
Application: |
Structure Pipe |
Standard: |
JIS, AISI, ASTM, GB, DIN, EN, Etc |
Materials: |
Q195/Q215/Q235/Q345 |
Section Shape: |
Roud / Sqaure/ Rectangular |
Out Diameter: |
21.3mm---406.4mm |
Length: |
1-12m |
Surface Treatment: |
Black/ Galvanized/ Oiled |
Processing Service: |
Bending, Welding, Decoiling, Punching, Cutting |
Application: |
Structure Pipe |

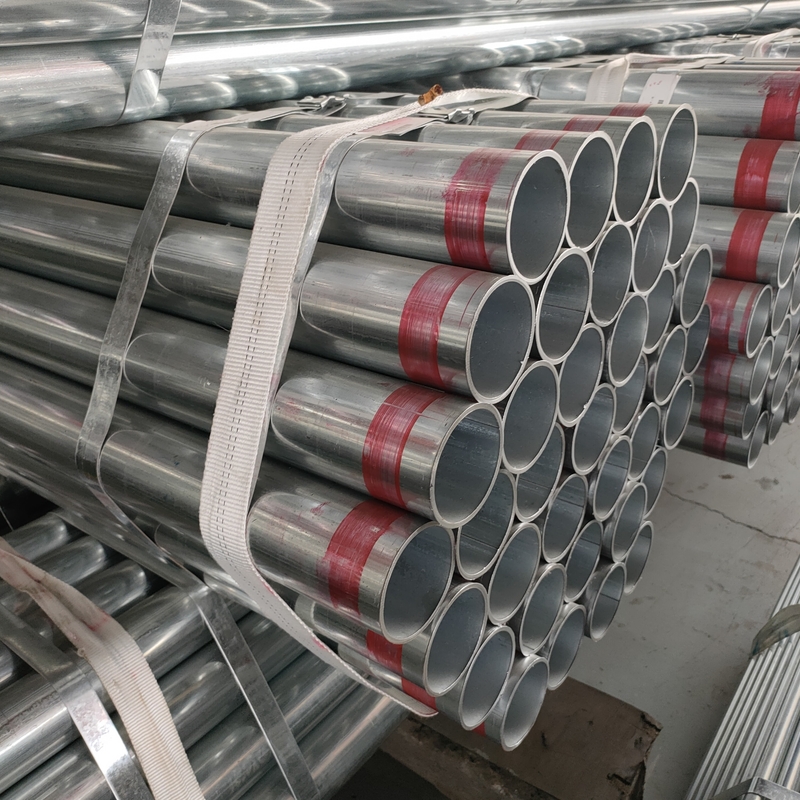

2 Inch Astm A795 Gr. A / B Mild Carbon Steel Profile Galvanized Steel Pipe
Product Description:
The combination of relatively low cost and material safety made galvanized steel the clear-cut winner when constructing potable water systems. However, as sometimes happens in the plumbing industry, the passage of time revealed flaws with galvanized steel. Ultimately, these flaws demonstrated that new alternatives needed to be used for water distribution pipes.
However, even the best-galvanized pipes will eventually lose their zinc coating due to erosion and the ravages of time and nature. Once that occurs, the raw steel is exposed to moisture and oxygen, and the rusting process commences.
|
Commodity Name
|
2 Inch Astm A795 Gr. A / B Mild Carbon Steel Profile Galvanized Steel Pipe |
|
Length
|
Normal 5.8m, 6m ,random length can be customized
|
| Material |
Q195,Q215,Q235,Q355, Gr.A, Gr.B, S235-JRH,STK400,STK500
|
| Outer Diameter | 1/2”~8” 20~219mm |
|
Zinc Coating
|
40~275g/㎡
|
| Tolerance |
OD:+/-0.5mm
|
|
WT: +/-0.05mm
|
|
|
|
Length: +/-20mm
|
|
Thickness
|
0.8~2.75mm |
| Straightness |
As Per Standard
|
|
Standard
|
GB/T6728-2016 ,EN10219, ASTM A500, EN10305, AS1163
|
|
Certificate
|
ISO 9001,IS014001,ISO45001,ISO50001,CE,LR,ICC,SGS.BV etc
|
|
Surface Treatment
|
Zinc plated ,Passivation, Marking,Embossing
|
|
Pipe End
|
Plain end / Blunt end / Screwed and socked & protected by plastic caps
|
|
Deep Processing
|
Threaded,sockets,end cap,painting,powder coated, oiled, punching,shrink,woven bag, stamping,embossing ect.
|
| Packing |
In Bundles, Water Proof Plastic Packing ,in Bulk etc
|
|
Trade Term
|
FOB, CFR, CIF, EXW, FCA
|
|
Applications
|
Steel Structure,Scaffolding,Fence,Conduit,Greenhouse,Decorative pipe, Post, Roofing
|
|
Techinical
|
ERW (high - frequency welded)
|
|
MOQ
|
Marketing (normal) Size: 0 MOQ ,OEM Size: 10 tons for each size
|
|
Payment Term
|
T/T, LC, Or as discussion
|
|
Delivery Time
|
10-30 days (based on size & quantity) after receiving down payment by T/T or LC.If customers inquiry pipes in stock, delivery time in 5days
|
Dimension Tolerance:
| Processing Way | Cylinder Barrel ID (mm) | Max Length (mtr) | Straightness (mm/mtr) | ID Tolerance | Wall Thickness Tolerance (mm) | ID Roughness (μm) |
| Cold Drawn | 40-320 | 12 | 0.2-0.5 | H8-H10 | ±5% | 0.8-1.6 |
| Cold Rolled | 12-100 | 12 | 0.2-0.5 | H8-H10 | ±5% | 0.8-1.2 |
| Cold Drawn+Honed | 40-500 | 8 | 0.2-0.3 | H7-H9 | ±5% | 0.2-0.8 |
| Cold Drawn-SRB | 40-400 | 7 | 0.2-0.3 | H8-H9 | ± 5% | 0.2-0.4 |
| Deepth Drilling-Honed | 320-1100 | 8 | 0.2-0.3 | H7-H9 | ±8% | 0.2-0.8 |
| Deepth Drilling-SRB | 320-600 | 7 | 0.2-0.3 | H8-H9 | ±8% | 0.2-0.4 |
Main Application:
While galvanized pipe is known for its use in construction, its rust-protective coating makes it a preferrable metal option for automotive applications. Galvanized steel is an excellent material for corrosion-resistant fasteners.
Galvanized steel pipe is used in numerous types of industrial applications, including:
Package:
1. Bundle Packing.
2. Plain end or vanished as per customer’s request.
3. Wrapped in waterproof paper.
4. Sackcloth with several steel strips.
5. Pack in heavy tri-wall boxes.
FAQ:
Q: Are you a manufacturer?
A: Yes , we are a manufacturer, We have own factory, which is located in Wuxi,CHINA.
Q: Can we visit your factory ?
A: Warmly welcome once we have your schedule we will pick you up .
Q: How much about your annual production capacity?
A: Total annual output of 600,000 tons.
Q: Can we get the some samples?Any charges?
A: Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
Q: How can we get the offer?
A: Please offer the specification of the product,such as material,size,shape,etc.So wecan give the best offer.
