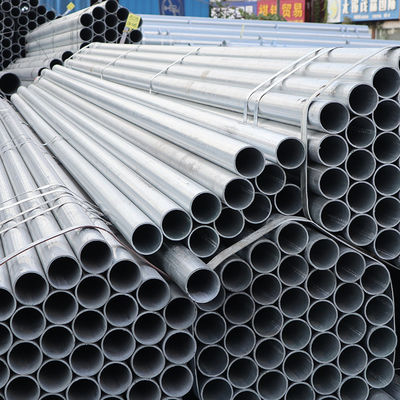

DIN GB Mild Carbon Steel Tube 12m Length Decoiling For Warehouse

Place of Origin China
Brand Name BAO STEEL MITTEL
Certification SGS ISO MTC
Model Number Galvanized Steel Pipe
Minimum Order Quantity 1Ton
Price Negotiate
Packaging Details in bundle, plastic bags, thin film, wooden pallet, standard seaworthy export packing or as customer demands
Delivery Time 15 days after deposit
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Standard JIS, AISI, ASTM, GB, DIN, EN, Etc Application Structure Pipe
Materials Q195/Q215/Q235/Q345 Surface Treatment Black/ Galvanized/ Oiled
Out Diameter 21.3mm---406.4mm Length 1-12m
Section Shape Roud / Sqaure/ Rectangular Processing Service Bending, Welding, Decoiling, Punching, Cutting
High Light

DIN GB Mild Carbon Steel Tube

,

Decoiling Mild Carbon Steel Tube

,

12m Length Galvanized Steel Pipe

Leave a Message
Product Description

Mild Carbon Steel Galvanized Steel Pipe Tube For Steel Structure Warehouse





Product Description:

Stainless steel prevents corrosion similar to galvanization, however, galvanization of steel is far more economical. If you are working with a budget, you will want to look into galvanizing existing stock versus using more exotic materials.



Hot dip galvanizing is a straightforward process. The steel is first chemically cleaned or cleaned via sandblasting. Then, the steel is pickled to remove mill scale. A flux, often zinc ammonium chloride, is applied to the steel to prevent flash rusting. Following this step, the steel is dipped into a molten zinc bath. The molten zinc bonds to the iron in the steel, thus creating a protective coat on each surface of the steel. The zinc-coated steel is cooled (quenched) in a cooling tank and re-stenciled once cooled. The outer layer will not crack, flake or peel when a steel sheet is spun into a finished part.







Commodity Name Mild Carbon Steel Galvanized Steel Pipe Tube For Steel Structure Warehouse
Length Normal 5.8m, 6m ,random length can be customized
Material Q195,Q215,Q235,Q355, Gr.A, Gr.B, S235-JRH,STK400,STK500
Outer Diameter 1/2”~8” 20~219mm
Zinc Coating 40~275g/㎡
Tolerance OD:+/-0.5mm
  WT: +/-0.05mm
  Length: +/-20mm
Thickness 0.8~2.75mm
Straightness As Per Standard
Standard GB/T6728-2016 ,EN10219, ASTM A500, EN10305, AS1163
Certificate ISO 9001,IS014001,ISO45001,ISO50001,CE,LR,ICC,SGS.BV etc
Surface Treatment Zinc plated ,Passivation, Marking,Embossing
Pipe End Plain end / Blunt end / Screwed and socked & protected by plastic caps
Deep Processing Threaded,sockets,end cap,painting,powder coated, oiled, punching,shrink,woven bag, stamping,embossing ect.
Packing In Bundles, Water Proof Plastic Packing ,in Bulk etc
Trade Term FOB, CFR, CIF, EXW, FCA
Applications Steel Structure,Scaffolding,Fence,Conduit,Greenhouse,Decorative pipe, Post, Roofing
Techinical ERW (high - frequency welded)
MOQ Marketing (normal) Size: 0 MOQ ,OEM Size: 10 tons for each size
Payment Term T/T, LC, Or as discussion
Delivery Time 10-30 days (based on size & quantity) after receiving down payment by T/T or LC.If customers inquiry pipes in stock, delivery time in 5days



DIN GB Mild Carbon Steel Tube 12m Length Decoiling For Warehouse 0





Dimension Tolerance:



Processing Way Cylinder Barrel ID (mm) Max Length (mtr) Straightness (mm/mtr) ID Tolerance Wall Thickness Tolerance (mm) ID Roughness (μm)
Cold Drawn 40-320 12 0.2-0.5 H8-H10 ±5% 0.8-1.6
Cold Rolled 12-100 12 0.2-0.5 H8-H10 ±5% 0.8-1.2
Cold Drawn+Honed 40-500 8 0.2-0.3 H7-H9 ±5% 0.2-0.8
Cold Drawn-SRB 40-400 7 0.2-0.3 H8-H9 ± 5% 0.2-0.4
Deepth Drilling-Honed 320-1100 8 0.2-0.3 H7-H9 ±8% 0.2-0.8
Deepth Drilling-SRB 320-600 7 0.2-0.3 H8-H9 ±8% 0.2-0.4







Benefits of Galvanized Steel:

Galvanized steel is most commonly used for construction. Galvanizing achieves the following two lines of defense:

1. Protection from Oxidation
Galvanizing provides additional protection from corrosive substances in the atmosphere. The zinc is more reactive than the iron in steel, so atmospheric oxygen will first react with the zinc rather than the iron, thereby oxidizing the zinc coating and delaying corrosion to the underlying steel.



2. Sacrificial Layer
The zinc coating provides a physical barrier that serves as a sacrificial seal. As a result, any damage from potential impact, scratching, drilling and cutting will affect the outer zinc barrier first, leaving the underlying steel protected.





Package:



1. Bundle Packing.

2. Plain end or vanished as per customer’s request.

3. Wrapped in waterproof paper.

4. Sackcloth with several steel strips.

5. Pack in heavy tri-wall boxes.



DIN GB Mild Carbon Steel Tube 12m Length Decoiling For Warehouse 1

DIN GB Mild Carbon Steel Tube 12m Length Decoiling For Warehouse 2

DIN GB Mild Carbon Steel Tube 12m Length Decoiling For Warehouse 3





FAQ:


Q: Are you a manufacturer?
A: Yes , we are a manufacturer, We have own factory, which is located in Wuxi,CHINA.


Q: Can we visit your factory ?
A: Warmly welcome once we have your schedule we will pick you up .


Q: How much about your annual production capacity?
A: Total annual output of 600,000 tons.


Q: Can we get the some samples?Any charges?
A: Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.


Q: How can we get the offer?
A: Please offer the specification of the product,such as material,size,shape,etc.So wecan give the best offer.
