Product Details
Place of Origin: Shandong China
Brand Name: ZGMC
Certification: ISO TUV SGS BIS CE
Model Number: Stainless Steel Tube
Payment & Shipping Terms
Minimum Order Quantity: 3Tons
Price: negotiation
Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time: 5-15days depend on the quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability: 5000Tons Per Months
Material: |
Stainless Steel |
Standard: |
JIS, AiSi, ASTM, GB, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, Etc |
Tube Size: |
OD(4-190mm)*WT(0.5-15mm) |
Pipe Size: |
OD(16-914mm)*WT(2.0-50mm) |
Welding Line Type: |
Seamless |
Processing Service: |
Cutting |
Surface: |
Polishing |
Technique: |
Hot Rolled , Cold Rolled , Extrusion |
Ends: |
Plain Ends Or Beveled Ends |
Application: |
Industry/Construction |
Material: |
Stainless Steel |
Standard: |
JIS, AiSi, ASTM, GB, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, Etc |
Tube Size: |
OD(4-190mm)*WT(0.5-15mm) |
Pipe Size: |
OD(16-914mm)*WT(2.0-50mm) |
Welding Line Type: |
Seamless |
Processing Service: |
Cutting |
Surface: |
Polishing |
Technique: |
Hot Rolled , Cold Rolled , Extrusion |
Ends: |
Plain Ends Or Beveled Ends |
Application: |
Industry/Construction |

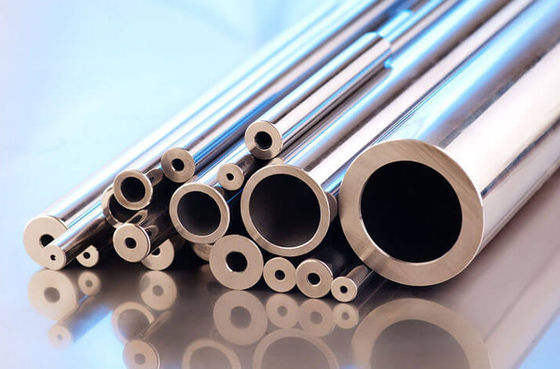

SS Welded Pipe SS ERW Pipes ASTM A312 Stainless Steel TP Seamless Pipe Stainless Steel Welded Pipe
Stainless steel is the iron alloy that is with chromium element of about 10.5%. Chromium alloy is producing oxide thin layer at the steel surface that is called a passive layer. This is thus preventing corrosion of the product surface. Increase in the chromium amount provides the greater corrosion resistance. Stainless steel alloy is also containing different amount of alloys namely manganese, carbon and silicon.
Main application:
- Chemical plants
- Aviation fields
- Marine equipment
- Cryogenic transportation
- Medical & architectural industries
| Product Name | SS Welded Pipe SS ERW Pipes ASTM A312 Stainless Steel TP Seamless Pipe Stainless Steel Welded Pipe | |
| Steel grade | 300 series | |
| Standard |
ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605, GB13296 |
|
| Material |
304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201, 202 |
|
| Surface | Polishing,annealing,pickling,bright | |
| Type | hot rolled and cold rolled | |
| stainless steel round pipe/tube | ||
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
| Outer diameter | 6mm-2500mm (3/8"-100") | |
| stainless steel square pipe/tube | ||
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
| Outer diameter | 4mm*4mm-800mm*800mm | |
| stainless steel rectangular pipe/tube | ||
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
| Outer diameter | 6mm-2500mm (3/8"-100") | |
| Length | 4000mm,5800mm,6000mm,12000mm,or as required. | |
| Trade terms | Price terms | FOB,CIF,CFR,CNF,Ex-work |
| Payment terms | T/T,L/C,westen union | |
| Delivery time | Prompt delivery or as the order quantity. | |
| Export to | Ireland,Singapore,Indonesia,Ukraine,Saudi Arabia,Spain,Canada,USA, Brazil,Thailand,Korea,Italy,India,Egypt,Oman,Malaysia,Kuwait,Canada, Viet Nam, Peru,Mexico,Dubai, Russia,etc | |
| Package | Standard export seaworthy package,or as required. | |
| Application |
Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper making,shipbuilding,boiler fields. Pipes also can be made according to the customer's required. |
|
| Contact | If you have any questions,please feel free to contact me. | |
| Container size |
20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM |
|
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 -3.0 |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |
Q1. What are your company's main products ?
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.
Q3: What is the terms of packing?
A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.
Q4:What is your delivery time?
A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5. What are the advantages of your company ?
A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q6. How many coutries you already exported ?
A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
Q7. Can you provide sample ?
A7: We can provide the samll samples in stock for free, as long as you contact us.
Customized samples will take about 5-7days.
