1 NPS Stainless Steel Seamless Pipe Schedule 80 Stainless Steel 304l Pipes

Name: 1 NPS Stainless Steel Seamless Pipe Schedule 80 Stainless Steel 304l Pipes
Brand: Shandong Chasing Light Metal Co., Ltd.
SKU: Stainless Steel Tube
Availability: InStock

Product Details

Place of Origin: Shandong China

Brand Name: ZGMC

Certification: ISO TUV SGS BIS CE

Model Number: Stainless Steel Tube

Payment & Shipping Terms

Minimum Order Quantity: 3Tons

Price: negotiation

Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.

Delivery Time: 5-15days depend on the quantity

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA

Supply Ability: 5000Tons Per Months

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                1 NPS stainless steel 304l pipes, Schedule 80 Stainless Steel Seamless Pipe, 304L Stainless Steel Seamless Pipe


Product Name:	Stainless Steel Pipe	Standard:	JIS, AiSi, ASTM, GB, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, Etc
Tube Size:	OD(4-190mm)*WT(0.5-15mm)	Pipe Size:	OD(16-914mm)*WT(2.0-50mm)
Welding Line Type:	Seamless	Processing Service:	Cutting
Surface:	Polishing	Technique:	Hot Rolled , Cold Rolled , Extrusion
Ends:	Plain Ends Or Beveled Ends	Name:	1 NPS Stainless Steel Seamless Pipe Schedule 80 Stainless Steel 304l Pipes

Product Name:	Stainless Steel Pipe
Standard:	JIS, AiSi, ASTM, GB, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, Etc
Tube Size:	OD(4-190mm)*WT(0.5-15mm)
Pipe Size:	OD(16-914mm)*WT(2.0-50mm)
Welding Line Type:	Seamless
Processing Service:	Cutting
Surface:	Polishing
Technique:	Hot Rolled , Cold Rolled , Extrusion
Ends:	Plain Ends Or Beveled Ends
Name:	1 NPS Stainless Steel Seamless Pipe Schedule 80 Stainless Steel 304l Pipes

1 NPS Stainless Steel Seamless Pipe Schedule 80 Stainless Steel 304l Pipes

Product Description:

1 NPS Stainless Steel Seamless Pipe Schedule 80 Stainless Steel 304l Pipes are seamless pipes made of stainless steel with a nominal pipe size (NPS) of 1 inch and a schedule of 80.

The stainless steel used is grade 304L, which is a low-carbon version of grade 304 stainless steel. Grade 304L stainless steel offers excellent corrosion resistance, making it suitable for a wide range of applications.

The pipes are seamless, meaning they do not have a welded seam along their length. Seamless construction provides added integrity and strength compared to welded pipes.

The schedule 80 refers to the pipe's wall thickness, which is thicker than schedules with lower numbers. A thicker wall thickness offers increased pressure resistance and durability.

These pipes are commonly used in industries such as chemical processing, oil and gas, food and beverage, and pharmaceuticals, where corrosion resistance and cleanliness are important considerations.

1 NPS Stainless Steel Seamless Pipe Schedule 80 Stainless Steel 304l Pipes are designed to meet specific industry standards and specifications to ensure their quality and performance.

It's important to note that the specific application and requirements may vary. Proper installation and maintenance are crucial to maximize the lifespan and performance of these pipes. When using these pipes, it's advisable to follow relevant codes and standards and consult with professionals to ensure their suitability for the intended use.

ANSI DIMENSION B36.19
Nominal Size		OD	Wall Thickness
NPS	DN	mm	SCH5S	SCH10S	SCH10	SCH20	SCH30	SCH40S	STD	SCH40	SCH60	SCH80S	XS	SCH80	SCH100	SCH120	SCH140	SCH160	XXS
1∕8	6	10.3	-	1.24	-	-	-	1.73	1.73	1.73	-	2.41	2.41	2.41	-	-	-	-	-
1∕4	8	13.7	-	1.65	-	-	-	2.24	2.24	2.24	-	3.02	3.02	3.02	-	-	-	-	-
3∕8	10	17.2	-	1.65	-	-	-	2.31	2.31	2.31	-	3.2	3.2	3.2	-	-	-	-	-
1∕2	15	21.3	1.65	2.11	-	-	-	2.77	2.77	2.77	-	3.73	3.73	3.73	-	-	-	4.78	7.47
3∕4	20	26.7	1.65	2.11	-	-	-	2.87	2.87	2.87	-	3.91	3.91	3.91	-	-	-	5.56	7.82
1	25	33.4	1.65	2.77	-	-	-	3.38	3.38	3.38	-	4.55	4.55	4.55	-	-	-	6.35	9.09
1 1∕4	32	42.2	1.65	2.77	-	-	-	3.56	3.56	3.56	-	4.85	4.85	4.85	-	-	-	6.35	9.7
1 1∕2	40	48.3	1.65	2.77	-	-	-	3.68	3.68	3.68	-	5.08	5.08	5.08	-	-	-	7.14	10.15
2	50	60.3	1.65	2.77	-	-	-	3.91	3.91	3.91	-	5.54	5.54	5.54	-	-	-	8.74	11.07
2 1∕2	65	73	2.11	3.05	-	-	-	5.16	5.16	5.16	-	7.01	7.01	7.01	-	-	-	9.53	14.02
3	80	88.9	2.11	3.05	-	-	-	5.49	5.49	5.49	-	7.62	7.62	7.62	-	-	-	11.13	15.24
3 1∕2	90	101.6	2.11	3.05	-	-	-	5.74	5.74	5.74	-	8.08	8.08	8.08	-	-	-	-	-
4	100	114.3	2.11	3.05	-	-	-	6.02	6.02	6.02	-	8.56	8.56	8.56	-	11.13	-	13.49	17.12
5	125	141.3	2.77	3.4	-	-	-	6.55	6.55	6.55	-	9.53	9.53	9.53	-	12.7	-	15.88	19.05
6	150	168.3	2.77	3.4	-	-	-	7.11	7.11	7.11	-	10.97	10.97	10.97	-	14.27	-	18.26	21.95
8	200	219.1	2.77	3.76	-	6.35	7.04	8.18	8.18	8.18	10.31	12.7	12.7	12.7	15.09	18.26	20.62	23.01	22.23
10	250	273.1	3.4	4.19	-	6.35	7.8	9.27	9.27	9.27	12.7	12.7	12.7	15.09	18.26	21.44	25.4	28.58	25.4
12	300	323.9	3.96	4.57	-	6.35	8.38	9.53	9.53	10.31	14.27	12.7	12.7	17.48	21.44	25.4	28.58	33.32	25.4
14	350	355.6	3.96	4.78	6.35	7.92	9.53	-	9.53	11.13	15.09	-	12.7	19.05	23.83	27.79	31.75	35.71	-
16	400	406.4	4.19	4.78	6.35	7.92	9.53	-	9.53	12.7	16.66	-	12.7	21.44	26.19	30.96	36.53	40.49	-
18	450	457.2	4.19	4.78	6.35	7.92	11.13	-	9.53	14.27	19.05	-	12.7	23.83	29.36	34.93	39.67	45.24	-
20	500	508	4.78	5.54	6.35	9.53	12.7	-	9.53	15.09	20.62	-	12.7	26.19	32.54	38.1	44.45	50.01	-
22	550	558.8	4.78	5.54	6.35	9.53	12.7	-	9.53	-	22.23	-	12.7	28.58	34.93	41.28	47.63	53.98	-
24	600	609.6	5.54	6.35	6.35	9.53	14.27	-	9.53	17.48	24.61	-	12.7	30.96	38.89	46.02	52.37	59.54	-
26	650	660.4	-	-	7.92	12.7	-	-	9.53	-	-	-	12.7	-	-	-	-	-	-
28	700	711.2	-	-	7.92	12.7	15.88	-	9.53	-	-	-	12.7	-	-	-	-	-	-
30	750	762	6.35	7.92	7.92	12.7	15.88	-	9.53	-	-	-	12.7	-	-	-	-	-	-
32	800	812.8	-	-	7.92	12.7	15.88	17.48	9.53	17.48	-	-	12.7	-	-	-	-	-	-
34	850	863.6	-	-	7.92	12.7	15.88	17.48	9.53	17.48	-	-	12.7	-	-	-	-	-	-
36	900	914.4	-	-	7.92	12.7	15.88	19.05	9.53	19.05	-	-	12.7	-	-	-	-	-	-
38	950	965.2	-	-	-	-	-	-	9.53	-	-	-	12.7	-	-	-	-	-	-
40	1000	1016	-	-	-	-	-	-	9.53	-	-	-

Chemical Composition:

Grade	C	Si	Mn	P	S	Ni	Cr	Mo
201	≤0 .15	≤0 .75	5. 5-7. 5	≤0.06	≤ 0.03	3.5 -5.5	16 .0 -18.0	-
202	≤0 .15	≤l.0	7.5-10.0	≤0.06	≤ 0.03	4.0-6.0	17.0-19.0	-
301	≤0 .15	≤l.0	≤2.0	≤0.045	≤ 0.03	6.0-8.0	16.0-18.0	-
302	≤0 .15	≤1.0	≤2.0	≤0.035	≤ 0.03	8.0-10.0	17.0-19.0	-
304	≤0 .0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	8.0-10.5	18.0-20.0	-
304L	≤0.03	≤1.0	≤2.0	≤0.035	≤ 0.03	9.0-13.0	18.0-20.0	-
309S	≤0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	12.0-15.0	22.0-24.0	-
310S	≤0.08	≤1.5	≤2.0	≤0.035	≤ 0.03	19.0-22.0	24.0-26.0
316	≤0.08	≤1.0	≤2.0	≤0.045	≤ 0.03	10.0-14.0	16.0-18.0	2.0-3.0
316L	≤0 .03	≤1.0	≤2.0	≤0.045	≤ 0.03	12.0 - 15.0	16 .0 -1 8.0	2.0 -3.0
321	≤ 0 .08	≤1.0	≤2.0	≤0.035	≤ 0.03	9.0 - 13 .0	17.0 -1 9.0	-
630	≤ 0 .07	≤1.0	≤1.0	≤0.035	≤ 0.03	3.0-5.0	15.5-17.5	-
631	≤0.09	≤1.0	≤1.0	≤0.030	≤0.035	6.50-7.75	16.0-18.0	-
904L	≤ 2 .0	≤0.045	≤1.0	≤0.035	-	23.0·28.0	19.0-23.0	4.0-5.0
2205	≤0.03	≤1.0	≤2.0	≤0.030	≤0.02	4.5-6.5	22.0-23.0	3.0-3.5
2507	≤0.03	≤0.8	≤1.2	≤0.035	≤0.02	6.0-8.0	24.0-26.0	3.0-5.0
2520	≤0.08	≤1.5	≤2.0	≤0.045	≤ 0.03	0.19 -0. 22	0. 24 -0 . 26	-
410	≤0.15	≤1.0	≤1.0	≤0.035	≤ 0.03	-	11.5-13.5	-
430	≤0.1 2	≤0.75	≤1.0	≤ 0.040	≤ 0.03	≤0.60	16.0 -18.0	-

Application:

Applications of 1 NPS Stainless Steel Seamless Pipe Schedule 80 Stainless Steel 304l Pipes:

Chemical processing plants: These pipes are used in transporting corrosive fluids and chemicals due to their corrosion resistance.
Oil and gas industry: The pipes can handle high-pressure applications in the transportation of oil, gas, and other fluids.
Food and beverage processing: Stainless Steel 304l Pipes are suitable for food and beverage applications as they meet hygiene standards.
Pharmaceuticals: In the pharmaceutical industry, these pipes are used for transporting liquids and gases that require a sterile and corrosion-resistant environment.
Power generation plants: The pipes can be found in steam generation systems and heat exchangers.
Water treatment plants: Stainless steel pipes are utilized for transporting and treating water.
Pulp and paper mills: These pipes are used in the processing of paper and pulp.
Marine applications: Due to their corrosion resistance, the pipes are suitable for use in marine environments, such as on ships and offshore platforms.
Construction: Stainless Steel Seamless Pipe Schedule 80 can be used in architectural and structural applications.
General piping systems: The pipes are utilized in various industrial piping systems for fluid conveyance.

The applications of 1 NPS Stainless Steel Seamless Pipe Schedule 80 Stainless Steel 304l Pipes are diverse, spanning across different industries. Their corrosion resistance, durability, and mechanical properties make them a preferred choice for many engineering and industrial applications. However, specific requirements may vary, and it's important to consult relevant specifications and guidelines to ensure the proper selection and use of these pipes for a particular application.

FAQ:

Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.

Q3: What is the terms of packing?

A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.

Q4:What is your delivery time?

A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.

Q5. What are the advantages of your company ?

A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q6. How many coutries you already exported ?

A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.

Q7. Can you provide sample ?

A7: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.

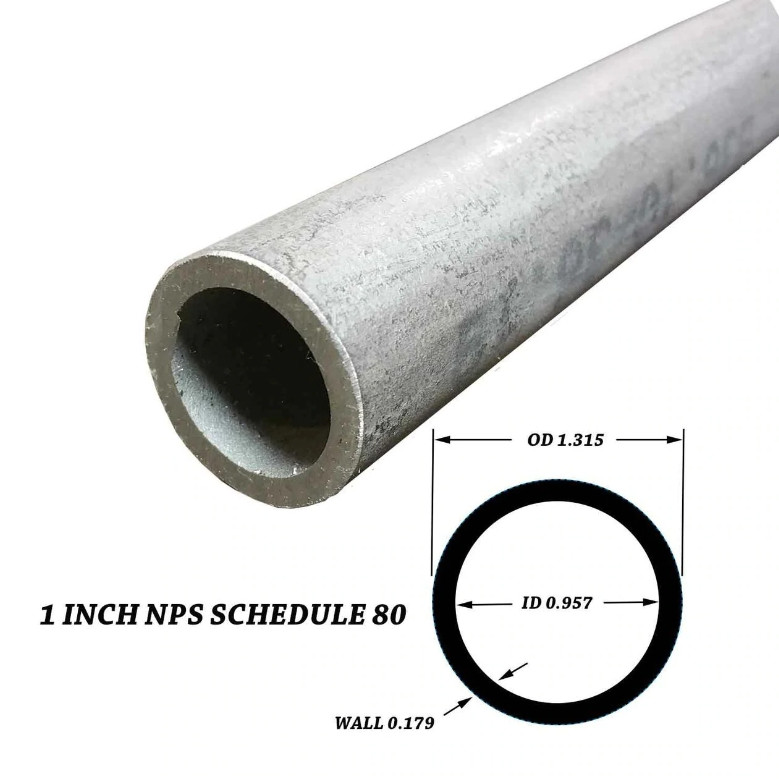

1 NPS Stainless Steel Seamless Pipe Schedule 80 Stainless Steel 304l Pipes 0

1 NPS Stainless Steel Seamless Pipe Schedule 80 Stainless Steel 304l Pipes 1
