Product Details
Place of Origin: Shandong China
Brand Name: ZGMC
Certification: ISO TUV SGS BIS CE
Payment & Shipping Terms
Minimum Order Quantity: 3Tons
Price: Negotiable
Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time: 5-15days depend on the quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability: 5000Tons Per Months
Model Number: |
NM450L,NM450A,NM600,NM400 |
Grade: |
Wear Resistant Steel Sheet |
Standard: |
ASTM，AISI，JIS，GB， DIN，EN |
Type:: |
Steel Plate |
Technique: |
Hot Rolled |
Application: |
Thermal Power Equipment |
Width: |
600-3000mm |
Length: |
1m-12m Or As Required |
Processing Service: |
Cutting |
Common Size: |
1000*2000mm 1500*3000mm 1500*6000mm |
Model Number: |
NM450L,NM450A,NM600,NM400 |
Grade: |
Wear Resistant Steel Sheet |
Standard: |
ASTM，AISI，JIS，GB， DIN，EN |
Type:: |
Steel Plate |
Technique: |
Hot Rolled |
Application: |
Thermal Power Equipment |
Width: |
600-3000mm |
Length: |
1m-12m Or As Required |
Processing Service: |
Cutting |
Common Size: |
1000*2000mm 1500*3000mm 1500*6000mm |

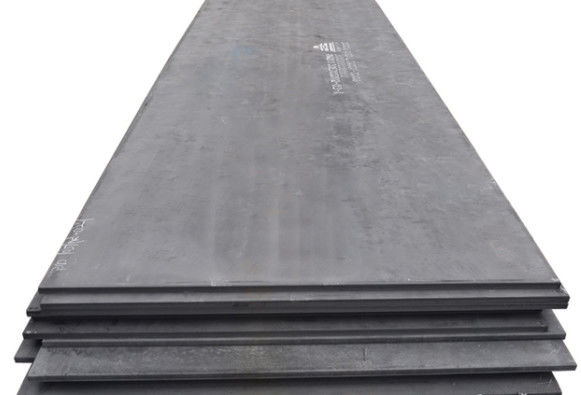

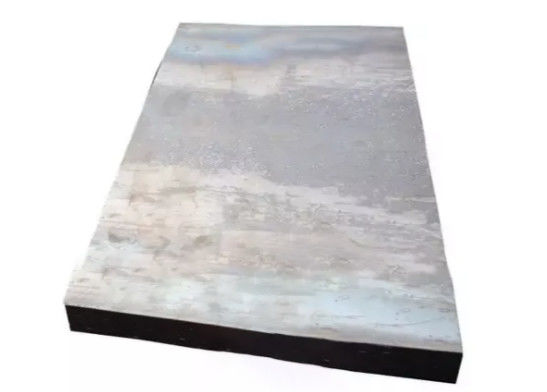

NK-EH360,JFE-EH400,JFE-EH450,JFE-EH500 Wear Resistant Steel Plate Suitable For Mining Industry Machinery
Product Description:
Wear resistant steel plates, also known as Abrasion Resistant(AR) steel plates, are typically made in the as-rolled condition. These types of steel plate products have been developed specifically for long service life in harsh conditions. AR(NM) products are suitable for a variety of applications such as
·Mining industry machinery
·Earth moving machinery
·Heavy wear platforms
·Industrial hoppers, funnels and feeders, etc.
Wear-resistant steel plates have high wear resistance and good impact performance. It can be cut, bended, welded etc. and also can be used to connecting with other structures.Since this kind of steel has so many good characteristics, it is widely used in kinds of different purpose. It is one of the most commonly used materials in manufacturing, industrial and construction fields.
| Product name: | Wear resistant steel plate | |||
| Standard: | GB | ASTM | SSAB OXELOSUND | JIS |
| GRADE: |
NM360,NM400,NM450,NM500, NM550,NM600 |
XAR400,XAR450,XAR500,XAR550 |
400,450 ,500,550, 600 |
NK-EH360,JFE-EH400,JFE-EH450,JFE-EH500 |
| Thickness: | 6.0-200mm,etc | |||
| Width : | 1500-4100mm,etc | |||
| Length : | 2000-12000mm,etc | |||
| Standard : | ASTM,AISI,JIS,GB, DIN,EN | |||
| Certification : | ISO, SGS,BV | |||
| price terms : | FOB,CRF,CIF,EXW all acceptable | |||
| Delivery Detail : | inventory About 5-7； custom-made 25-30 | |||
| Loading port : | any port in China | |||
| Packing : | standard export packing (inside:water proof paper,outside:steel covered with strips and pallets) | |||
| Payment Terms : | T/T, L/C at sight,West Union,D/P,D/A,Paypal | |||
| Container size: | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) | |||
| 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) | ||||
| 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) | ||||
Mechanical property:
|
Grade
|
Tensile strengthc | Elongation | Hardness | -20℃ Impact energy |
| (Mpa) | (%)(min) | (HBW) | AKv/J (min) | |
| NM360 | ≥1100 | 12 | 330-390 | 24 |
| NM400 | ≥1200 | 10 | 370-430 | 24 |
| NM450 | ≥1250 | 7 | 420-480 | 24 |
| NM500 | 470(min) | |||
| NM550 | 530(min) | |||
| NM600 | 570(min) |
Application:
1.Automobile, Bridges, Buildings.
2.Machinery, Pressure vessel industries.
3.Ship building, Engineering construction.
4.Mechanical manufacturing, Pavement slab, ect.
Product package:
The wear resistant steel sheet will be packed in seaworthy packing such as steel strips bundles. If you have any special requests on this, please let us know advanced. We will refer to your email kindly.
1).20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) Max length is 5.8m, max weight is 25 tons.
2).40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) Max length is11.8m, max weight is 26 tons.
3).40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)
Our Advantage:
1. Honest business with competitive price
2. Professional service on export process
3. Good payment term
4. Good reputation en every market
5. Quality assurance
6. Always a pre-production sample before mass production
7. Always final inspection before mass production
