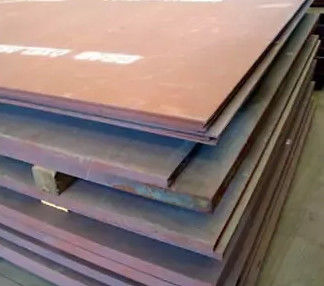

1000x2000mm Hot Rolled Wear Resistant Steel Plate NM360 NM400 NM450

Product Details

Place of Origin: Shandong China

Brand Name: ZGMC

Certification: ISO TUV SGS BIS CE

Model Number: Wear Resistant Steel Plate

Payment & Shipping Terms

Minimum Order Quantity: 3Tons

Price: Negotiable

Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.

Delivery Time: 5-15days depend on the quantity

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA

Supply Ability: 5000Tons Per Months

Get Best Price
Highlight:

NM450 AR Steel Plate

,

NM400

,

1000x2000mm AR Steel Plate

Product Name:
Wear Resistant Steel Sheet
Standard:
ASTM,AISI,JIS,GB, DIN,EN
Model Number:
NM450L,NM450A,NM600,NM400
Type::
Steel Plate
Technique:
Hot Rolled
Application:
Thermal Power Equipment
Width:
600-3000mm
Length:
1m-12m Or As Required
Processing Service:
Cutting
Name:
1000x2000mm Hot Rolled Wear Resistant Steel Plate NM360 NM400 NM450
Product Name:
Wear Resistant Steel Sheet
Standard:
ASTM,AISI,JIS,GB, DIN,EN
Model Number:
NM450L,NM450A,NM600,NM400
Type::
Steel Plate
Technique:
Hot Rolled
Application:
Thermal Power Equipment
Width:
600-3000mm
Length:
1m-12m Or As Required
Processing Service:
Cutting
Name:
1000x2000mm Hot Rolled Wear Resistant Steel Plate NM360 NM400 NM450
1000x2000mm Hot Rolled Wear Resistant Steel Plate NM360 NM400 NM450

1000x2000mm Hot Rolled Wear Resistant Steel Plate NM360 NM400 NM450



Product Description:



1000x2000mm Hot Rolled Wear Resistant Steel Plate NM360 NM400 NM450 refers to wear-resistant steel plates with a size of 1000mm by 2000mm, which are produced through the hot rolling process. These steel plates are specifically designed to withstand wear and abrasion in demanding applications.

The NM360, NM400, and NM450 grades indicate the hardness and wear resistance of the steel plates. NM360 has a lower hardness, while NM450 offers the highest wear resistance among the three grades.



These wear-resistant steel plates are commonly used in industries where wear and abrasion are significant factors. They find applications in mining, construction, quarrying, and heavy machinery manufacturing.



The hot rolling process enhances the mechanical properties of the steel plates, resulting in increased strength and durability.



These steel plates are known for their excellent resistance to wear, impact, and abrasion, making them suitable for handling abrasive materials and high-load conditions.



The specific application and selection of the appropriate grade of wear-resistant steel plate depend on the specific requirements of the intended use.



It's important to note that proper installation, maintenance, and handling are crucial to maximize the lifespan and performance of these steel plates.



When using wear-resistant steel plates, it's advisable to follow manufacturer's guidelines and industry standards to ensure their effectiveness and safety in the application.



Overall, 1000x2000mm Hot Rolled Wear Resistant Steel Plate NM360 NM400 NM450 offers durability and resistance to wear, making them a preferred choice in applications that require reliable and long-lasting materials.



Product name: 1000x2000mm Hot Rolled Wear Resistant Steel Plate NM360 NM400 NM450
Standard: GB ASTM SSAB OXELOSUND JIS
GRADE:

NM360,NM400,NM450,NM500,

NM550,NM600

XAR400,XAR450,XAR500,XAR550

400,450

,500,550,

600

NK-EH360,JFE-EH400,JFE-EH450,JFE-EH500
Thickness: 6.0-200mm,etc
Width : 1500-4100mm,etc
Length : 2000-12000mm,etc
Standard : ASTM,AISI,JIS,GB, DIN,EN
Certification : ISO, SGS,BV
price terms : FOB,CRF,CIF,EXW all acceptable
Delivery Detail : inventory About 5-7; custom-made 25-30
Loading port : any port in China
Packing : standard export packing (inside:water proof paper,outside:steel covered with strips and pallets)
Payment Terms : T/T, L/C at sight,West Union,D/P,D/A,Paypal
Container size: 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
  40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
  40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)





Wear resistant steel plates, also known as Abrasion Resistant(AR) steel plates, are typically made in the as-rolled condition. These types of steel plate products have been developed specifically for long service life in harsh conditions. AR(NM) products are suitable for a variety of applications such as

·Mining industry machinery

·Earth moving machinery

·Heavy wear platforms

·Industrial hoppers, funnels and feeders, etc.





Mechanical property:





Grade



Tensile strengthc Elongation Hardness -20℃ Impact energy
(Mpa) (%)(min) (HBW) AKv/J (min)
NM360 ≥1100 12 330-390 24
NM400 ≥1200 10 370-430 24
NM450 ≥1250 7 420-480 24
NM500     470(min)
NM550     530(min)
NM600     570(min)



Application:



Applications of 1000x2000mm Hot Rolled Wear Resistant Steel Plate NM360 NM400 NM450:



  1. Mining equipment: These steel plates are used in mining equipment such as crushers, conveyors, and chutes to withstand the abrasive conditions found in mining operations.
  2. Construction machinery: Wear-resistant steel plates are utilized in construction equipment like bulldozers, excavators, and loaders to protect critical components from wear and延长 their lifespan.
  3. Quarrying and aggregate processing: The plates find application in crushers, screens, and conveyors in quarrying and aggregate processing plants.
  4. Heavy machinery manufacturing: These steel plates are used in the production of agricultural machinery, construction equipment, and industrial machinery to enhance durability and resistance to wear.
  5. Manufacturing industry: In manufacturing plants, these plates can be used in conveyor belts, hoppers, and material handling equipment.
  6. Recycling facilities: Wear-resistant steel plates are employed in recycling plants to handle abrasive materials and protect equipment from excessive wear.
  7. Energy production: In the energy sector, these plates can be used in coal handling, wind turbine components, and oil and gas exploration equipment.
  8. Transportation: They are utilized in applications such as truck beds, containers, and train wagons to withstand wear and corrosion.
  9. Agricultural equipment: These plates are used in agricultural machinery like combines, plows, and harrows to increase their durability.



The applications of 1000x2000mm Hot Rolled Wear Resistant Steel Plate NM360 NM400 NM450 are diverse, spanning across various industries that require resistance to wear and abrasion. The specific grade selected depends on the level of wear resistance needed for each application. Proper installation, maintenance, and handling are crucial to ensure the performance and longevity of these steel plates. It's advisable to consult industry standards and manufacturer's recommendations for the most suitable application and use of these wear-resistant steel plates.





Product package:



The wear resistant steel sheet will be packed in seaworthy packing such as steel strips bundles. If you have any special requests on this, please let us know advanced. We will refer to your email kindly.

1).20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) Max length is 5.8m, max weight is 25 tons.

2).40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) Max length is11.8m, max weight is 26 tons.

3).40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)





1000x2000mm Hot Rolled Wear Resistant Steel Plate NM360 NM400 NM450 0



1000x2000mm Hot Rolled Wear Resistant Steel Plate NM360 NM400 NM450 1





Our Advantage:



1. Honest business with competitive price

2. Professional service on export process

3. Good payment term

4. Good reputation en every market

5. Quality assurance

6. Always a pre-production sample before mass production

7. Always final inspection before mass production



1000x2000mm Hot Rolled Wear Resistant Steel Plate NM360 NM400 NM450 2
