Product Details
Place of Origin: Shandong China
Brand Name: ZGMC
Certification: ISO TUV SGS BIS CE
Payment & Shipping Terms
Minimum Order Quantity: 3Tons
Price: Negotiable
Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time: 5-15days depend on the quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability: 5000Tons Per Months
Model Number: |
AR400 AR500 AR450 AR600 |
Grade: |
Wear Resistant Steel Sheet |
Standard: |
ASTM，AISI，JIS，GB， DIN，EN |
Type:: |
Steel Plate |
Technique: |
Hot Rolled |
Application: |
Thermal Power Equipment |
Width: |
600-3000mm |
Length: |
1m-12m Or As Required |
Processing Service: |
Cutting |
Thickness: |
6.0 – 60.0mm |
Model Number: |
AR400 AR500 AR450 AR600 |
Grade: |
Wear Resistant Steel Sheet |
Standard: |
ASTM，AISI，JIS，GB， DIN，EN |
Type:: |
Steel Plate |
Technique: |
Hot Rolled |
Application: |
Thermal Power Equipment |
Width: |
600-3000mm |
Length: |
1m-12m Or As Required |
Processing Service: |
Cutting |
Thickness: |
6.0 – 60.0mm |

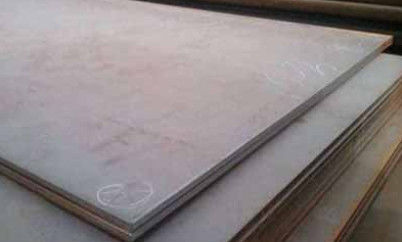

Industrial Hot Rolled 6mm - 80mm AR500 Abrasion Resistant Wear Resistant Steel Plate For Coal Mine
Product details:
| Products | Abrasion Resistant steel plate / Wear Resistant Steel Plate |
| Thickness | ≥6mm |
| Width | 1.5~2.5m depend on requirement |
| Length | cut to size according to your requirements |
| Grade | 400 / 450 / 500 / 600 |
| NM360 / NM400 / NM450 / NM500 / NR360 / NR400 / B-HARD360 / B-HARD400 / B-HARD450 / KN-55 / KN-60 / KN-63 | |
| XAR400 / XAR450 / XAR500 / XAR600 / Dillidur400 / Dillidur500 | |
| QUARD400 / QUARD450 / QUARD500 | |
| Payment term | T/T, West Union, Escrow, L/C at sight |
| Tolerance | Comply with standard or requirements |
| Heat Treatment | Hot rolled, Annealing, Tempered |
| Packing | Standard exporting packing or as requirements |
| Certificate | ISO SGS BV |
| Application | Widely used in petroleum industry, chemical industry, power station, boiler with making equipments or hardware like reactor, heat exchanger, seperator, sphere, liquid gas storage tank, nuclear-power reacto,pressure vessel, boiler drum, liquified petroleum gas pot, volute and so on. |
Product Description:
Wear Resistant AR500 is a high wear-resistant high-end varieties, with good cutting, bending, welding performance. Wear-resistant steel (Abrasion Resistance Steel ) is widely used in engineering, mining, construction and agriculture machinery products under extremely harsh working conditions with the requirement of high strength and high wear resistance, such as bulldozers, loaders, excavators, dump trucks and various mining machinery, etc. This kind of product has been mated for well-known domestic engineering machinery factories in mass as an ideal substitute of expensive imported wear-resistant plates.
Chemical Composition (%) of Wear Resistant Steel
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | B |
| NM360 | ≤0.17 | ≤0.50 | ≤1.50 | ≤0.025 | ≤0.015 | ≤0.70 | ≤0.50 | ≤0.40 | ≤0.005 |
| NM400 | ≤0.24 | ≤0.50 | ≤1.60 | ≤0.025 | ≤0.015 | 0.40-0.80 | 0.20-0.50 | 0.20-0.50 | ≤0.005 |
| NM450 | ≤0.26 | ≤0.50 | ≤1.60 | ≤0.025 | ≤0.015 | ≤1.50 | ≤1.00 | ≤0.50 | ≤0.004 |
| NM500 | ≤0.38 | ≤0.50 | ≤1.70 | ≤0.020 | ≤0.010 | ≤1.20 | ≤1.00 | ≤0.65 | 0.005-0.006 |
| 400 | ≤0.22 | ≤0.70 | ≤1.60 | ≤0.025 | ≤0.015 | ≤0.80 | ≤0.50 | ≤0.25 | ≤0.004 |
| 450 | ≤0.25 | ≤0.70 | ≤1.60 | ≤0.025 | ≤0.010 | ≤0.50 | ≤0.25 | ≤0.25 | ≤0.004 |
| 500 | ≤0.29 | ≤0.70 | ≤1.60 | ≤0.025 | ≤0.015 | ≤1.00 | ≤1.00 | ≤0.60 | ≤0.004 |
Mechanical Properties of Wear Resistant Steel
| Thickness/mm | ReL /MPa | Rm /MPa | A/% | Hardness/ HBW10/3000 | Impact -20℃ /J |
| 8 | 1250 | 1460 | 16 | 445 | 40 |
| 12 | 1290 | 1470 | 17 | 462 | 43 |
| 20 | 1370 | 1450 | 17 | 473 | 42 |
| 25 | 1230 | 1480 | 16.5 | 465 | 43 |
Abrasion Resistant (AR) steel plate is typically made in the as-rolled condition. These types/grades of steel plate products have been developed specifically for long service life in harsh conditions. AR products are suitable for a variety of applications in areas such as mining/quarrying, conveyors, material handling and construction, and earth moving. Designers and plant operators choose AR plate steel when striving to extend service life of critical components, and reduce the weight of each unit put into service. The benefits of employing wear-resistant plate steel in applications involving impact and/or sliding contact with abrasive material are immense.
Product package:
The wear resistant steel sheet will be packed in seaworthy packing such as steel strips bundles. If you have any special requests on this, please let us know advanced. We will refer to your email kindly.
1).20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) Max length is 5.8m, max weight is 25 tons.
2).40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) Max length is11.8m, max weight is 26 tons.
3).40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)
Our Advantage:
1. Honest business with competitive price
2. Professional service on export process
3. Good payment term
4. Good reputation en every market
5. Quality assurance
6. Always a pre-production sample before mass production
7. Always final inspection before mass production
|
|
