Product Details
Place of Origin: Shandong China
Brand Name: ZGMC
Certification: ISO TUV SGS BIS CE
Model Number: Stainless Steel sheets/plate
Payment & Shipping Terms
Minimum Order Quantity: 3Tons
Price: Negotiable
Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time: 5-15days depend on the quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability: 5000Tons Per Months
Material: |
ASTM A283 |
Technique: |
Hot Rolled |
Standard: |
ASME /ASTM |
Surface: |
According To Customer's Requirement |
Thickness: |
6-150mm |
Width: |
1000mm-4500mm Or Required |
Length: |
3000mm-12000mm Or Required |
Application: |
Used In Riveted, Bolted, And Welded Construction Of Bridges And Buildings, And For Buildings. |
Material: |
ASTM A283 |
Technique: |
Hot Rolled |
Standard: |
ASME /ASTM |
Surface: |
According To Customer's Requirement |
Thickness: |
6-150mm |
Width: |
1000mm-4500mm Or Required |
Length: |
3000mm-12000mm Or Required |
Application: |
Used In Riveted, Bolted, And Welded Construction Of Bridges And Buildings, And For Buildings. |
ASTM A283/A283M steel standard contains steel grades A283 Grade A, A283 Grade B, A283 Grade C and A283 Grade D. The minimum yield strength of carbon steel plate A283GrA is above 165Mpa and tensile strength is within 310-415 Mpa when rolling at room temperature.Comparing with other three steel grades in A283,A283 Grade A has the lowest Carbon contains limited,and A283 Grade D has the highest carbon contains for improving its yield strength and tensile strength values.The most common used steel grade is A283 Grade C.

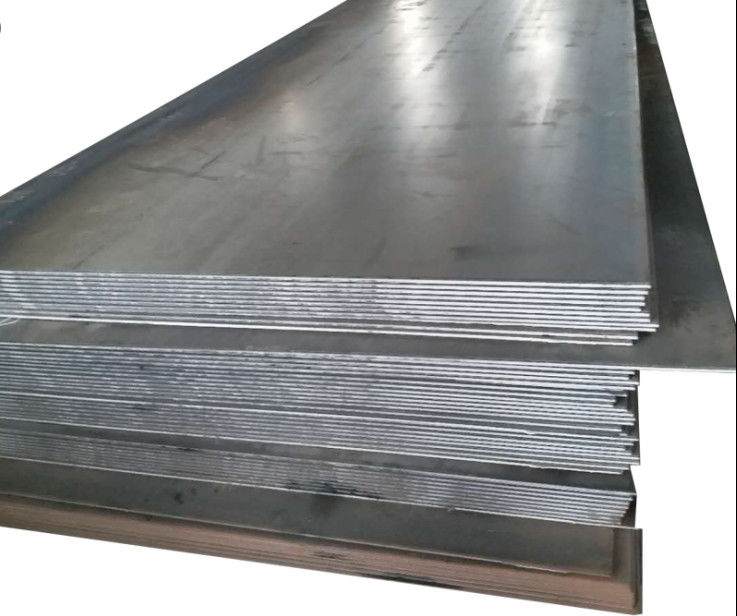

Product Description:
Product Name |
Carbon structural Steel Plates |
Size |
as required |
Width |
1000-4500mm or as required |
Thickness |
6mm-150mm |
Standard |
ASME/ASTM |
Technique |
Hot rolled |
Surface Treatment |
According to customer's requirement |
Thickness Tolerance |
±0.01mm~ ±0.25mm |
Material |
ASTM A 283 |
Application |
Used in riveted, bolted, and welded construction of bridges and buildings, and for buildings. |
MOQ |
1 ton , We can accept sample order. |
Shipment Time |
Within 15-20 workdays after receiving deposit or workable L/C |
Export Packing |
Waterproof paper, and steel strip packed. |
Capacity |
250,000 tons/year |
Chemical Composition:
Grade | Grade A | Grade B | Grade C | Grade D |
Carbon, max | 0.14 | 0.17 | 0.24 | 0.27 |
Manganese, max | 0.9 | 0.9 | 0.9 | 0.9 |
Phosphorus, max | 0.035 | 0.035 | 0.035 | 0.035 |
Sulphur, max | 0.04 | 0.04 | 0.04 | 0.04 |
Silicon, Plates 1 1/2 in and under, max | 0.40 | 0.40 | 0.40 | 0.40 |
Silicon, Plates over 1 1/2 in | 0.15-0.40 | 0.15-0.40 | 0.15-0.40 | 0.15-0.40 |
Copper min % when copper steel is specified | 0.2 | 0.2 | 0.2 | 0.2 |
Physical properties :
Grade | Grade A | Grade B | Grade C | Grade D |
Tensile Strength: | 45,000 -60,000 psi | 50,000 -65,000 psi | 55,000 75,000 psi | 60,000 -80,000 psi |
[310 - 415 MPa] | [345 - 450 MPa] | [380 - 515 MPa] | [415 - 550 MPa] | |
Min. Yield Point: | 24,000psi | 27,000psi | 30,000psi | 33,000psi [ |
[165 MPa] | [185 MPa] | [205 MPa] | 230 MPa] | |
Elongation in 8": | 27% min | 25% min | 22% min | 20% min |
Elongation in 2": | 38% min | 28% min | 25% min | 23% min |
FAQ:
Q1. What are your company's main products ?
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.
Q3. What are the advantages of your company ?
A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q4: What is the terms of packing?
A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.
Q5:What is your delivery time?
A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q6. Can you provide sample ?
A7: We can provide the samll samples in stock for free, as long as you contact us.
Customized samples will take about 5-7days.
Q7. How many coutries you already exported ?
A6: Exported to more than 50 countries mainly from America, Russia, UK, Thailand, Vietnam,Kuwait, Egypt, Turkey, Jordan,India, etc.
