Smp Paint 3d Pattern 3.0mm Galvanized Steel Coil Wood Like Design

Place of Origin China
Brand Name Hengdali
Certification SGS,BV
Model Number Design Color Coated steel coil
Minimum Order Quantity 1 Tons
Price Negotiable
Packaging Details Plastic bags, thin film, standard seaworthy export packing or as customer demands
Delivery Time 15 days after deposit
Payment Terms L/C, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Technique Pre-painted Hot-dip Galvanized Steel Coil Standard ASTM DIN GB JIS3312
Paint Type PE, PVDF, HDP, SMP Thickness 0.14-3.0mm
Width 600-1500mm Or Required Color Printed, Filmed, Pressed, Matte
Surface Treatment Hot Dipped Galvanized+paint Application Construction/Color-coating/transportation/building Material/make Corrugated Sheet
High Light

smp paint galvanized steel coil


3.0mm galvanized steel coil


3.0mm galvanized sheet coil

Leave a Message
Product Description
Description: 3D Pattern Wood-like Design Color Coated steel coil
Standard: EN10142/EN10346/EN10169/JIS3302
Thickness: 0.14-3.0mm
Width: 600-1500mm
Color: Printed, Filmed, Pressed, Matte
Zinc Coating: 60-275G/M2
Coating Structure: 2/2 2/1
Top Paint Layer: 12-25 Micron
Back Paint Layer: 7-25 Micron
Paint: Nippon,Akzonobel
Paint type PE, PVDF, HDP, SMP
Coil ID: 508mm
Coil weight: 3-10 ton
MOQ: 1 ton , We can accept sample order.
Shipment Time: Within 15-20 workdays after receiving deposit or workable L/C
Export Packing: Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
Capacity: 250,000 tons/year




It qualified with excellent decorative, formability, corrosion resistance, coating adhesion, can keep for a long time as well as maintain fresh color. For printed steel coil can obtain good economic benefit by steel belt wood, efficient in construction and save energy, prevent pollution etc.


Printed Steel Coil flexibility
1) Coating systems or configurations maybe customized to suit client's requirements
2) Top Coat can be 2-coat or 3-coat system (primer + base coat + finishing coat)
3) Backing can be single service coat or primer + backer coat
4) Both sides can also be colour coated
5) Protection Film services provided
6) Color matching services provided at no additional charges

Printed Steel Coil applications
1) Buildings and constructions:roofing,ceilings,gutters,venting lines,indoor decorations,window frames
2) Electrical appliances:computer shells,washing machines,refrigerators,dehumidifiers,video recorders
3) Agricultural equipments: troughs, feeding tools, agricultural driers, irrigation channels
4) Vehicle parts: back-seat plates of buses and trucks, conveying systems, oil tanks

Printed Steel Coil process
Pay off reel-double cut shear-jonter-pre cleaning section-dryer-entry accumulation-cleaning section-chemical coater-chemical oven-primer coater-prime oven-prime coater cooling unit-dryer-finish coater-finish oven-finish coat cooling unit-dryer-tension leveler-exit accumulator-exit shear-tension reel

5. Printed Steel Coil features
1) Excellent corrosion resistance: The zinc layer provides a good protection of sheet
2) High heat resistance: The reflective surface of the material aids in efficiently reflecting the sunlight away and in turn reducing the amount of heat transmitted
3) Aesthetics: Available in plethora of patterns and multiple sizes as per requirements
4) Versatility: can be used in the various areas

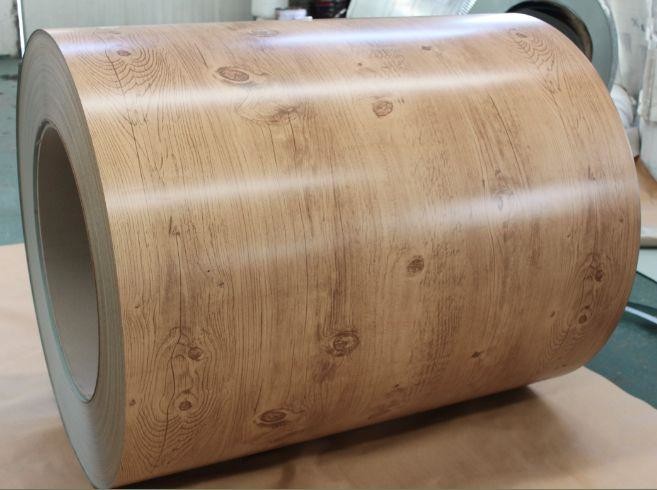

Smp Paint 3d Pattern 3.0mm Galvanized Steel Coil Wood Like Design 0
Smp Paint 3d Pattern 3.0mm Galvanized Steel Coil Wood Like Design 1


Smp Paint 3d Pattern 3.0mm Galvanized Steel Coil Wood Like Design 2









Q1. What are your company's main products ?

A1: Our main products are stainless steel & Galvanize coils, plate/sheet, round/square pipe etc.


Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.


Q3. What are the advantages of your company ?

A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.


Q4: What is the terms of packing?

A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.


Q5:What is your delivery time?

A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.


Q6. Can you provide sample ?

A7: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.


Q7. How many coutries you already exported ?

A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India,Thailand, Vietnam, South Korea etc.
