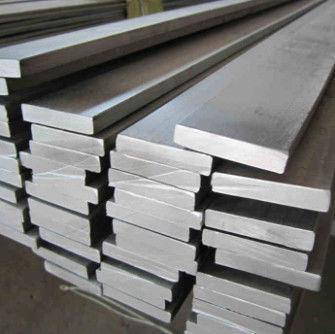

Pickling Surface Hot Rolled Forged 316L Stainless Steel Flat Bar JIS G3459
Place of Origin | Shandong China |
---|---|
Brand Name | ZGMC |
Certification | ISO TUV SGS BIS CE |
Model Number | Stainless Steel Flat Bar |
Minimum Order Quantity | 3Tons |
Price | Negotiable |
Packaging Details | With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles. |
Delivery Time | 5-15days depend on the quantity |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA |
Supply Ability | 5000Tons Per Months |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xGrade | Stainless Steel | Application | Construction,Industry |
---|---|---|---|
Standard | AiSi, ASTM, DIN, GB, JIS, AISI, ASTM, GB, DIN, EN, Etc. | Technique | Hot Rolled,Cold Drawn Hot Rolled Forged |
Width | 1-2500mm | Length | As Required |
Highlight | 316L Stainless Steel Flat Bar,G3459 316L Stainless Steel Flat Bar,Width 2500mm ss flat bar |
JIS G3459, JIS G3461,JIS G3463 SUS304 SUS316L SUS321 Stainless Steel Flat Bar
Product Description:
Stainless steel flat bar is one profile that easily machined,stamped and welded, with strength, corrosion resistance and a finish that is easily cleaned.
There are two kinds of the flat bars, one is the True mill flat bar another is Sheared flat bar,The difference between a true mill flat bar and sheared or flat bar cut from the plate is dimensional tolerance. In the true flat bar, tolerances for width and thickness are restrictive and have the better finish. In cutting bar from the plate, the diametrical tolerance will be more generous and in line with the cutting method.
Details | |
Product Name | Stainless steel flat bar |
Standard | AISI ASTM JIS GB DIN |
Grade | 200S/300S/400S/600S |
Thickness | 3mm-30mm |
Width | 10mm-180mm |
Length | 2m-6m,as the consumers’ demand |
Surface Treatment | Pickling ,bright ,black |
Technology | Cold-draw ,Hot-rolled |
Package | Seaworthy packing or according to the clients’ request |
Application | Be used in architecture and engineer structure ,industry ,etc |
Trade Term | FOB CIF |
Payment | T/T L/C |
Loading Port | Shanghai |
Delivery Time | 5-30days,mainly in accordance with the quantity |
Report | Material report ,Mechanical performance report |
Certification | ISO9001 |
Chemical Composition:
Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 -3.0 |
321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | - |
410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |
Application of stainless steel flat bar
stainless steel bar products are used in many applications include:
- Structural supports
- Food Processing
- Pulp & Paper
- Medical and Commercial Goods
- Motor and engine components
- Aerospace&Automotive
Size Details:
Length tolerance of flat bar in cut-length or multiple length should be in accordance with
1,Length≤4m………………….0~+30mm
2,Length>4m---6mm…………. 0~+50mm
3,Length>6m…………………. 0~+70mm
FAQ:
Q1. What are your company's main products ?
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.
Q3: What is the terms of packing?
A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.
Q4:What is your delivery time?
A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5. What are the advantages of your company ?
A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q6. How many coutries you already exported ?
A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
Q7. Can you provide sample ?
A7: We can provide the samll samples in stock for free, as long as you contact us.
Customized samples will take about 5-7days.
