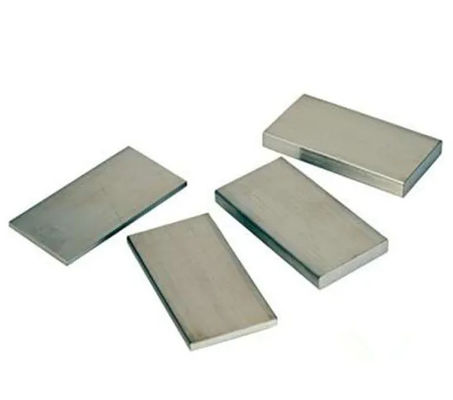

Hairline Polished 304 SS Flat Bar Handrail Stainless Steel Flat Bar 5mm

Place of Origin China
Brand Name JInagsu Hengdali
Certification SGS ISO MTC
Model Number Stainless Steel Flat Bar
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details in bundle, plastic bags, thin film, wooden pallet, standard seaworthy export packing or as customer demands
Delivery Time 15 days after deposit
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Stainless Steel Application Construction,Industry
Standard AiSi, ASTM, DIN, GB, JIS, AISI, ASTM, GB, DIN, EN, Etc. Technique Hot Rolled,Cold Drawn Hot Rolled Forged
Width 1-2500mm Length As Required
High Light

Hairline Polished 304 SS Flat Bar

,

Handrail 304 ss flat bar

,

Handrail Stainless Steel Flat Bar 5mm

Leave a Message
Product Description

High Quality Hairline Polished 304 Stainless Steel Flat Bar For Handrail Good Price





Product Description:



Stainless steel flat bar is one profile that easily machined,stamped and welded, with strength, corrosion resistance and a finish that is easily cleaned.

There are two kinds of the flat bars, one is the True mill flat bar another is Sheared flat bar,The difference between a true mill flat bar and sheared or flat bar cut from the plate is dimensional tolerance. In the true flat bar, tolerances for width and thickness are restrictive and have the better finish. In cutting bar from the plate, the diametrical tolerance will be more generous and in line with the cutting method.



Application of stainless steel flat bar:



stainless steel bar products are used in many applications include:

structural supports, Food Processing Food Processing Pulp & Paper Medical and Commercial Goods motor and engine components Aerospace&Automotive



ITEM DESCRIPTION
Product Stainless Steel Flat
Tolerance H9, H10, H11
Standard AISI, ASTM, DIN, EN, GB and JIS
ASTM A276, A484, A564, A581, A582, EN 10272, JIS4303, JIS G 431,
JIS G 4311 and JIS G 4318
Certificate BV,ISO,SGS,etc.
Material 300series: 301, 302, 302B, 303, 303Se304, 304L, 304N, 308, 309, 309s,
310, 310S, 316, 316L, 316N, 316Ti, 317, 317L, 321, 347
200series: 201, 202, 202cu, 204
400series: 409, 409L, 410, 420, 430, 431, 439, 440, 441, 444
Others: 2205, 2507, 2906, 330, 660, 630, 631, 174ph, 177ph, S318039, 904L, etc
Duplex stainless steel: S22053, S25073, S22253, S31260, S31803, S31500,
S32205, S32304
Special Stainless Steel: 904L, 347, 347H, 317, 317L, 316Ti, 254Mo
Diameter 2mm-500mm
Length 0.5-6m or according to the customers' request.
Surface Black, Pickled, HL, Brushed, Bright
Shape Round, Flat, Square, Hex, Angle, Beam, T bar, H bar, Channel bar
Application Construction, Chemical, Shipbuilding, Machine made, Household, Industry, etc
Package Standard seaworthy export packing or according to the customers' request.
Delivery Time Within 10 days after receiving your advance payment.





Chemical Composition:



Grade C Si Mn P S Ni Cr Mo
201 ≤0 .15 ≤0 .75 5. 5-7. 5 ≤0.06 ≤ 0.03 3.5 -5.5 16 .0 -18.0 -
202 ≤0 .15 ≤l.0 7.5-10.0 ≤0.06 ≤ 0.03 4.0-6.0 17.0-19.0 -
301 ≤0 .15 ≤l.0 ≤2.0 ≤0.045 ≤ 0.03 6.0-8.0 16.0-18.0 -
302 ≤0 .15 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 8.0-10.0 17.0-19.0 -
304 ≤0 .0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 ≤ 0.03 19.0-22.0 24.0-26.0
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0 .03 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0 - 15.0 16 .0 -1 8.0 2.0 -3.0
321 ≤ 0 .08 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0 - 13 .0 17.0 -1 9.0 -
630 ≤ 0 .07 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 ≤0.035 6.50-7.75 16.0-18.0 -
904L ≤ 2 .0 ≤0.045 ≤1.0 ≤0.035 - 23.0·28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 ≤0.02 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.8 ≤1.2 ≤0.035 ≤0.02 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 ≤ 0.03 0.19 -0. 22 0. 24 -0 . 26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 - 11.5-13.5 -
430 ≤0.1 2 ≤0.75 ≤1.0 ≤ 0.040 ≤ 0.03 ≤0.60 16.0 -18.0 -





Size Details:



Length tolerance of flat bar in cut-length or multiple length should be in accordance with

  1,Length≤4m………………….0~+30mm

  2,Length>4m---6mm…………0~+50mm

  3,Length>6m………………….0~+70mm



Hairline Polished 304 SS Flat Bar Handrail Stainless Steel Flat Bar 5mm 0







FAQ:



Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.



Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q3: What is the terms of packing?

A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.



Q4:What is your delivery time?

A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.





Q5. What are the advantages of your company ?

A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.



Q6. How many coutries you already exported ?

A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q7. Can you provide sample ?

A7: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
