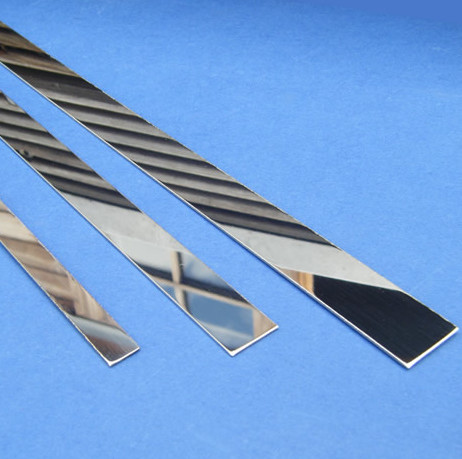

Industrial Artwork Mirror Polished Stainless Steel Flat Bar 201 ASTM A484

Place of Origin China
Brand Name JInagsu Hengdali
Certification SGS ISO MTC
Model Number Stainless Steel Flat Bar
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details in bundle, plastic bags, thin film, wooden pallet, standard seaworthy export packing or as customer demands
Delivery Time 15 days after deposit
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Stainless Steel Application Construction,Industry
Standard AiSi, ASTM, DIN, GB, JIS, AISI, ASTM, GB, DIN, EN, Etc. Technique Hot Rolled,Cold Drawn Hot Rolled Forged
Width 1-2500mm Length As Required
Thickness 20-150mm Surface Black, Bright, Polished
High Light

316L polished stainless steel flat bar

,

Stainless Steel Flat Bar ASTM A484

,

Thickness 20mm 201 stainless steel bar

Leave a Message
Product Description

Stainless Steel Flat Bars Strips Mirror Polished, Custom Cut 201 202 304 316L 410 416 309 310 For Industrial Artwork





Product Description:



Stainless steel flat bar comes available in a variety of finishes, grades, alloys, and types before being treated for its end-use. Before being converted from its raw material to a finished piece, they are usually sold as edge-treated flat bars or true flat bars.



Edge-treated flat bars are more cost-effective due to their production method. Also known as sheared or edged flat bars, edge-treated flat bars are cut from stainless steel plates and then processed to flatten the body and smooth the edges. Edge-treated stainless-steel flat bars are best for applications where tolerance and sharpness are not as critical in the end-use application.



True stainless-steel flat bars offer more uniformity from bar to bar. These bars are generally fabricated via hot rolling, annealing, and pickling (HRAP), though true flat bars may also be formed via cold drawing. With identical finishes on each side and tolerances of true flat bar is ideal for applications where polish, uniformity, or sharpness are required.Stainless steel flat bar is most frequently sold with HRAP in 304 or 316 grades. The two materials offer a similar appearance, but 316 stainless steel delivers superior corrosion resistance.



Product Details:

Item Stainless Steel Flat Bar
Standard



ASTM A484, ASTM A479, ASTM A276,ASTM A582,etc.

Material 309,309S,310,310S,316,316L,316Ti,317,317L,321,321H,347,347H,
304,304L,301,302,201,202,405,409L,410,410S,420,430,439,904L,etc.
Specifications Round bar Diameter: 0.1-500mm
Angle bar Size: 0.5mm*4mm*4mm-20mm*400mm*400mm
Flat bar Thickness: 0.3-200mm
Width: 1-2500mm
Square Bar Size: 1mm*1mm-800mm*800mm
Surface Pickling,annealing,polishing,bright,sand blast,hair line, etc.
Price Term EXW,FOB,CFR,CIF,or as required.
Payment Term T/T,L/C,Western Union.
Export to

Singapore,USA,Canada,US,Holland,Ireland,Italy,Russia,Spain,Peru,Mexico,Brazil,Indonesia,

Malaysia,Nigeria,SaudiArabia,Ukraine,Iran,India,Egypt,Vietnam,Oman,Dubai,South Africa,Korea,etc

MOQ 500kg .
Delivery Time Prompt delivery or according to order's quantity.
Package Export standard package: bundled wooden box,suit for any transport,
or be required.
Application Stainless steel bar is widely used in hardware, shipbuilding, petrochemical, machinery,medicine, food, electric power, energy, building upholster, nuclear power, aerospace,military industry and other industries.marine equipment, chemical, dyestuff, papermaking, oxalic acid, fertilizer and other production equipment;The food industry, coastal facilities, rope, CD rod, bolts and nuts.
Contact

If you have any question, please feel free to contact me,

We are sure your inquiry or requirements will get prompt attention.



Chemical Composition:



Grade C Si Mn P S Ni Cr Mo
201 ≤0 .15 ≤0 .75 5. 5-7. 5 ≤0.06 ≤ 0.03 3.5 -5.5 16 .0 -18.0 -
202 ≤0 .15 ≤l.0 7.5-10.0 ≤0.06 ≤ 0.03 4.0-6.0 17.0-19.0 -
301 ≤0 .15 ≤l.0 ≤2.0 ≤0.045 ≤ 0.03 6.0-8.0 16.0-18.0 -
302 ≤0 .15 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 8.0-10.0 17.0-19.0 -
304 ≤0 .0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 ≤ 0.03 19.0-22.0 24.0-26.0
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0 .03 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0 - 15.0 16 .0 -1 8.0 2.0 -3.0
321 ≤ 0 .08 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0 - 13 .0 17.0 -1 9.0 -
630 ≤ 0 .07 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 ≤0.035 6.50-7.75 16.0-18.0 -
904L ≤ 2 .0 ≤0.045 ≤1.0 ≤0.035 - 23.0·28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 ≤0.02 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.8 ≤1.2 ≤0.035 ≤0.02 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 ≤ 0.03 0.19 -0. 22 0. 24 -0 . 26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 - 11.5-13.5 -
430 ≤0.1 2 ≤0.75 ≤1.0 ≤ 0.040 ≤ 0.03 ≤0.60 16.0 -18.0 -



Applications of Stainless-Steel Flat Bar:

Stainless steel flat bar comes in a variety of grades, sizes, and finishes to suit the needs of countless applications. The use cases for stainless steel flat bar vary widely, but some examples include:

  1. Building supports
  2. Engine components
  3. Food service equipment
  4. Handrails
  5. Industrial artwork
  6. Marine components
  7. Medical device components



FAQ:



Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.



Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q3: What is the terms of packing?

A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.



Q4:What is your delivery time?

A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.





Q5. What are the advantages of your company ?

A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.



Q6. How many coutries you already exported ?

A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q7. Can you provide sample ?

A7: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
