Product Details
Place of Origin: Shandong China
Brand Name: ZGMC
Certification: ISO TUV SGS BIS CE
Model Number: Stainless Steel Flat Bar
Payment & Shipping Terms
Minimum Order Quantity: 3Tons
Price: Negotiable
Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time: 5-15days depend on the quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability: 5000Tons Per Months
Name: |
Stainless Steel Flat Bar |
Standard: |
DIN, EN,ASTM, AISI, Etc. |
Technique: |
Hot Rolled,Cold Drawn |
Thickness: |
3-25mm |
Width: |
12-250mm |
Length: |
3000mm-6000mm Or Custom Cutting |
Surface: |
Hairline,Polished |
Application: |
Engineering Structures |
Name: |
Stainless Steel Flat Bar |
Standard: |
DIN, EN,ASTM, AISI, Etc. |
Technique: |
Hot Rolled,Cold Drawn |
Thickness: |
3-25mm |
Width: |
12-250mm |
Length: |
3000mm-6000mm Or Custom Cutting |
Surface: |
Hairline,Polished |
Application: |
Engineering Structures |

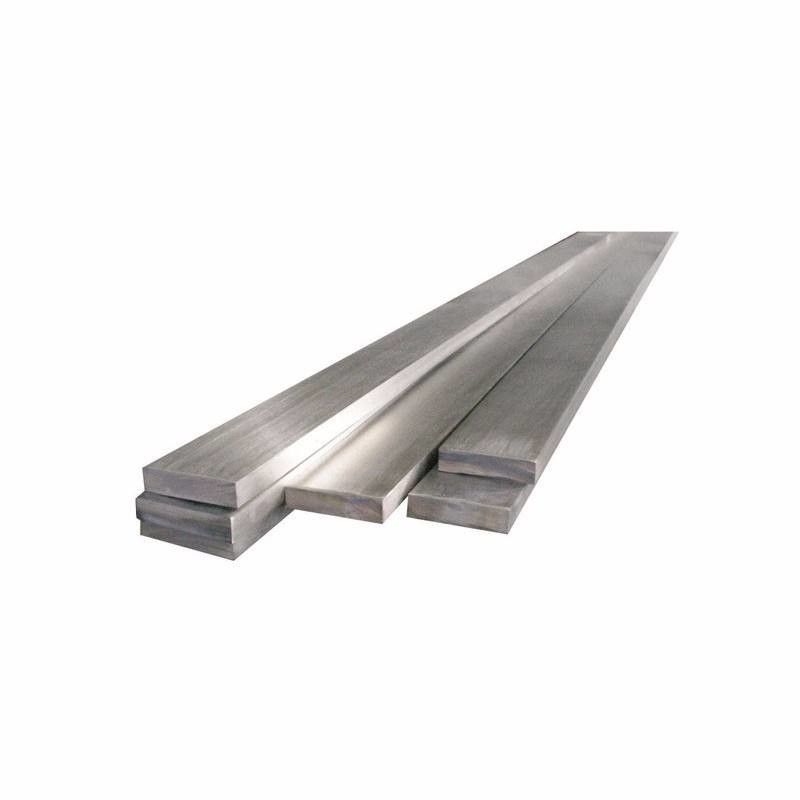

ASTM 201 303 Stainless Steel Flat Bar Thickness For Construction
Product Description:
-Be extensively applied to architectural decoration, such as elevator decoration, luxurious doors, outdoor projects, wall decoration, advertisement nameplates, sanitary ware, ceiling, corridor, hotel hall, shop facade, etc. - For furniture, kitchenware, food industry, electronic industry, medical equipment, etc.
Product | stainless steel flat bar |
Grade |
300 Series: 304,304L,309,309s,310,310S,316,316L,316Ti,317L,321,347 400 Series: 409,409L,410,420,430,431,439,440,441,444 Others: 2205,2507,2906,330,660,630,631,17-4ph,17-7ph, S318039 904L,etc Duplex stainless steel: S22053,S25073,S22253,S31803,S32205,S32304 |
Standard | ASME, ASTM, EN, BS, GB, DIN, JIS etc |
Technique | Cold Rolled, Hot Rolled, Forging |
Surface | Annealed & Pickled, Bright, Polished, HL, Black |
Size |
Round Rod: Diameter: 3mm~800mm Square Rod: 5x5mm - 200x200mm Flat Bar: 20x2mm - 200x20mm Hex Rod: 8mm - 200mm Angle Bar: 20x20x2mm - 200x200x15mm |
Packing | Bundled,wooden box for export standard package |
Delivery Time | 7-15 dyas,or according to the order quantity or upon negotiation |
MOQ | 5 TON |
Chemical component:
Grade
|
C | Si | Mn | P | S | Ni | Cr | Mo |
201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤0.03 | 3.5-5.5 | 16.0-18.0 | - |
202 | ≤0.15 | ≤1.0 | 7.5-10.0 | ≤0.06 | ≤0.03 | 4.-6.0 | 17.0-19.0 | - |
301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 6.0-8.0 | 16.0-18.0 | - |
302
|
≤0.15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 8.0-10.0 | 17.0-19.0 | - |
304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 8.0-10.5 | 18.0-20.0 | |
304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-13.0 | 18.0-20.0 | |
309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 12.0-15.0 | 22.0-24.0 | |
310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤0.03 | 19.0-22.0 | 24.0-26.0 | |
316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 |
321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-13.0 | 17.0-19.0 | - |
904L | ≤2.0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 |
2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 |
≤0.02
|
4.5-6.5
|
22.0-23.0 | 3.0-3.5 |
2507 | ≤0.03 | ≤0.80 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤0.03 | 0.19-0.22 | 0.24-0.26 | - |
410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤0.03 | - | 11.5-13.5 | - |
430 | 0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤0.03 | ≤0.60 | 16.0-18.0 | - |
Product Packing and Shipping:
Packaging Details: Standard seaworthy packing(plastic&wooden) or according to the customer's requests.
Delivery Detail: 7-20 days , mainly decided by the quantity of the order
20ft GP: 5898mm(Length)x2352mm(Width)x2393mm(High)
40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)
