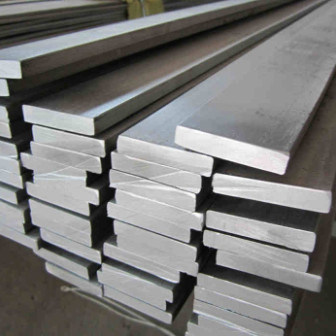

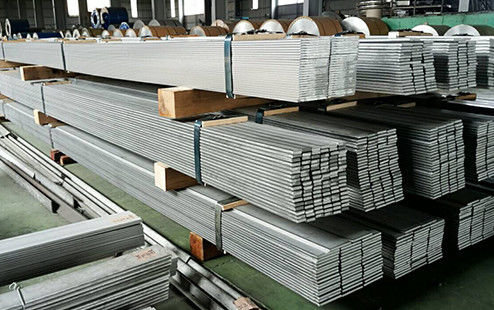

Engine Components Cold Drawn 310S SS Flat Bar AISI Width 2500mm

Place of Origin China
Brand Name JInagsu Hengdali
Certification SGS ISO MTC
Model Number Stainless Steel Flat Bar
Minimum Order Quantity 1 Ton
Price Negotiable
Packaging Details in bundle, plastic bags, thin film, wooden pallet, standard seaworthy export packing or as customer demands
Delivery Time 15 days after deposit
Payment Terms L/C, D/P, T/T, Western Union
Supply Ability 5000 Ton/Tons per Month Supply

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade Stainless Steel Application Construction,Industry
Standard AiSi, ASTM, DIN, GB, JIS, AISI, ASTM, GB, DIN, EN, Etc. Technique Hot Rolled,Cold Drawn Hot Rolled Forged
Width 1-2500mm Length As Required
High Light

310S SS Flat Bar

,

Cold Drawn AISI SS Flat Bar

,

Width 2500mm stainless flat bar

Leave a Message
Product Description

SS 201 304 316 410 420 2205 316l 310s Stainless Steel Flat Bar Cold Drawn





Product Description:



Stainless steel flat bar can be supplied at standard sizes as listed below or we can cut to your desired length at a minimum charge. Just fill in the Custom Cut section. We endeavour to produce your order to the exact size, however there is a production tolerance of +/- 2.0mm.The most widely used stainless steel is the 304, also known as 18/8 for its composition of 18% chromium and 8% nickel.304 may be referred to as A2 stainless. The second most common stainless steel is the 316 grade, also called marine grade stainless, used primarily for its increased resistance to corrosion. HRAP (Hot Rolled Annealed & Pickled, also called a No. 1 Finish) – This dull finish is common for heavy gauge material.

Details
Product Name Stainless steel flat bar
Standard AISI ASTM JIS GB DIN
Grade 200S/300S/400S/600S
Thickness 3mm-30mm
Width 10mm-180mm
Length 2m-6m,as the consumers’ demand
Surface Treatment Pickling ,bright ,black
Technology Cold-draw ,Hot-rolled
Package Seaworthy packing or according to the clients’ request
Application Be used in architecture and engineer structure ,industry ,etc
Trade Term FOB CIF
Payment T/T L/C
Loading Port Shanghai
Delivery Time 5-30days,mainly in accordance with the quantity
Report Material report ,Mechanical performance report
Certification ISO9001





Chemical Composition:



Grade C Si Mn P S Ni Cr Mo
201 ≤0 .15 ≤0 .75 5. 5-7. 5 ≤0.06 ≤ 0.03 3.5 -5.5 16 .0 -18.0 -
202 ≤0 .15 ≤l.0 7.5-10.0 ≤0.06 ≤ 0.03 4.0-6.0 17.0-19.0 -
301 ≤0 .15 ≤l.0 ≤2.0 ≤0.045 ≤ 0.03 6.0-8.0 16.0-18.0 -
302 ≤0 .15 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 8.0-10.0 17.0-19.0 -
304 ≤0 .0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 ≤ 0.03 19.0-22.0 24.0-26.0
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0 .03 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0 - 15.0 16 .0 -1 8.0 2.0 -3.0
321 ≤ 0 .08 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0 - 13 .0 17.0 -1 9.0 -
630 ≤ 0 .07 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 ≤0.035 6.50-7.75 16.0-18.0 -
904L ≤ 2 .0 ≤0.045 ≤1.0 ≤0.035 - 23.0·28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 ≤0.02 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.8 ≤1.2 ≤0.035 ≤0.02 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 ≤ 0.03 0.19 -0. 22 0. 24 -0 . 26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 - 11.5-13.5 -
430 ≤0.1 2 ≤0.75 ≤1.0 ≤ 0.040 ≤ 0.03 ≤0.60 16.0 -18.0 -





Application of stainless steel flat bar:



stainless steel bar products are used in many applications include:

  • Structural supports
  • Food Processing
  • Pulp & Paper
  • Medical and Commercial Goods
  • Motor and engine components
  • Aerospace&Automotive



Size Details:



Length tolerance of flat bar in cut-length or multiple length should be in accordance with

  1,Length≤4m………………….0~+30mm

  2,Length>4m---6mm…………. 0~+50mm

  3,Length>6m…………………. 0~+70mm



Engine Components Cold Drawn 310S SS Flat Bar AISI Width 2500mm 0







FAQ:



Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.



Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.



Q3: What is the terms of packing?

A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.



Q4:What is your delivery time?

A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.





Q5. What are the advantages of your company ?

A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.



Q6. How many coutries you already exported ?

A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.



Q7. Can you provide sample ?

A7: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
