Product Details
Place of Origin: Shandong China
Brand Name: ZGMC
Certification: ISO TUV SGS BIS CE
Model Number: Stainless Steel Flat Bar
Payment & Shipping Terms
Minimum Order Quantity: 3Tons
Price: Negotiable
Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time: 5-15days depend on the quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability: 5000Tons Per Months
Grade: |
200series 300series 400series |
Application: |
Kitchen , Medical , Industrial |
Standard: |
ASTM JIS DIN & BS |
Technique: |
Cold Drawn & Hot Rolled |
Size: |
3*3 - 60*60mm |
Length: |
4 - 6 Meters Or As Required |
Surface: |
Bright/hairline/pickled |
Grade: |
200series 300series 400series |
Application: |
Kitchen , Medical , Industrial |
Standard: |
ASTM JIS DIN & BS |
Technique: |
Cold Drawn & Hot Rolled |
Size: |
3*3 - 60*60mm |
Length: |
4 - 6 Meters Or As Required |
Surface: |
Bright/hairline/pickled |

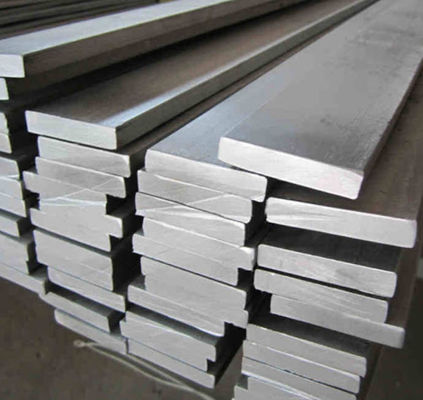

Cold Drawn Stainless Steel Round Hex Flat Bar Polished Black 904L 304 316L For Industry
Product Description:
| Product Name | stainless steel square bar |
| Standard | JIS, AISI, ASTM, GB, DIN |
| Size | Diameter : S6-S65mm or as request |
| Length | Normal long 4M, Or as your request |
| Surface | Bright ,hairline finsh |
| Technics | cold drawn and polishing |
| Application | construction field, ships building industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchanger, machinery and hardware fields ,etc. |
| Packing | Export standard or as customers' requirement |
| Delivery time | Within 15 working days, according to customers' quantities |
| Payment | L/C or T/T |
| MQQ | 1 Ton |
| Quality | High Quality.SGS inspection is accepted if needed |
| Productivity | 500 Tons/Month |
| Attention | We will supply you good quality and bottom price and first-class service in china and hope to be your golden supplier |
Stainless steel flat bar can be supplied at standard sizes as listed below or we can cut to your desired length at a minimum charge. Just fill in the Custom Cut section. We endeavour to produce your order to the exact size, however there is a production tolerance of +/- 2.0mm.The most widely used stainless steel is the 304, also known as 18/8 for its composition of 18% chromium and 8% nickel.304 may be referred to as A2 stainless. The second most common stainless steel is the 316 grade, also called marine grade stainless, used primarily for its increased resistance to corrosion. HRAP (Hot Rolled Annealed & Pickled, also called a No. 1 Finish) – This dull finish is common for heavy gauge material.
Size of stainless steel flat bar:
| Grade |
Hot Rolled (Black) |
Hot Forged (Black) |
Cold Drawn (Bright) |
Smooth Turned (Bright) |
| 2205 | 8mm-200mm | 150mm-500mm | 3mm-50mm | 10mm-300mm |
| 904L | 8mm-200mm | 150mm-500mm | 3mm-50mm | 10mm-300mm |
| 321 | 8mm-200mm | 150mm-500mm | 3mm-50mm | 10mm-300mm |
| 304 | 8mm-200mm | 150mm-500mm | 3mm-50mm | 10mm-300mm |
| 304L | 8mm-200mm | 150mm-500mm | 3mm-50mm | 10mm-300mm |
| 309 | 8mm-200mm | 150mm-500mm | 3mm-50mm | 10mm-300mm |
| 310S(2520) | 8mm-200mm | 150mm-500mm | 3mm-50mm | 10mm-300mm |
| 316 | 8mm-200mm | 150mm-500mm | 3mm-50mm | 10mm-300mm |
| 316L | 8mm-200mm | 150mm-500mm | 3mm-50mm | 10mm-300mm |
| 317 | 8mm-200mm | 150mm-500mm | 3mm-50mm | 10mm-300mm |
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 -3.0 |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |
Application of stainless steel Hexagon Bar :
| Petrochemical Industry | Screw drill, Drilling steel, Marine drilling platform, Production platform, Oil storage ship, Floating Production Storage and Offload, lift platform, Pumps, Valves, Tubes, Pipes, etc. |
| Power Industry | Hydropower plant, Thermal power plant, nuclear power plant, Pump, Valve, Boilers, Steam turbines, Generator sets, Pumps, Valves, Tubes, Pipes, etc. |
| Machinery Manufacturing | Automobile manufacturing, shipbuilding, Aerospace manufacturing, Fasteners, Bolts, Nuts, Automobile parts, Medical apparatus and instruments, Pumps, Valves, Tubes, Pipes, etc. |
| Automobile manufacturing | Axles, Instruments, Electronic parts and components, , Sensors, Turbocharger system, exhaust system, Fasteners, Bolts, Nuts, Pumps, Valves, Tubes, Pipes, etc. |
| Others | Military industry, Environment protection, Coal and mining, etc |
Application of stainless steel Flat Bar :
Stainless steel flat bar applies to construction field, ships building industry, petroleum ,
chemical industries, war and electricity industries, food processing and medical industry,
boiler heat exchanger, machinery and hardware fields.Stainless steel plate can be made
according to the customers requirements.
FAQ:
Q1. What are your company's main products ?
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.
Q3: What is the terms of packing?
A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.
Q4:What is your delivery time?
A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5. What are the advantages of your company ?
A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q6. How many coutries you already exported ?
A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
Q7. Can you provide sample ?
A7: We can provide the samll samples in stock for free, as long as you contact us.
Customized samples will take about 5-7days.
