Product Details
Place of Origin: Shandong China
Brand Name: ZGMC
Certification: ISO TUV SGS BIS CE
Model Number: Stainless Steel Flat Bar
Payment & Shipping Terms
Minimum Order Quantity: 3Tons
Price: Negotiable
Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time: 5-15days depend on the quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability: 5000Tons Per Months
Grade: |
Stainless Steel |
Application: |
Construction,Industry |
Standard: |
AiSi, ASTM, DIN, GB, JIS, AISI, ASTM, GB, DIN, EN, Etc. |
Technique: |
Hot Rolled,Cold Drawn Hot Rolled Forged |
Width: |
1-2500mm |
Length: |
As Required |
Grade: |
Stainless Steel |
Application: |
Construction,Industry |
Standard: |
AiSi, ASTM, DIN, GB, JIS, AISI, ASTM, GB, DIN, EN, Etc. |
Technique: |
Hot Rolled,Cold Drawn Hot Rolled Forged |
Width: |
1-2500mm |
Length: |
As Required |

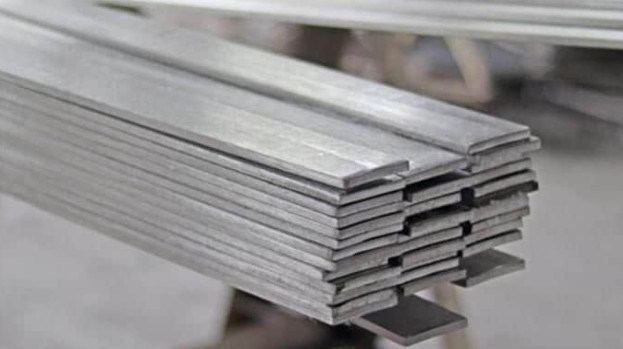

Grade 304 316L Hot Rolled / Cold Drawn Polished Stainless Steel Flat Strip SS Flat Bar
Product Description:
Stainless steel flat bar is one profile that easily machined,stamped and welded, with strength, corrosion resistance and a finish that is easily cleaned.
There are two kinds of the flat bars, one is the True mill flat bar another is Sheared flat bar,The difference between a true mill flat bar and sheared or flat bar cut from the plate is dimensional tolerance. In the true flat bar, tolerances for width and thickness are restrictive and have the better finish. In cutting bar from the plate, the diametrical tolerance will be more generous and in line with the cutting method.
Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 -3.0 |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |
Size Details:
Length tolerance of flat bar in cut-length or multiple length should be in accordance with
1,Length≤4m………………….0～+30mm
2,Length>4m---6mm…………0～+50mm
3,Length>6m………………….0～+70mm
| Product Name | 304 316L bright stainless mild steel flat bar sizes | |
| Material | 200 series: 201,202 300 series: 301,304,304/L,309S,310S,316/L/H/Ti,321/H 400 series: 409/L,410,,420,430 600 series: 13-8ph,15-5ph,17-4ph,17-7ph(630,631),660A/B/C/D, Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760,2304,904L Other: 1.4057,1.4313,1.4362,1.4372,1.4378,1.4418,1.4482,1.4597,1.4615, 1.4662,1.4669,1.4913,1.4923 etc |
|
| Length | 3000mm, 6000mm or according to the customer's requirement. | |
| Type | Round bar, square bar, flat bar, hexagon bar, angle bar, channel bar, threaded bar | |
| Use | Petroleum, chemical, construction, textile, medicine, aviation, aerospace, railway, highway, landscape protection, metallurgical machinery and other fields. |
|
| Certificate | ISO9001 | |
| Surface | bright,pickled,black | |
| Technique | Forged/Hot Rolled/Hot Drawn/Cold Rolled | |
| Shape | Round bar | Diameter: 1mm~400mm |
| Angle bar | Size: 1mm*20mm*20mm~20mm*100mm*100mm | |
| Square bar | Size: 3mm*3mm~500mm*500mm | |
| Flat bar | Thickness: 1mm~500mm | |
| Width: 10mm~1000mm | ||
| Hexagonal | Size: 1mm~100mm | |
| Diameter± | as required | |
| Quality | Our production equipment 24 hours of continuous temperature work, to ensure the unity of the product roundness, elongation, tensile strength and yield strength. Welcome customers to our company to detect the products before shipment. |
|
| Package | Standard seaworthy packing(plastic&wooden) or according to the customer's requests |
|
| Delivery time | Most within 15 working days after deposit received | |
| Productivity | 2500 tons/month | |
| Remarks | OEM / Free Sample / Mixed item / Factory visit are welcome | |
Application of stainless steel flat bar
stainless steel bar products are used in many applications include:
FAQ:
Q1. What are your company's main products ?
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.
Q3: What is the terms of packing?
A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.
Q4:What is your delivery time?
A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5. What are the advantages of your company ?
A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q6. How many coutries you already exported ?
A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.
Q7. Can you provide sample ?
A7: We can provide the samll samples in stock for free, as long as you contact us.
Customized samples will take about 5-7days.
