Product Details
Place of Origin: Shandong China
Brand Name: ZGMC
Certification: ISO TUV SGS BIS CE
Model Number: Stainless Steel Angle Bar
Payment & Shipping Terms
Minimum Order Quantity: 3Tons
Price: Negotiable
Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time: 5-15days depend on the quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability: 5000Tons Per Months
Material: |
Stainless Steel |
Standard: |
JIS, ASTM, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, Etc |
Application: |
Profile Structure |
Surface: |
Pickling |
Technique: |
Hot Rolled |
Edge: |
Mill Edge , Slit Edge |
Size: |
40*40 - 200*200mm |
Type: |
Equal Angle |
Length: |
6m Or Customers' Requirements |
Other Grade: |
201 304 316L 310S 2205.etc |
Material: |
Stainless Steel |
Standard: |
JIS, ASTM, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, Etc |
Application: |
Profile Structure |
Surface: |
Pickling |
Technique: |
Hot Rolled |
Edge: |
Mill Edge , Slit Edge |
Size: |
40*40 - 200*200mm |
Type: |
Equal Angle |
Length: |
6m Or Customers' Requirements |
Other Grade: |
201 304 316L 310S 2205.etc |

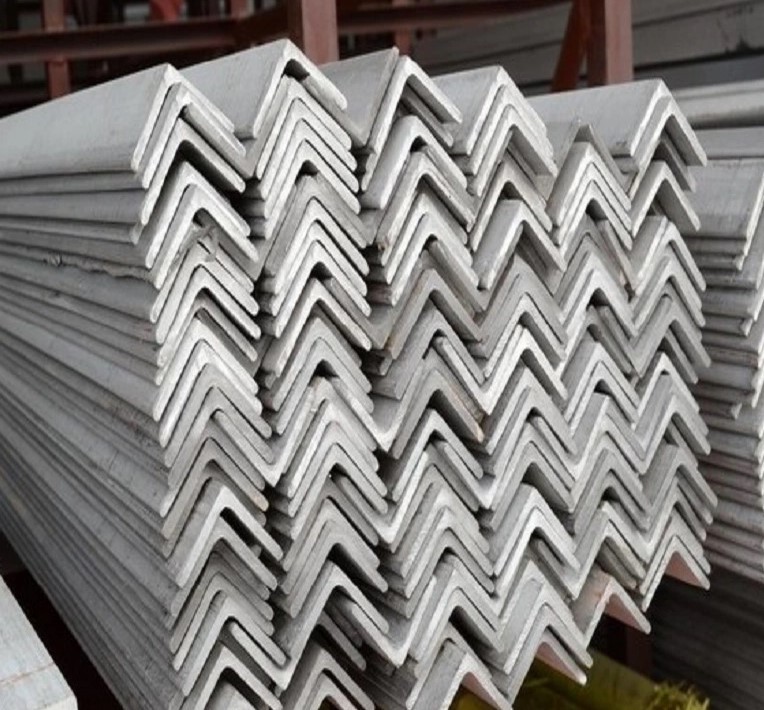

Stainless Steel Angle Bar 201 202 Polish Finished Cold Drawn SS Angle Iron Hairline Finished
Chemical composition:
| C | Si | Mn | Cr | N | P | S | Ni | Mo | Ti | |
| 201 | ≤0.15 | ≤0.75 | 5.5~7.50 | 13.50~15.00 | ≤0.25 | ≤0.060 | ≤0.03 | 3.50~5.50 | - | - |
| 202 | ≤0.15 | ≤1.00 | ≤7.5~10.0 | 17.00~19.00 | ≤0.25 | ≤0.060 | ≤0.03 | 4.00~6.00 | - | - |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | 18.00~20.00 | ≤0.10 | ≤0.045 | ≤0.03 | 8.00~11.00 | - | - |
| 304l | ≤0.03 | ≤1.00 | ≤2.00 | 18.00~20.00 | - | ≤0.035 | ≤0.03 | 8.00~11.00 | - | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | 16.00~18.50 | - | ≤0.035 | ≤0.03 | 10.00~14.00 | 2.00~3.00 | - |
| 316l | ≤0.03 | ≤0.75 | ≤2.00 | 16.00~18.00 | - | ≤0.045 | ≤0.03 | 10.00~14.00 | 2.00~3.00 | - |
| 309S | ≤0.08 | ≤1.00 | ≤2.00 | 22.00~24.00 | - | ≤0.045 | ≤0.03 | 12.00~15.00 | - | - |
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | 24.00~26.00 | - | ≤0.035 | ≤0.03 | 19.00~22.00 | - | - |
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | 17.00~19.00 | - | ≤0.035 | ≤0.03 | 9.00~12.00 | - | ≥5×C% |
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | 16.00~18.00 | - | ≤0.040 | ≤0.03 | ≤0.60 | - | - |
| 904l | ≤2.00 | ≤0.045 | ≤1.00 | 19.00~23.00 | - | ≤0.035 | - | 23.00~28.00 | 4.00~5.00 | - |
Product Description:
Equal angle bars represent a broad product line of bar-shaped building elements. They do have parallel legs and their tolerances are defined by ASTM A 484, the laser fused execution has additionally the product standard defined by ASTM A1069. The MTC (material test certificate) is 3.1 according to EN 10204.
Generally angle bars in stainless steel are used in commerce and industry but also in machinery and equipment building.
The use of stainless steel profiles is characterized by a high flexibility of composition and a fast and cost reduced construction (through the possibility of prefabrication in the steel production).
Stainless steel profiles are produced mainly from scrap and can be recycled again after utilization so new resources can be conserved.
| Standard |
ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311, DIN 1654-5,DIN 17440,GB/T 1220 |
|
| Related Material |
304,304L,309S,310S,316,316L,316Ti,317,317L,321,347H,201,202, 410,420,430,etc |
|
| Type | Round,square,hexagonal,flat,angle | |
| Surface | Pickled,Black,Bright,Polishing,Blasting,etc | |
| Specifications | Round bar | Diameter: 3mm~800mm |
| Angle bar | Size: 3mm*20mm*20mm~12mm*100mm*100mm | |
| Square bar | Size: 4mm*4mm~100mm*100mm | |
| Flat bar | Thickness: 2mm~100mm | |
| Width: 10mm~500mm | ||
| Hexagonal | Size: 2mm~100mm | |
| Length | 6m,5.8m,12m or as required | |
| Price Term | EX-Work, FOB, CFR, CIF,CNF | |
Size of our on sale angle stainless steel bars:
| Specification Leg length*leg length*thickness (mm) |
Weight (kg/m) |
Specification Leg length*leg length*thickness (mm) |
Weight (kg/m) |
| 25*25*3 | 1.124 | 90*90*8 | 10.946 |
| 25*25*4 | 1.459 | 90*90*10 | 13.476 |
| 30*30*3 | 1.373 | 100*100*6 | 9.366 |
| 30*30*4 | 1.786 | 100*100*7 | 10.83 |
| 40*40*3 | 1.852 | 100*100*8 | 12.276 |
| 40*40*4 | 2.422 | 100*100*10 | 15.12 |
| 40*40*5 | 2.976 | 100*100*12 | 17.898 |
| 45*45*3 | 2.088 | 110*110*7 | 11.928 |
| 45*45*4 | 2.736 | 110*110*8 | 13.532 |
| 45*45*5 | 3.369 | 110*110*10 | 16.69 |
| 50*50*3 | 2.332 | 110*110*12 | 19.782 |
| 50*50*4 | 3.059 | 125*125*8 | 15.504 |
| 50*50*5 | 3.77 | 125*125*10 | 19.133 |
| 50*50*6 | 4.465 | 125*125*12 | 22.696 |
| 63*63*5 | 4.822 | 125*125*14 | 26.193 |
| 63*63*6 | 5.721 | 140*140*10 | 21.488 |
| 63*63*8 | 7.469 | 140*140*12 | 25.522 |
| 70*70*5 | 5.397 | 140*140*14 | 29.49 |
| 70*70*6 | 6.406 | 160*160*10 | 24.729 |
| 70*70*7 | 7.398 | 160*160*12 | 29.391 |
| 70*70*8 | 8.373 | 160*160*14 | 33.987 |
| 75*75*5 | 5.818 | 160*160*16 | 38.518 |
| 75*75*6 | 6.905 | 180*180*12 | 33.159 |
| 75*75*7 | 7.976 | 180*180*14 | 38.383 |
| 75*75*8 | 9.030 | 180*180*16 | 43.542 |
| 75*75*10 | 11.089 | 180*180*18 | 48.634 |
| 80*80*6 | 7.376 | 200*200*14 | 42.894 |
| 80*80*7 | 8.525 | 200*200*16 | 48.68 |
| 80*80*8 | 9.658 | 200*200*18 | 54.401 |
| 80*80*10 | 11.874 | 200*200*20 | 60.056 |
| 90*90*6 | 8.35 | 200*200*24 | 71.168 |
| 90*90*7 | 9.656 | ||
Unstandard Size of stainless steel angle bar products we can also provide. Kindly tell me the detail informations of the size and grade of the stainless steel angle bar when you send your inquiry to us.
Features:
1. Weldability,
2. Plastic deformation properties
3. Precision tolerance
4. Certain mechanical strength
5. Rust-resistence if use stainless steel or do paiting , galvanizing and anti-corrosion technology
6. Easy handling
Our Advantage:
1. Honest business with competitive price
2. Professional service on export process
3. Good payment term
4. Good reputation en every market
5. Quality assurance
6. Always a pre-production sample before mass production
7. Always final inspection before mass production
