Product Details
Place of Origin: Shandong China
Brand Name: ZGMC
Certification: ISO TUV SGS BIS CE
Model Number: Stainless Steel Angle Bar
Payment & Shipping Terms
Minimum Order Quantity: 3Tons
Price: Negotiable
Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time: 5-15days depend on the quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability: 5000Tons Per Months
Material: |
Stainless Steel |
Standard: |
JIS, ASTM, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, Etc |
Application: |
Profile Structure |
Surface: |
Pickling |
Technique: |
Hot Rolled |
Edge: |
Mill Edge , Slit Edge |
Size: |
40*40 - 200*200mm |
Type: |
Equal Angle |
Length: |
6m Or Customers' Requirements |
Other Grade: |
201 304 316L 310S 2205.etc |
Material: |
Stainless Steel |
Standard: |
JIS, ASTM, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, Etc |
Application: |
Profile Structure |
Surface: |
Pickling |
Technique: |
Hot Rolled |
Edge: |
Mill Edge , Slit Edge |
Size: |
40*40 - 200*200mm |
Type: |
Equal Angle |
Length: |
6m Or Customers' Requirements |
Other Grade: |
201 304 316L 310S 2205.etc |
ASTM AISI 304 316 Hot Rolled Stainless Steel Angle Bars For Vehicles , Construction
Product Description:
| Standard |
GB/T 1220,ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311,DIN 1654-5,DIN 17440 |
|
| Related Material |
304,304L,309S,310S,316,316L,316Ti,317,317L,321,347H,201,202, 410,420,430,etc |
|
| Other Types | Round,square,hexagonal,flat | |
| Surface Treatment | Bright,Polishing,Blasting,etc | |
| Specifications | Round bar | Diameter: 3mm~800mm |
| Angle bar | Size: 3mm*20mm*20mm~12mm*100mm*100mm | |
| Square bar | Size: 4mm*4mm~100mm*100mm | |
| Flat bar | Thickness: 2mm~100mm | |
| Width: 10mm~500mm | ||
| Hexagonal | Size: 2mm~100mm | |
| Length | 6m or as required | |
|
Application |
acidic, chemical, fresh and salt water environments | |
Chemical composition:
| C | Si | Mn | Cr | N | P | S | Ni | Mo | Ti | |
| 201 | ≤0.15 | ≤0.75 | 5.5~7.50 | 13.50~15.00 | ≤0.25 | ≤0.060 | ≤0.03 | 3.50~5.50 | - | - |
| 202 | ≤0.15 | ≤1.00 | ≤7.5~10.0 | 17.00~19.00 | ≤0.25 | ≤0.060 | ≤0.03 | 4.00~6.00 | - | - |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | 18.00~20.00 | ≤0.10 | ≤0.045 | ≤0.03 | 8.00~11.00 | - | - |
| 304l | ≤0.03 | ≤1.00 | ≤2.00 | 18.00~20.00 | - | ≤0.035 | ≤0.03 | 8.00~11.00 | - | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | 16.00~18.50 | - | ≤0.035 | ≤0.03 | 10.00~14.00 | 2.00~3.00 | - |
| 316l | ≤0.03 | ≤0.75 | ≤2.00 | 16.00~18.00 | - | ≤0.045 | ≤0.03 | 10.00~14.00 | 2.00~3.00 | - |
| 309S | ≤0.08 | ≤1.00 | ≤2.00 | 22.00~24.00 | - | ≤0.045 | ≤0.03 | 12.00~15.00 | - | - |
| 310S | ≤0.08 | ≤1.00 | ≤2.00 | 24.00~26.00 | - | ≤0.035 | ≤0.03 | 19.00~22.00 | - | - |
| 321 | ≤0.08 | ≤1.00 | ≤2.00 | 17.00~19.00 | - | ≤0.035 | ≤0.03 | 9.00~12.00 | - | ≥5×C% |
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | 16.00~18.00 | - | ≤0.040 | ≤0.03 | ≤0.60 | - | - |
| 904l | ≤2.00 | ≤0.045 | ≤1.00 | 19.00~23.00 | - | ≤0.035 | - | 23.00~28.00 | 4.00~5.00 | - |

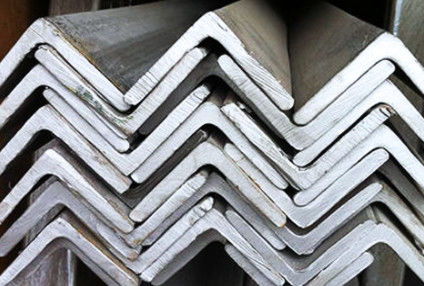

Stainless steel angle is a hot rolled angle shape available with either equal or unequal leg length. Inside radius corner add strength to the shape. Stainless angle is well suited for structural applications that require strength and excellent corrosion resistance. Stainless steel angle also has a dull gray, mill finish and is used in all types of fabrication projects exposed to corrosive environments, such as acidic, chemical, fresh and salt water environments.
Size of our on sale angle stainless steel bars:
| Specification Leg length*leg length*thickness (mm) |
Weight (kg/m) |
Specification Leg length*leg length*thickness (mm) |
Weight (kg/m) |
| 25*25*3 | 1.124 | 90*90*8 | 10.946 |
| 25*25*4 | 1.459 | 90*90*10 | 13.476 |
| 30*30*3 | 1.373 | 100*100*6 | 9.366 |
| 30*30*4 | 1.786 | 100*100*7 | 10.83 |
| 40*40*3 | 1.852 | 100*100*8 | 12.276 |
| 40*40*4 | 2.422 | 100*100*10 | 15.12 |
| 40*40*5 | 2.976 | 100*100*12 | 17.898 |
| 45*45*3 | 2.088 | 110*110*7 | 11.928 |
| 45*45*4 | 2.736 | 110*110*8 | 13.532 |
| 45*45*5 | 3.369 | 110*110*10 | 16.69 |
| 50*50*3 | 2.332 | 110*110*12 | 19.782 |
| 50*50*4 | 3.059 | 125*125*8 | 15.504 |
| 50*50*5 | 3.77 | 125*125*10 | 19.133 |
| 50*50*6 | 4.465 | 125*125*12 | 22.696 |
| 63*63*5 | 4.822 | 125*125*14 | 26.193 |
| 63*63*6 | 5.721 | 140*140*10 | 21.488 |
| 63*63*8 | 7.469 | 140*140*12 | 25.522 |
| 70*70*5 | 5.397 | 140*140*14 | 29.49 |
| 70*70*6 | 6.406 | 160*160*10 | 24.729 |
| 70*70*7 | 7.398 | 160*160*12 | 29.391 |
| 70*70*8 | 8.373 | 160*160*14 | 33.987 |
| 75*75*5 | 5.818 | 160*160*16 | 38.518 |
| 75*75*6 | 6.905 | 180*180*12 | 33.159 |
| 75*75*7 | 7.976 | 180*180*14 | 38.383 |
| 75*75*8 | 9.030 | 180*180*16 | 43.542 |
| 75*75*10 | 11.089 | 180*180*18 | 48.634 |
| 80*80*6 | 7.376 | 200*200*14 | 42.894 |
| 80*80*7 | 8.525 | 200*200*16 | 48.68 |
| 80*80*8 | 9.658 | 200*200*18 | 54.401 |
| 80*80*10 | 11.874 | 200*200*20 | 60.056 |
| 90*90*6 | 8.35 | 200*200*24 | 71.168 |
| 90*90*7 | 9.656 | ||
Unstandard Size of stainless steel angle bar products we can also provide. Kindly tell me the detail informations of the size and grade of the stainless steel angle bar when you send your inquiry to us.
Our Advantage:
1. Honest business with competitive price
2. Professional service on export process
3. Good payment term
4. Good reputation en every market
5. Quality assurance
6. Always a pre-production sample before mass production
7. Always final inspection before mass production
Features:
1. Weldability,
2. Plastic deformation properties
3. Precision tolerance
4. Certain mechanical strength
5. Rust-resistence if use stainless steel or do paiting , galvanizing and anti-corrosion technology
6. Easy handling
