Home > products > Stainless Steel Angle Bar > Slit Edge Hot Rolled SS Angle Bar 60x60mm 316L With Pickling Surface

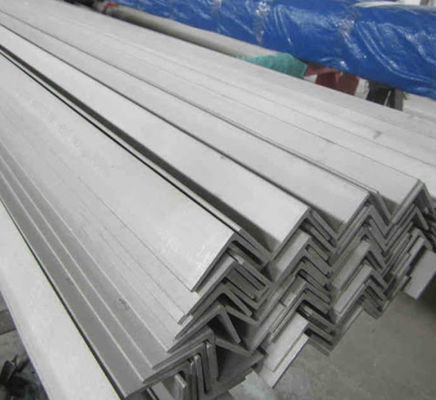

Slit Edge Hot Rolled SS Angle Bar 60x60mm 316L With Pickling Surface

Product Details

Place of Origin: Shandong China

Brand Name: ZGMC

Certification: ISO TUV SGS BIS CE

Model Number: Stainless Steel Angle Bar

Payment & Shipping Terms

Minimum Order Quantity: 3Tons

Price: Negotiable

Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.

Delivery Time: 5-15days depend on the quantity

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA

Supply Ability: 5000Tons Per Months

Get Best Price
Highlight:

60x60mm ss angle bar

,

JIS 316L SS Angle Bar

,

316L equal angle bar

Product Name:
Stainless Steel Angle Bar
Standard:
JIS, ASTM, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, Etc
Application:
Profile Structure
Surface:
Pickling
Technique:
Hot Rolled
Edge:
Mill Edge , Slit Edge
Size:
40*40 - 200*200mm
Type:
Equal Angle
Length:
6m Or Customers' Requirements
Name:
Slit Edge Hot Rolled SS Angle Bar 60x60mm 316L With Pickling Surface
Product Name:
Stainless Steel Angle Bar
Standard:
JIS, ASTM, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, Etc
Application:
Profile Structure
Surface:
Pickling
Technique:
Hot Rolled
Edge:
Mill Edge , Slit Edge
Size:
40*40 - 200*200mm
Type:
Equal Angle
Length:
6m Or Customers' Requirements
Name:
Slit Edge Hot Rolled SS Angle Bar 60x60mm 316L With Pickling Surface
Slit Edge Hot Rolled SS Angle Bar 60x60mm 316L With Pickling Surface

Slit Edge Hot Rolled SS Angle Bar 60x60mm 316L With Pickling Surface





Product Description:



Slit Edge Hot Rolled SS Angle Bar 60x60mm 316L With Pickling Surface is a type of stainless steel angle bar with specific dimensions and properties.



This angle bar is manufactured through a hot rolling process, which gives it excellent strength and durability. The "slit edge" refers to the fact that the edges of the bar have been cut or slit to achieve a precise dimensional accuracy.



The size of this angle bar is 60x60mm, indicating that it has a width of 60mm and a height of 60mm. This makes it suitable for various applications where structural support is required.



The material used in this angle bar is grade 316L stainless steel. 316L stainless steel is known for its superior corrosion resistance, making it ideal for use in environments exposed to moisture, chemicals, or saltwater.



Furthermore, the Pickling Surface treatment is applied to this angle bar. Pickling involves the use of an acid to remove surface impurities and oxidation, resulting in a clean and uniform surface finish. This treatment enhances the corrosion resistance and aesthetic appearance of the bar.



In summary, Slit Edge Hot Rolled SS Angle Bar 60x60mm 316L With Pickling Surface is a high-quality stainless steel angle bar with precise dimensions, excellent corrosion resistance, and a smooth surface finish. It finds applications in construction, fabrication, and industrial settings where strength, durability, and corrosion resistance are essential requirements.



Standard

GB/T 1220,ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311,DIN 1654-5,DIN 17440

Related Material

304,304L,309S,310S,316,316L,316Ti,317,317L,321,347H,201,202,

410,420,430,etc

Other Types Round,square,hexagonal,flat
Surface Treatment Bright,Polishing,Blasting,etc
Specifications Round bar Diameter: 3mm~800mm
Angle bar Size: 3mm*20mm*20mm~12mm*100mm*100mm
Square bar Size: 4mm*4mm~100mm*100mm
Flat bar Thickness: 2mm~100mm
Width: 10mm~500mm
Hexagonal Size: 2mm~100mm
Length 6m or as required

Application

acidic, chemical, fresh and salt water environments





Chemical composition:



  C Si Mn Cr N P S Ni Mo Ti
201 ≤0.15 ≤0.75 5.5~7.50 13.50~15.00 ≤0.25 ≤0.060 ≤0.03 3.50~5.50 - -
202 ≤0.15 ≤1.00 ≤7.5~10.0 17.00~19.00 ≤0.25 ≤0.060 ≤0.03 4.00~6.00 - -
304 ≤0.08 ≤1.00 ≤2.00 18.00~20.00 ≤0.10 ≤0.045 ≤0.03 8.00~11.00 - -
304l ≤0.03 ≤1.00 ≤2.00 18.00~20.00 - ≤0.035 ≤0.03 8.00~11.00 - -
316 ≤0.08 ≤1.00 ≤2.00 16.00~18.50 - ≤0.035 ≤0.03 10.00~14.00 2.00~3.00 -
316l ≤0.03 ≤0.75 ≤2.00 16.00~18.00 - ≤0.045 ≤0.03 10.00~14.00 2.00~3.00 -
309S ≤0.08 ≤1.00 ≤2.00 22.00~24.00 - ≤0.045 ≤0.03 12.00~15.00 - -
310S ≤0.08 ≤1.00 ≤2.00 24.00~26.00 - ≤0.035 ≤0.03 19.00~22.00 - -
321 ≤0.08 ≤1.00 ≤2.00 17.00~19.00 - ≤0.035 ≤0.03 9.00~12.00 - ≥5×C%
430 ≤0.12 ≤0.75 ≤1.00 16.00~18.00 - ≤0.040 ≤0.03 ≤0.60 - -
904l ≤2.00 ≤0.045 ≤1.00 19.00~23.00 - ≤0.035 - 23.00~28.00 4.00~5.00 -









































Stainless steel angle is a hot rolled angle shape available with either equal or unequal leg length. Inside radius corner add strength to the shape. Stainless angle is well suited for structural applications that require strength and excellent corrosion resistance. Stainless steel angle also has a dull gray, mill finish and is used in all types of fabrication projects exposed to corrosive environments, such as acidic, chemical, fresh and salt water environments.





Size of our on sale angle stainless steel bars:



Specification
Leg length*leg length*thickness
(mm)

Weight

(kg/m)

Specification
Leg length*leg length*thickness (mm)
Weight
(kg/m)
25*25*3 1.124 90*90*8 10.946
25*25*4 1.459 90*90*10 13.476
30*30*3 1.373 100*100*6 9.366
30*30*4 1.786 100*100*7 10.83
40*40*3 1.852 100*100*8 12.276
40*40*4 2.422 100*100*10 15.12
40*40*5 2.976 100*100*12 17.898
45*45*3 2.088 110*110*7 11.928
45*45*4 2.736 110*110*8 13.532
45*45*5 3.369 110*110*10 16.69
50*50*3 2.332 110*110*12 19.782
50*50*4 3.059 125*125*8 15.504
50*50*5 3.77 125*125*10 19.133
50*50*6 4.465 125*125*12 22.696
63*63*5 4.822 125*125*14 26.193
63*63*6 5.721 140*140*10 21.488
63*63*8 7.469 140*140*12 25.522
70*70*5 5.397 140*140*14 29.49
70*70*6 6.406 160*160*10 24.729
70*70*7 7.398 160*160*12 29.391
70*70*8 8.373 160*160*14 33.987
75*75*5 5.818 160*160*16 38.518
75*75*6 6.905 180*180*12 33.159
75*75*7 7.976 180*180*14 38.383
75*75*8 9.030 180*180*16 43.542
75*75*10 11.089 180*180*18 48.634
80*80*6 7.376 200*200*14 42.894
80*80*7 8.525 200*200*16 48.68
80*80*8 9.658 200*200*18 54.401
80*80*10 11.874 200*200*20 60.056
90*90*6 8.35 200*200*24 71.168
90*90*7 9.656



Unstandard Size of stainless steel angle bar products we can also provide. Kindly tell me the detail informations of the size and grade of the stainless steel angle bar when you send your inquiry to us.







Our Advantage:



1. Honest business with competitive price

2. Professional service on export process

3. Good payment term

4. Good reputation en every market

5. Quality assurance

6. Always a pre-production sample before mass production

7. Always final inspection before mass production





Application:



The application of Slit Edge Hot Rolled SS Angle Bar 60x60mm 316L With Pickling Surface can be diverse, and here are some common applications:



  1. Construction and Architecture: It is used in constructing frames, supports, and connections in buildings, bridges, shelves, etc.
  2. Mechanical Manufacturing: It is employed in manufacturing frames, supports, and connecting components of mechanical equipment, such as machines, cranes, and conveyors.
  3. Industrial Framework: It is utilized for constructing supportive structures of industrial equipment, such as production lines, pipeline supports, and electrical control cabinets.
  4. Decoration and Architectural Design: It is applied in decorative structures, railings, handrails, window and door frames, adding durability and aesthetics.
  5. Solar and Wind Power Generation: It is used in supporting structures of solar panels and wind turbines, capable of withstanding harsh environmental conditions.
  6. Shipbuilding and Marine Engineering: It is employed in constructing ship hulls, deck supports, mooring equipment, etc., showcasing corrosion resistance.
  7. Transportation: It is utilized in manufacturing frames, chassis structures, and rail transportation facilities of vehicles.
  8. Chemical and Petroleum Industry: It is applied in corrosion-resistant equipment, storage tanks, and pipeline supports, capable of withstanding chemical substances.



These are just some common applications, and the specific usage depends on the specific requirements and design of each project. The slit edge hot rolled SS angle bar with pickling surface offers excellent corrosion resistance, strength, and dimensional stability, making it a suitable choice for various industrial and architectural applications.
