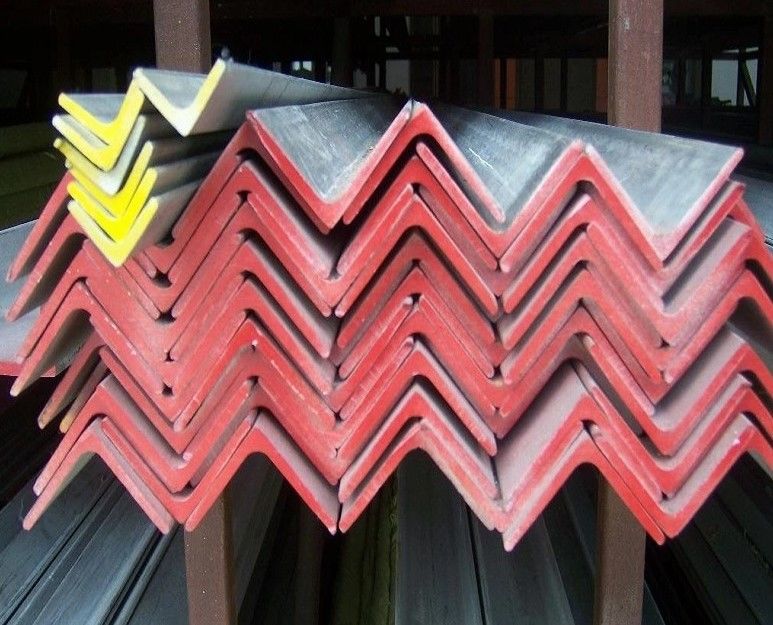

Profile Structure Slit Edge GB Stainless Steel Angle Bar 50x50x6 304 316L

Product Details

Place of Origin: Shandong China

Brand Name: ZGMC

Certification: ISO TUV SGS BIS CE

Model Number: Stainless Steel Angle Bar

Payment & Shipping Terms

Minimum Order Quantity: 3Tons

Price: Negotiable

Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.

Delivery Time: 5-15days depend on the quantity

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA

Supply Ability: 5000Tons Per Months

Get Best Price
Highlight:

304 SS angle bar 50x50x6

,

angle bar 50x50x6

,

Stainless Steel angle bar 50x50x6

Product Name:
Stainless Steel Angle Bar
Standard:
JIS, ASTM, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, Etc
Application:
Profile Structure
Surface:
Pickling
Technique:
Hot Rolled
Edge:
Mill Edge , Slit Edge
Size:
50*50*6mm
Type:
Equal Angle
Length:
6m Or Customers' Requirements
Name:
Profile Structure Slit Edge GB Stainless Steel Angle Bar 50x50x6 304 316L
Product Name:
Stainless Steel Angle Bar
Standard:
JIS, ASTM, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, Etc
Application:
Profile Structure
Surface:
Pickling
Technique:
Hot Rolled
Edge:
Mill Edge , Slit Edge
Size:
50*50*6mm
Type:
Equal Angle
Length:
6m Or Customers' Requirements
Name:
Profile Structure Slit Edge GB Stainless Steel Angle Bar 50x50x6 304 316L
Profile Structure Slit Edge GB Stainless Steel Angle Bar 50x50x6 304 316L

Profile Structure Slit Edge GB Stainless Steel Angle Bar 50x50x6 304 316L







Product Description:



Profile Structure Slit Edge GB Stainless Steel Angle Bar 50x50x6 304 316L is a type of stainless steel angle bar with a profiled structure and a slit edge.



  1. Dimension: The angle bar has a dimension of 50x50x6 (mm), indicating its width, height, and thickness, respectively.
  2. Material: Made of stainless steel grade 304 or 316L, which are common grades used in construction and industrial applications due to their excellent corrosion resistance and durability.
  3. Profile Structure: The profiled structure refers to the cross-sectional shape of the angle bar, which may have a specific profile or curvature to meet the design requirements of different applications.
  4. Slit Edge: The slit edge design helps to facilitate the installation and connection of the angle bar in construction or fabrication projects. It allows for easier bolting or welding to other components.
  5. Grades: 304 and 316L are grades of stainless steel. Grade 304 is a general-purpose stainless steel with good corrosion resistance and formability. Grade 316L offers enhanced corrosion resistance, especially in aggressive environments, due to the addition of molybdenum.



These angle bars are commonly used in construction, fabrication, and industrial applications where strength, corrosion resistance, and aesthetic appeal are important considerations. They can be utilized for framing, support structures, handrails, shelves, and other architectural or engineering purposes.













Size of our on sale angle stainless steel bars:



Specification
Leg length*leg length*thickness
(mm)

Weight

(kg/m)

Specification
Leg length*leg length*thickness (mm)
Weight
(kg/m)
25*25*3 1.124 90*90*8 10.946
25*25*4 1.459 90*90*10 13.476
30*30*3 1.373 100*100*6 9.366
30*30*4 1.786 100*100*7 10.83
40*40*3 1.852 100*100*8 12.276
40*40*4 2.422 100*100*10 15.12
40*40*5 2.976 100*100*12 17.898
45*45*3 2.088 110*110*7 11.928
45*45*4 2.736 110*110*8 13.532
45*45*5 3.369 110*110*10 16.69
50*50*3 2.332 110*110*12 19.782
50*50*4 3.059 125*125*8 15.504
50*50*5 3.77 125*125*10 19.133
50*50*6 4.465 125*125*12 22.696
63*63*5 4.822 125*125*14 26.193
63*63*6 5.721 140*140*10 21.488
63*63*8 7.469 140*140*12 25.522
70*70*5 5.397 140*140*14 29.49
70*70*6 6.406 160*160*10 24.729
70*70*7 7.398 160*160*12 29.391
70*70*8 8.373 160*160*14 33.987
75*75*5 5.818 160*160*16 38.518
75*75*6 6.905 180*180*12 33.159
75*75*7 7.976 180*180*14 38.383
75*75*8 9.030 180*180*16 43.542
75*75*10 11.089 180*180*18 48.634
80*80*6 7.376 200*200*14 42.894
80*80*7 8.525 200*200*16 48.68
80*80*8 9.658 200*200*18 54.401
80*80*10 11.874 200*200*20 60.056
90*90*6 8.35 200*200*24 71.168
90*90*7 9.656



Unstandard Size of stainless steel angle bar products we can also provide. Kindly tell me the detail informations of the size and grade of the stainless steel angle bar when you send your inquiry to us.





Product Detail:



Standard GB/T 1220,ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311,DIN 1654-5,DIN 17440
Related Material

304,304L,309S,310S,316,316L,316Ti,317,317L,321,347H,201,202,

410,420,430,etc

Other Types Round,square,hexagonal,flat
Surface Treatment Bright,Polishing,Blasting,etc
Specifications Round bar Diameter: 3mm~800mm
Angle bar Size: 3mm*20mm*20mm~12mm*100mm*100mm
Square bar Size: 4mm*4mm~100mm*100mm
Flat bar Thickness: 2mm~100mm
Width: 10mm~500mm
Hexagonal Size: 2mm~100mm
Length 6m or as required
Application acidic, chemical, fresh and salt water environments





Chemical composition:



  C Si Mn Cr N P S Ni Mo Ti
201 ≤0.15 ≤0.75 5.5~7.50 13.50~15.00 ≤0.25 ≤0.060 ≤0.03 3.50~5.50 - -
202 ≤0.15 ≤1.00 ≤7.5~10.0 17.00~19.00 ≤0.25 ≤0.060 ≤0.03 4.00~6.00 - -
304 ≤0.08 ≤1.00 ≤2.00 18.00~20.00 ≤0.10 ≤0.045 ≤0.03 8.00~11.00 - -
304l ≤0.03 ≤1.00 ≤2.00 18.00~20.00 - ≤0.035 ≤0.03 8.00~11.00 - -
316 ≤0.08 ≤1.00 ≤2.00 16.00~18.50 - ≤0.035 ≤0.03 10.00~14.00 2.00~3.00 -
316l ≤0.03 ≤0.75 ≤2.00 16.00~18.00 - ≤0.045 ≤0.03 10.00~14.00 2.00~3.00 -
309S ≤0.08 ≤1.00 ≤2.00 22.00~24.00 - ≤0.045 ≤0.03 12.00~15.00 - -
310S ≤0.08 ≤1.00 ≤2.00 24.00~26.00 - ≤0.035 ≤0.03 19.00~22.00 - -
321 ≤0.08 ≤1.00 ≤2.00 17.00~19.00 - ≤0.035 ≤0.03 9.00~12.00 - ≥5×C%
430 ≤0.12 ≤0.75 ≤1.00 16.00~18.00 - ≤0.040 ≤0.03 ≤0.60 - -
904l ≤2.00 ≤0.045 ≤1.00 19.00~23.00 - ≤0.035 - 23.00~28.00 4.00~5.00 -





Our Advantage:



1. Honest business with competitive price

2. Professional service on export process

3. Good payment term

4. Good reputation en every market

5. Quality assurance

6. Always a pre-production sample before mass production

7. Always final inspection before mass production





Features:



1. Weldability,

2. Plastic deformation properties

3. Precision tolerance

4. Certain mechanical strength

5. Rust-resistence if use stainless steel or do paiting , galvanizing and anti-corrosion technology

6. Easy handling

Application:



Applications of Profile Structure Slit Edge GB Stainless Steel Angle Bar 50x50x6 304 316L:



  1. Construction: Used in the fabrication and assembly of structures, frames, and supports in construction projects. It provides strength and stability to buildings, bridges, and other architectural structures.
  2. Industrial Fabrication: Suitable for fabricating industrial equipment, machinery, and frameworks. It can be used in the manufacturing of conveyors, platforms, and supports in industrial settings.
  3. Interior Decoration: Applied in interior design for creating shelves, handrails, partitions, and decorative elements. Its stainless steel finish adds a modern and sleek look to interior spaces.
  4. Exterior Applications: Used in exterior architectural applications such as cladding, facades, and railing systems. The stainless steel angle bar offers corrosion resistance and durability in outdoor environments.
  5. Marine and Offshore: Suitable for applications in the marine and offshore industries. It can be used in shipbuilding, offshore platforms, and marine structures due to its corrosion resistance and strength.
  6. Furniture Manufacturing: Employed in the production of furniture, particularly for frames, legs, and supports. The stainless steel angle bar provides stability and a contemporary aesthetic to furniture pieces.
  7. Custom Fabrication: Can be customized and fabricated according to specific project requirements. It is suitable for creating custom brackets, supports, and connections in various applications.



These are just some of the common applications of Profile Structure Slit Edge GB Stainless Steel Angle Bar 50x50x6 304 316L. The specific usage depends on the design, load requirements, and aesthetic considerations of each individual project.
