Home > products > Stainless Steel Angle Bar > Ship Building Stainless Steel Equal Angle Iron 25x25x3 ASTM 316

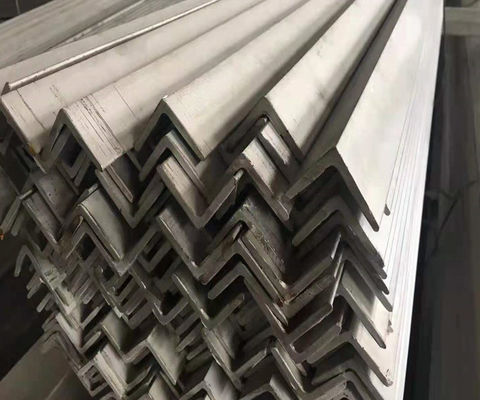

Ship Building Stainless Steel Equal Angle Iron 25x25x3 ASTM 316

Product Details

Place of Origin: Shandong China

Brand Name: ZGMC

Certification: ISO TUV SGS BIS CE

Model Number: Stainless Steel Angle Bar

Payment & Shipping Terms

Minimum Order Quantity: 3Tons

Price: Negotiable

Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.

Delivery Time: 5-15days depend on the quantity

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA

Supply Ability: 5000Tons Per Months

Get Best Price
Highlight:

316 angle iron 25x25x3

,

angle iron 25x25x3

,

ASTM 316 SS equal angle iron

Material:
Stainless Steel
Standard:
JIS, ASTM, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, Etc
Application:
Profile Structure
Surface:
Bright , Polished
Technique:
Cold Rolled , Hot Rolled
Edge:
Mill Edge , Slit Edge
Material:
Stainless Steel
Standard:
JIS, ASTM, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, Etc
Application:
Profile Structure
Surface:
Bright , Polished
Technique:
Cold Rolled , Hot Rolled
Edge:
Mill Edge , Slit Edge
Ship Building Stainless Steel Equal Angle Iron 25x25x3 ASTM 316

Equal Angle Bar GB 25 * 25 * 3 ASTM 316 Stainless Steel Angle Bar Ship Building





Product Description:





Product name Stainless Steel Angle Bar
Size Thickness:3-24mm; Length:3m,6m,9m,12m, or customized
Tolerance Weight tolerance: -4% to -10%;Width +/-0.8mm;Thickness +/-0.4mm;Length:4-12mm
Equal Angle Type: 2#-20#;Size: 20-200mm;Thickness: 3.0-24mm; Weight: 0.597-71.168kg/m
Unequal
Angle
Type: 2.5*1.6-20*12.5#;Size:25*16-200*125mm;Long Side: 25-200mm
Short Side: 16-125mm;Thickness: 3.0-18mm;Weight: 1.687-43.588kg/m
Material 201.202.301.302.304.304L.310S.316.316L.321.347,329,309S.2205.2507.2520.
430.410.440.904Lect. Or Customized
Standard GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
Surface Mill finish. Galvanized.Forged.Hot Rolled.Cold Drawn.Peeled or customized
Trade Term FOB CIF CFR CNF EXWORK
Application widely used in a variety of architectural and engineering
structures,such as
a.) beams, bridges, ship;
b.) transmission tower, reaction tower;
c.) lifting transportation machinery;
d.) industrial furnace;
e.)container frame, warehouse goods shelves, etc
Package Standard export sea-worthy packing or customized
Lead Time 3-15 days after deposit
Payment TT/LC
Sample we could offer the sample for free charge but do not pay the cost of freight.



With advanced techniques of angle bar forming and press bending, this stainless steel angle bar is manufactured with great capacities. It is a durable item, resistant from moisture and acidic conditions; hence, users wouldn’t have to worry about if it's vulnerable in getting rotten easily. We supply stainless channels in 304, 304L, 316L.The maximum thickness is 12mm and the minimum width is 20mm. It is remarkable that we provide stainless steel angle available in unequal side.





Regular Size:



Equal Angle Bar (A*T)
Size (Mm) Theoretical Weight (Kg/M) Size (Mm) Theoretical Weight (Kg/M) Size (Mm) Theoretical Weight (Kg/M)
25*3 1.124 75*7 7.976 110*14 22.809
25*4 1.459 75*8 9.03 125*8 15.504
30*3 1.373 75*10 11.089 125*10 19.133
30*4 1.786 80*6 7.376 125*12 22.696
40*3 1.852 80*7 8.525 125*14 26.193
40*4 2.422 80*8 9.658 140*10 21.488
40*5 2.976 80*10 11.874 140*12 25.522
50*4 3.059 90*6 8.35 140*14 29.49
50*5 3.77 90*7 9.658 140*16 35.393
50*6 4.465 90*8 10.946 160*10 24.729
60*5 4.52 90*10 13.476 160*12 29.391
60*6 5.42 90*12 15.94 160*14 33.987
63*5 4.822 100*6 9.366 160*16 38.518
63*6 5.721 100*7 10.83 180*12 33.159
63*8 7.469 100*8 12.276 180*14 38.518
63*10 9.151 100*10 15.12 180*16 43.542
70*5 5.397 100*12 20.611 180*18 48.634
70*6 6.406 100*16 23.257 200*14 42.894
70*7 7.398 110*7 11.928 200*16 48.68
70*8 8.373 110*8 13.532 200*18 54.401
75*5 5.818 110*10 16.69 200*20 60.056
75*6 6.905 110*12 19.782
Unequal Angle(A*T)
Size (Mm) Theoretical Weight (Kg/M) Size (Mm) Theoretical Weight (Kg/M) Size (Mm) Theoretical Weight (Kg/M)
25*16*3 0.912 75*50*8 7.431 125*80*7 11.066
32*20*3 1.171 75*50*10 9.098 125*80*8 12.551
32*20*4 1.522 80*50*5 5.005 125*80*10 15.474
40*25*3 1.484 80*50*6 5.935 125*80*12 18.33
40*25*4 1.936 80*50*7 6.848 140*90*8 14.1
45*28*3 1.687 80*50*8 7.745 140*90*10 17.475
45*28*4 2.203 90*56*5 5.661 140*90*12 20.724
50*32*3 1.908 90*56*6 6.717 140*90*14 23.908
50*32*4 2.494 90*56*8 8.779 160*100*10 19.872
56*36*3 2.153 100*63*7 8.722 160*100*14 27.274
56*36*4 2.818 100*63*8 9.878 160*100*16 30.853
56*396*5 3.466 100*63*10 12.142 180*110*10 22.273
63*40*4 3.185 100*80*6 8.35 180*110*12 26.464
63*40*5 3.92 100*80*7 9.656 180*110*14 30.589
63*40*6 4.638 100*80*8 10.946 180*110*16 34.649
70*45*5 4.403 100*80*10 13.476 200*125*12 29.761
70*45*6 5.218 110*70*6 8.35 200*125*14 34.436
70*45*7 6.011 110*70*7 9.656 200*125*16 39.045
75*50*5 4.808 110*70*8 10.946 200*125*18 43.588
75*50*6 5.699 110*70*10 13.476






Feature:



1. Weldability,

2. Plastic deformation properties

3. Certain mechanical strength

4. Rust-resistence if use stainless steel or do paiting , galvanizing and anti-corrosion technology







Application:



Stainless steel angle steel can be composed of various force-receiving members according to the different needs of the structure, and can also be used as a connecting member between the members. Used in various building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transporting machinery, ships, industrial furnaces, reaction towers, container racks and warehouse shelves.

Stainless steel angle steel is a carbon structural steel for construction. It is a steel section of simple section and is mainly used for the frame of metal components and workshops. Good weldability, plastic deformation properties and certain mechanical strength are required in use. The raw material billet for producing stainless steel angle steel is a low carbon square billet, and the finished stainless steel angle steel is delivered by hot rolling forming, normalizing or hot rolling.



Our Advantage:



1. Honest business with competitive price

2. Professional service on export process

3. Good payment term

4. Good reputation en every market

5. Quality assurance

6. Always a pre-production sample before mass production

7. Always final inspection before mass production







FAQ:



1. Q: Are you trading company or manufacturer ?

A: We are manufacturer.



2. Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



3. Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



4. Q: What is your terms of payment ?

A: Payment<=1000USD, 50% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.or negotiable.
