Product Details
Place of Origin: Shandong China
Brand Name: ZGMC
Certification: ISO TUV SGS BIS CE
Model Number: Stainless Steel Angle Bar
Payment & Shipping Terms
Minimum Order Quantity: 3Tons
Price: Negotiable
Packaging Details: With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Delivery Time: 5-15days depend on the quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability: 5000Tons Per Months
Material: |
Stainless Steel |
Standard: |
JIS, ASTM, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, Etc |
Application: |
Profile Structure |
Surface: |
Bright , Polished |
Technique: |
Cold Rolled , Hot Rolled |
Edge: |
Mill Edge , Slit Edge |
Material: |
Stainless Steel |
Standard: |
JIS, ASTM, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, Etc |
Application: |
Profile Structure |
Surface: |
Bright , Polished |
Technique: |
Cold Rolled , Hot Rolled |
Edge: |
Mill Edge , Slit Edge |

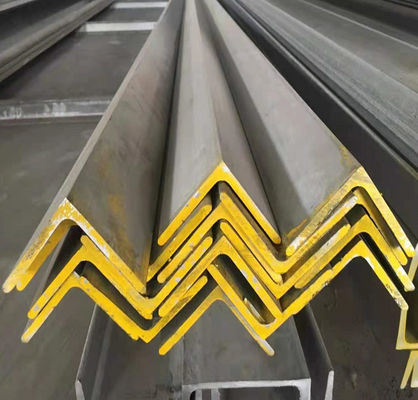

V Shaped En 1.4301 / 1.4325 / 1.4871 304 316 321 310 Stainless Steel Equal Unequal Angle Bar
Product Description:
| Product Name | Angle Steel |
| Material/Grade | 304l 304 316 316l 321 310 |
| Standard | AISI,ASTM,BS,GB,JIS |
| Type | Equal and Unequal |
| Technical | Cold Drawn, Hot Drawn, Matt Finish(On Request) |
| Application | Widely used in various building structure and engineering structure |
| Length | 6m-12m or Customer required |
| Surface | galvanized or clients request |
| Packing | as per our standard or clients request |
| Certificate | ISO,PMI |
| Advantages | Competitive price, Quality assurance, Short delivery time, Superior Service,Small MOQ |
With advanced techniques of angle bar forming and press bending, this stainless steel angle bar is manufactured with great capacities. It is a durable item, resistant from moisture and acidic conditions; hence, users wouldn’t have to worry about if it's vulnerable in getting rotten easily. We supply stainless channels in 304, 304L, 316L.The maximum thickness is 12mm and the minimum width is 20mm. It is remarkable that we provide stainless steel angle available in unequal side.
Application:
Stainless steel angle steel can be composed of various force-receiving members according to the different needs of the structure, and can also be used as a connecting member between the members. Used in various building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transporting machinery, ships, industrial furnaces, reaction towers, container racks and warehouse shelves.
Our Advantage:
1. Honest business with competitive price
2. Professional service on export process
3. Good payment term
4. Good reputation en every market
5. Quality assurance
6. Always a pre-production sample before mass production
7. Always final inspection before mass production
Regular Size:
| Equal Angle Bar (A*T) | |||||
| Size (Mm) | Theoretical Weight (Kg/M) | Size (Mm) | Theoretical Weight (Kg/M) | Size (Mm) | Theoretical Weight (Kg/M) |
| 25*3 | 1.124 | 75*7 | 7.976 | 110*14 | 22.809 |
| 25*4 | 1.459 | 75*8 | 9.03 | 125*8 | 15.504 |
| 30*3 | 1.373 | 75*10 | 11.089 | 125*10 | 19.133 |
| 30*4 | 1.786 | 80*6 | 7.376 | 125*12 | 22.696 |
| 40*3 | 1.852 | 80*7 | 8.525 | 125*14 | 26.193 |
| 40*4 | 2.422 | 80*8 | 9.658 | 140*10 | 21.488 |
| 40*5 | 2.976 | 80*10 | 11.874 | 140*12 | 25.522 |
| 50*4 | 3.059 | 90*6 | 8.35 | 140*14 | 29.49 |
| 50*5 | 3.77 | 90*7 | 9.658 | 140*16 | 35.393 |
| 50*6 | 4.465 | 90*8 | 10.946 | 160*10 | 24.729 |
| 60*5 | 4.52 | 90*10 | 13.476 | 160*12 | 29.391 |
| 60*6 | 5.42 | 90*12 | 15.94 | 160*14 | 33.987 |
| 63*5 | 4.822 | 100*6 | 9.366 | 160*16 | 38.518 |
| 63*6 | 5.721 | 100*7 | 10.83 | 180*12 | 33.159 |
| 63*8 | 7.469 | 100*8 | 12.276 | 180*14 | 38.518 |
| 63*10 | 9.151 | 100*10 | 15.12 | 180*16 | 43.542 |
| 70*5 | 5.397 | 100*12 | 20.611 | 180*18 | 48.634 |
| 70*6 | 6.406 | 100*16 | 23.257 | 200*14 | 42.894 |
| 70*7 | 7.398 | 110*7 | 11.928 | 200*16 | 48.68 |
| 70*8 | 8.373 | 110*8 | 13.532 | 200*18 | 54.401 |
| 75*5 | 5.818 | 110*10 | 16.69 | 200*20 | 60.056 |
| 75*6 | 6.905 | 110*12 | 19.782 | ||
| Unequal Angle(A*T) | |||||
| Size (Mm) | Theoretical Weight (Kg/M) | Size (Mm) | Theoretical Weight (Kg/M) | Size (Mm) | Theoretical Weight (Kg/M) |
| 25*16*3 | 0.912 | 75*50*8 | 7.431 | 125*80*7 | 11.066 |
| 32*20*3 | 1.171 | 75*50*10 | 9.098 | 125*80*8 | 12.551 |
| 32*20*4 | 1.522 | 80*50*5 | 5.005 | 125*80*10 | 15.474 |
| 40*25*3 | 1.484 | 80*50*6 | 5.935 | 125*80*12 | 18.33 |
| 40*25*4 | 1.936 | 80*50*7 | 6.848 | 140*90*8 | 14.1 |
| 45*28*3 | 1.687 | 80*50*8 | 7.745 | 140*90*10 | 17.475 |
| 45*28*4 | 2.203 | 90*56*5 | 5.661 | 140*90*12 | 20.724 |
| 50*32*3 | 1.908 | 90*56*6 | 6.717 | 140*90*14 | 23.908 |
| 50*32*4 | 2.494 | 90*56*8 | 8.779 | 160*100*10 | 19.872 |
| 56*36*3 | 2.153 | 100*63*7 | 8.722 | 160*100*14 | 27.274 |
| 56*36*4 | 2.818 | 100*63*8 | 9.878 | 160*100*16 | 30.853 |
| 56*396*5 | 3.466 | 100*63*10 | 12.142 | 180*110*10 | 22.273 |
| 63*40*4 | 3.185 | 100*80*6 | 8.35 | 180*110*12 | 26.464 |
| 63*40*5 | 3.92 | 100*80*7 | 9.656 | 180*110*14 | 30.589 |
| 63*40*6 | 4.638 | 100*80*8 | 10.946 | 180*110*16 | 34.649 |
| 70*45*5 | 4.403 | 100*80*10 | 13.476 | 200*125*12 | 29.761 |
| 70*45*6 | 5.218 | 110*70*6 | 8.35 | 200*125*14 | 34.436 |
| 70*45*7 | 6.011 | 110*70*7 | 9.656 | 200*125*16 | 39.045 |
| 75*50*5 | 4.808 | 110*70*8 | 10.946 | 200*125*18 | 43.588 |
| 75*50*6 | 5.699 | 110*70*10 | 13.476 | ||
Feature:
1. Weldability,
2. Plastic deformation properties
3. Certain mechanical strength
4. Rust-resistence if use stainless steel or do paiting , galvanizing and anti-corrosion technology
FAQ:
1. Q: Are you trading company or manufacturer ?
A: We are manufacturer.
2. Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4. Q: What is your terms of payment ?
A: Payment<=1000USD, 50% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.or negotiable.
